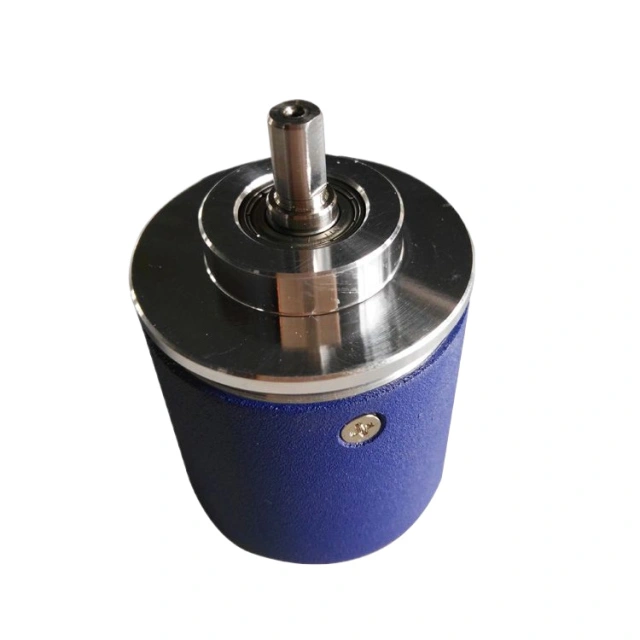

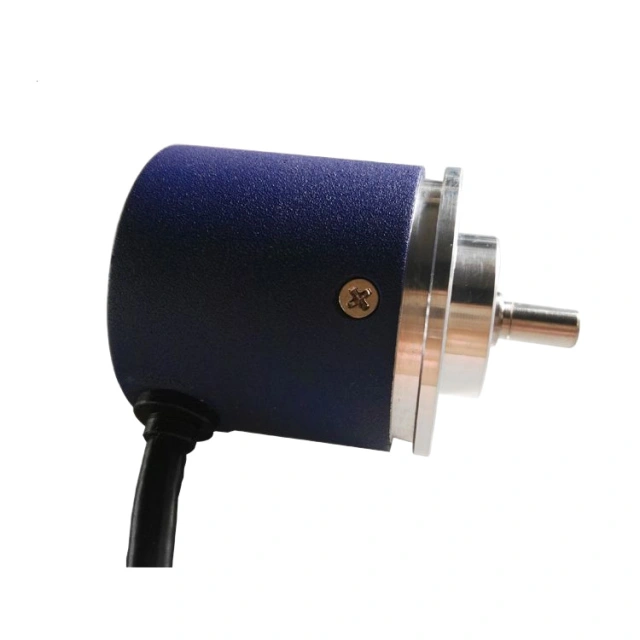

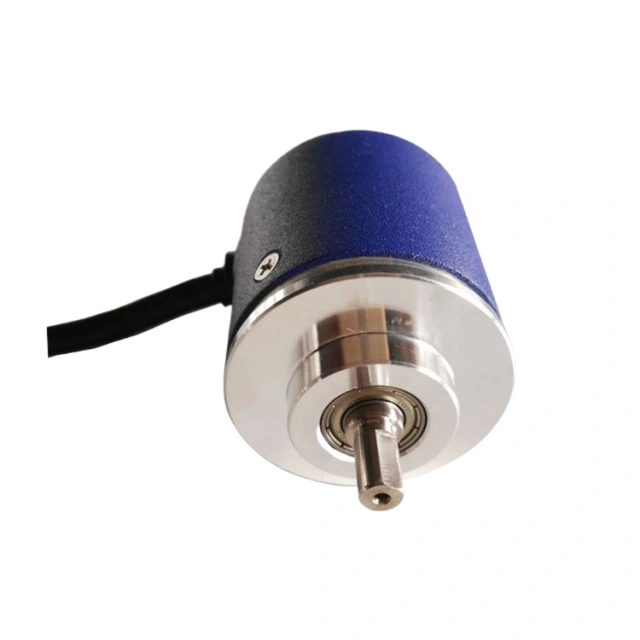

Turret Encoder RFA42
Turret Encoder
This absolute photoelectric encoder can measure displacement, and output natural binary code. Which is widely used in automatic measurement and control system.
Small volume, light weight, resistance to shock and vibration characteristics, strong anti-interference ability etc
Optoelectronic devices with high reliability, long life, strong anti-interference ability, wide service temperature etc..
Specification parameters
| Model | RFA42.1S6 |
| Product Type | Absolute Solid Shaft Encoder (S: Solid Shaft) |
| Outer Diameter | 42mm |
| Shaft Diameter | 6 - 8mm |
| Supply Voltage | DC12 - 30V |
| Output Form | Voltage Output (E); Open Collector Output |
| Output Code System | Natural Binary |
| Response Frequency | 5 kHz |
| Maximum Speed | 5000 r/min |
| Maximum Radial/Axial Load | 20 N / 10 N |
| Operating Temperature | -20°C ~ +85°C |
| Protection Rating | IP54 |
| Number of Stations | 6, 8, 10, 12 |
