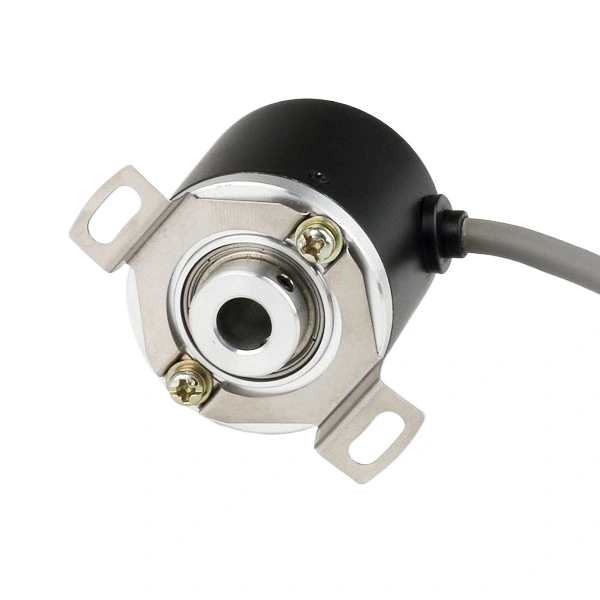

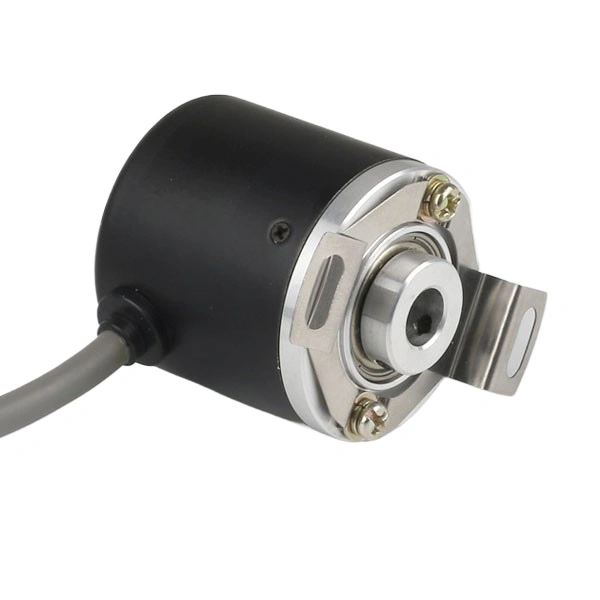

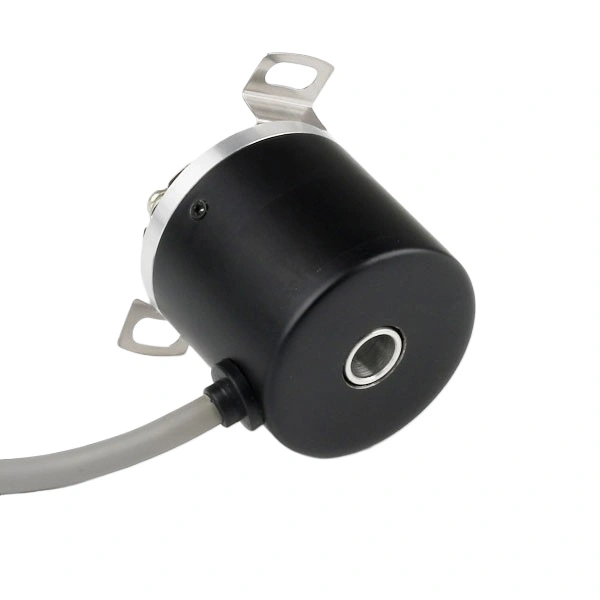

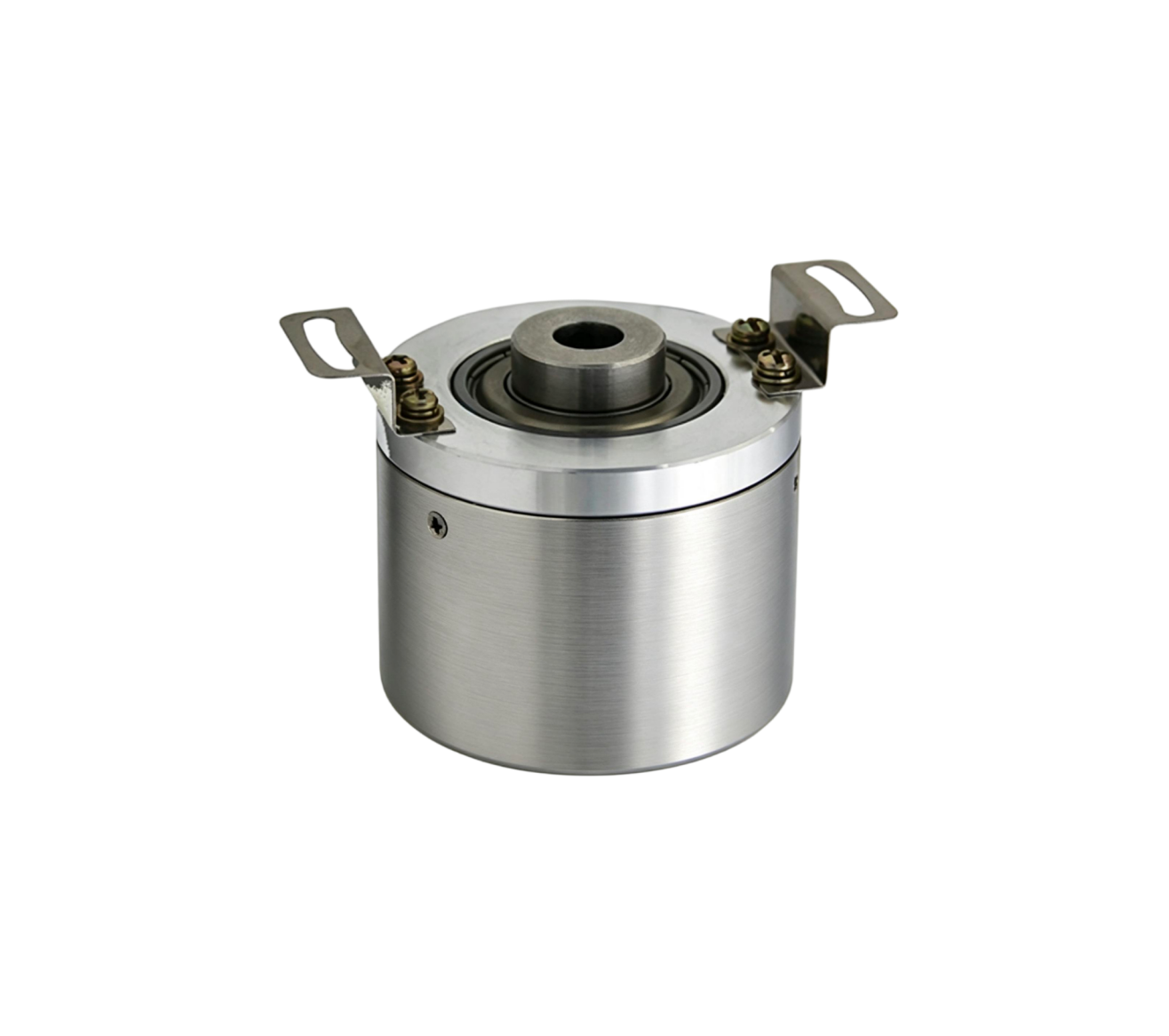

RCC38H
Blind Hole Encoder
RCC38H is widely used to control the speed and position of CNC machines such as embroidery machine.
Small outer diameter of 38mm, shaft hole 6/8mm optional, cable is divided into two kinds of radial output and axial output. Rugged construction, high reliability, strong anti-jamming performance, long service life.
Specification parameters
| Model | RCC38H6 |
| Product Type | Semi - hollow Shaft Incremental Encoder |
| Outer Diameter | 38mm |
| Shaft Diameter | 6mm;8mm |
| Resolution | 30, 60, 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000; (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 30N/20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP54 |
