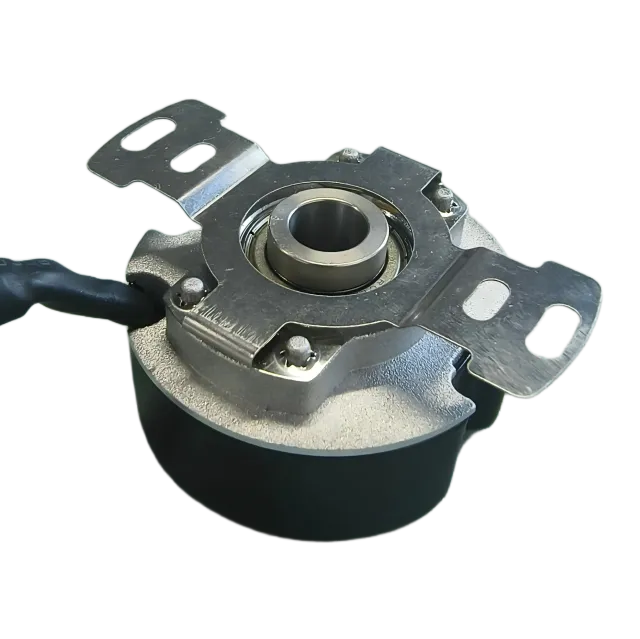

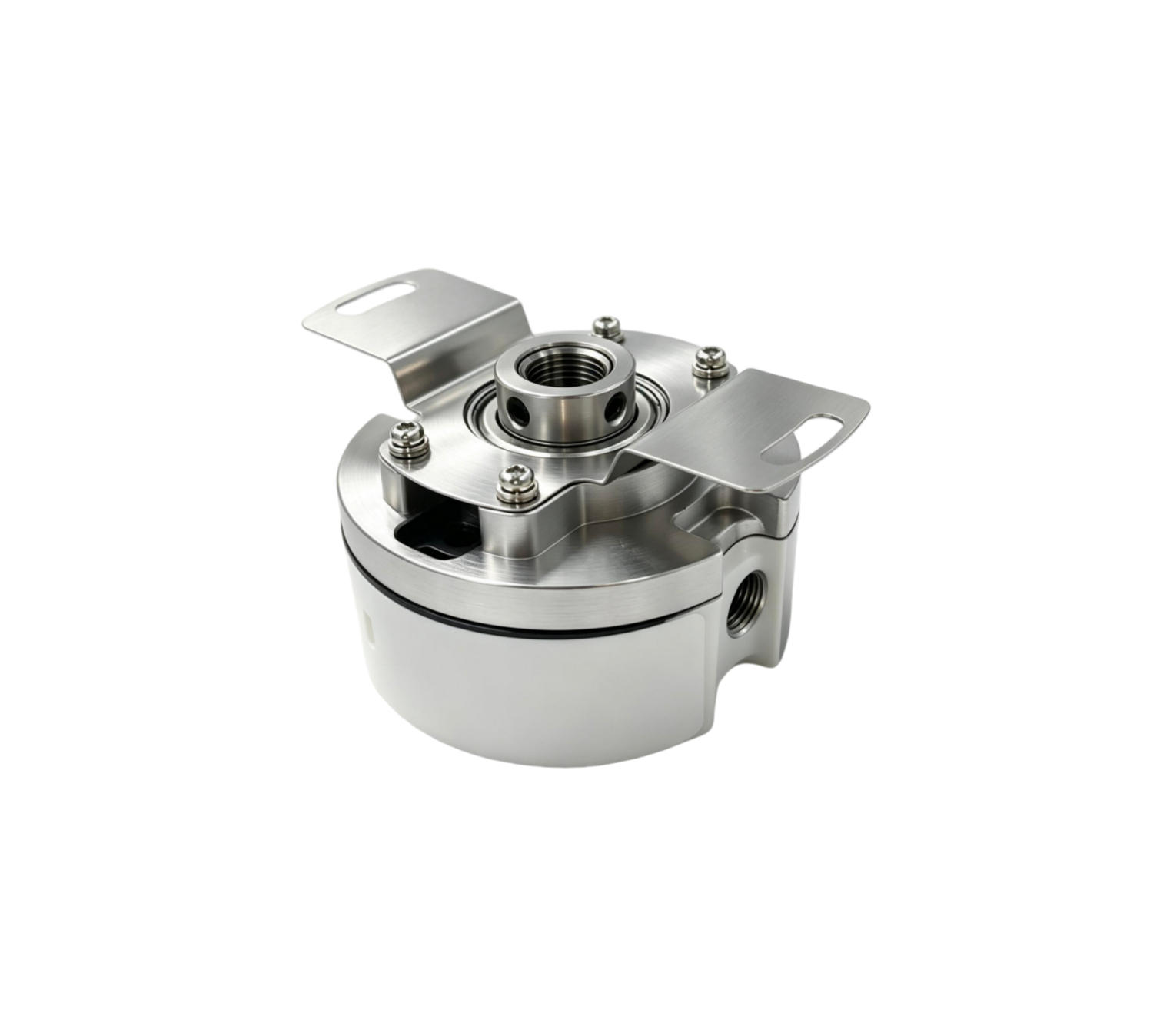

Intergrated RAA48
Absolute Optical Encoder
Integrated Transmissive Absolute Photoelectric Encoder OD48mm
Specification parameters
| Model | Basic：RAA48; With Temp Sensor: RTA48 |
| Outer Diameter | ∅48mm |
| Shaft Diameter | φ9 Taper (1:10) / φ8 Straight / φ6 Straight (Custom for Mass Order) |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Plate Spring | Models A, B, C, D available (refer to the catalog) |
| Communication Interface | RS485 (SSI, BISS Optional) |
| Baud rate | 2.5MHz ；5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication Code System | Positive Logic Binary Code |
| Resolution-Single-Turn | 23bit (17bit, 25bit Optional) |
| Resolution-Multi-Turn | 16bit |
| Accuracy | > 30″ |
| Operating Speed | Default ≤6000rpm; High Speed (6000 - 12000rpm) |
| Operating Temperature | -20°-100° |
| Operating Humidity | ＜90% RH（no condensation） |
| Protection Class | IP54 (motor end cover seal protection） |
