GCA01

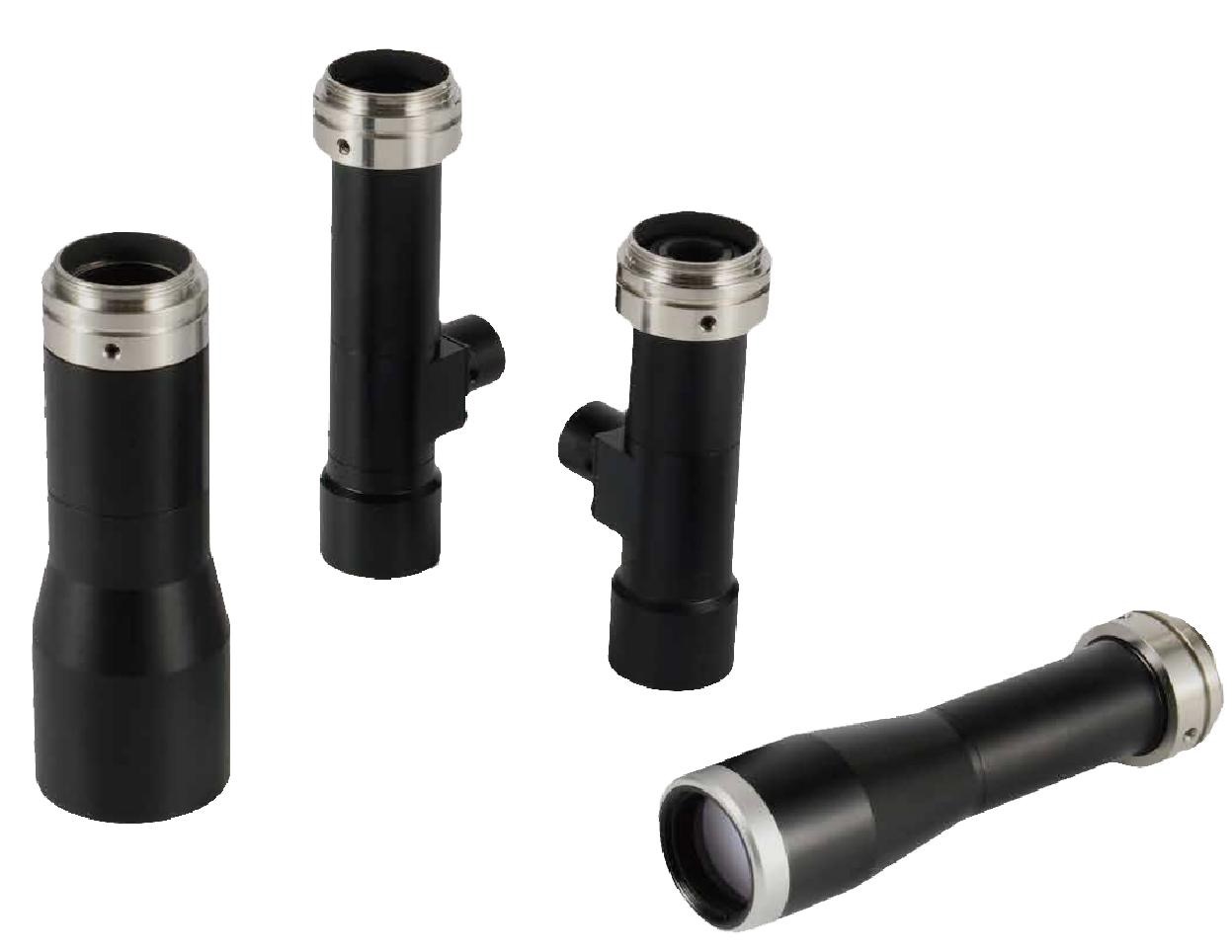

High-Resolution Telecentric Lens

Adopts object-side telecentric design to ensure measurement accuracy. Utilizes high magnification and large aperture to achieve ultra-high resolution, up to 210 lp/mm. The entire series has a Working Wavelength of 65mm and is compatible with 2/3-inch industrial cameras with over one million pixels with C-mount. It is suitable for high-precision defect detection in workpieces.

Message consultation Business Consulting
Specification parameters
ModelOptical ConfigurationMagnificationWorking WavelengthObject Space FOVImage Space FOVDOVF/#FOV（H×V）1/3”FOV（H×V）2/3”
FC-M05X110Double Telecentric0.511022114.3F9.69.6X7.216.9X14.14
FC-M05X110DDouble Telecentric0.511022114.3F9.69.6X7.216.9X14.14
FC-M08X110Object Telecentric Lenses0.811013.75111.7F106X4.510.56X8.84
FC-M08X110DObject Telecentric Lenses0.811013.75111.7F106X4.510.56X8.84
FC-M1X110Object Telecentric Lenses111011111.2F11.14.8X3.68.45X7.07
FC-M1X110DObject Telecentric Lenses111011111.2F11.14.8X3.68.45X7.07
FC-M1.5X110BObject Telecentric Lenses1.51107.3110.59F11.83.2X2.45.63X4.71
FC-M1.5X110DBObject Telecentric Lenses1.51107.3110.59F11.83.2X2.45.63X4.71
FC-M2X110DBObject Telecentric Lenses21105.5110.37F13.52.4X1.84.23X3.54
FC-M2X110BObject Telecentric Lenses2110110110.37F13.52.4X1.84.23X3.54
FC-M3X110DObject Telecentric Lenses31103.7110.22F18.21.6X1.22.82X2.36
FC-M3X110Object Telecentric Lenses31103.73.70.22F18.21.6X1.22.82X2.36
FC-M4X110DObject Telecentric Lenses41102.8110.13F22.11.2X0.92.11X1.77
FC-M4X110Object Telecentric Lenses41102.8110.13F22.11.2X0.92.11X1.77
FC-M6X110Object Telecentric Lenses61101.8110.09F33.20.8X0.61.41X1.18
FC-M6X110DObject Telecentric Lenses61101.8110.09F33.20.8X0.61.41X1.18
