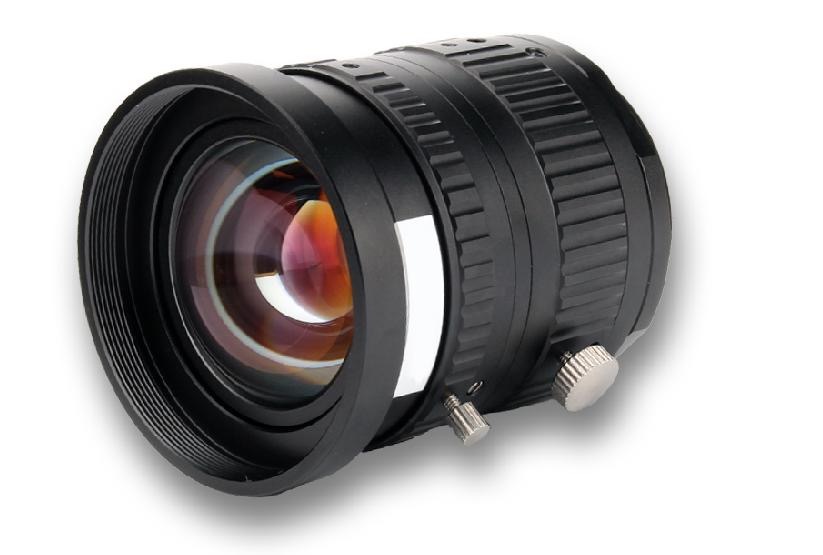

4K Line Scan Lens
Designed specifically for small line scan cameras with selectable standard focal lengths and magnifications that cover 0.02x to 0.33x V-Mount, flexible compatibility with different interface cameras, suitable for print and packaging inspection.
Specification parameters
| Model | Focal Length | Magnification | Sensor size | F/# | Distrotion | Working Wavelength | Mount |
| FL200470M42 | 20mm | 0.0358X | φ30 | 4.5-C | 0.20% | 557.4 | M42xP1 |
| FL250470M42 | 25mm | 0.121X | φ32 | 2.8-16 | 0.60% | 200 | M42xP1 |
| FL290470VM | 29mm | 0.1X | φ30 | 4.0-C | 0.10% | 299.7 | V-Mount (φ42.5) |
| FL350470VM | 35mm | 0.08X | φ30 | 4.5-16 | <0.01% | 508.49 | V-Mount (φ38) |
| FL400470VM | 40mm | 0.1X | φ43.2 | 2.8-22 | 0.50% | 429.9 | V-Mount (φ38) |
| FL200470M42N | 20mm | 0.038X | φ30 | 3.5-16 | <0.50% | 500 | M42xP1 |
| FL280470M42 | 28mm | 0.05X | φ30 | 2.8-16 | <0.30% | 500 | M42xP1 |
| FL350470M42 | 35mm | 0.071X | φ30 | 2.8-16 | <0.20% | 500 | M42xP1 |
| FL500470M42 | 50mm | 0.11X | φ30 | 2.8-16 | <0.20% | 500 | M42xP1 |
| FL600470M42 | 60mm | 0.137X | φ30 | 2.8-16 | <0.25% | 500 | M42xP1 |
| FL800470M42 | 80mm | 0.177X | φ30 | 2.8-16 | <0.20% | 500 | M42xP1 |
