RLS

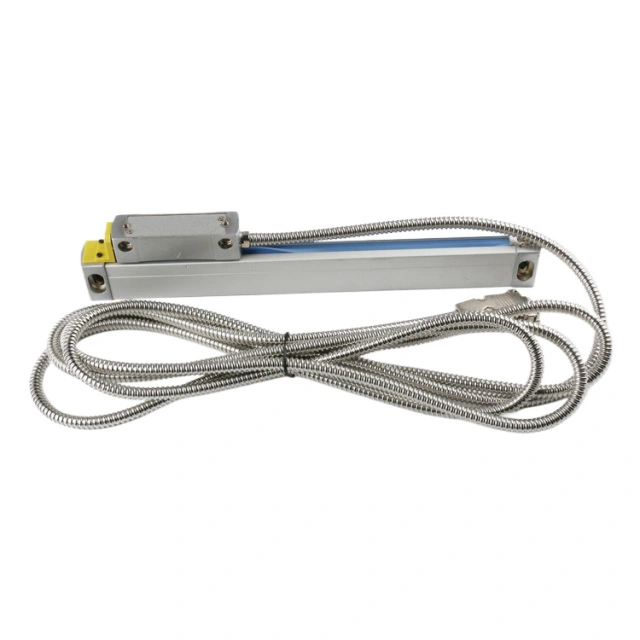

Incremental Linear Grating Scale
Optical linear scales series RLS are accurate and reliable; thanks to their reduced dimensions they can be applied even on small-sized machine tools (millers, lathes, grinders, spark erosion machines).
Sealed Sensor ensures the reliable performance and easy installation.High resolutions up to 1um.
Specification parameters
| Model | RLS Incremental Enclosed Linear Grating Ruler |
| Measurement | 1000 - 3000 mm |
| Resolution | 5um / 1um |
| Supply Voltage | 5V; 8-26V |
| Signal Waveform | TTL |
| Output Signal | Voltage output; Line Driver output |
| Reference Mark | Every 100mm |
| Plug | 9Pins Computer; 7 Pins Aviation |
| Operating Temperature | -20～85℃ |
| Protection Class | IP53 |
