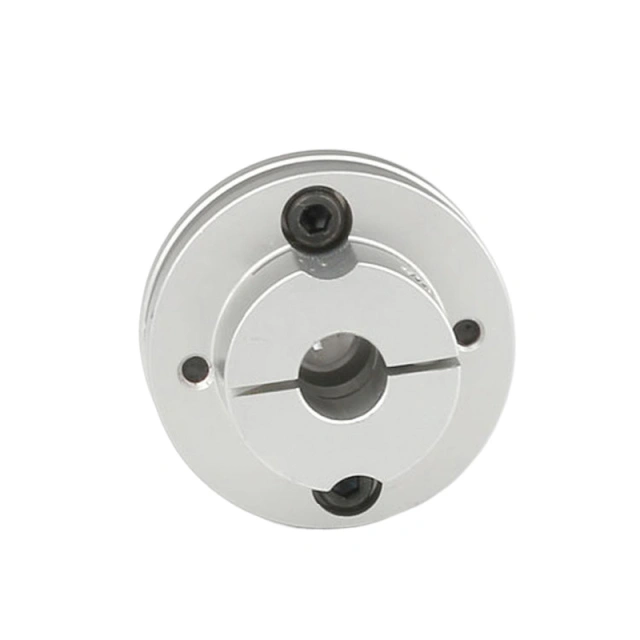

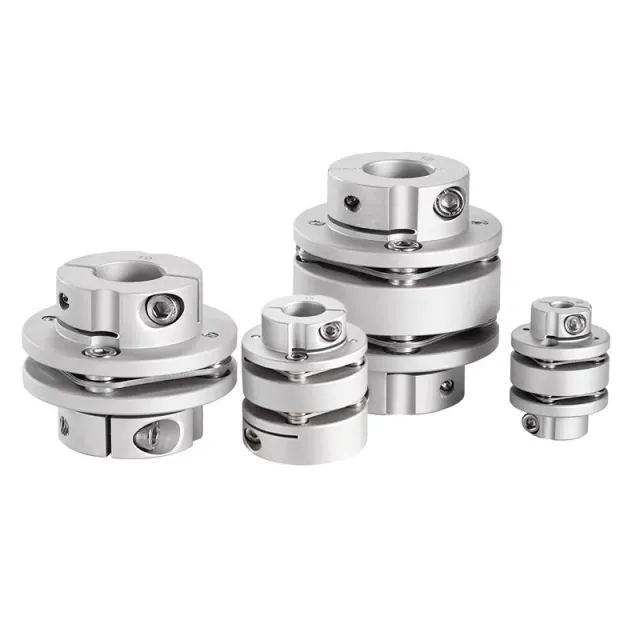

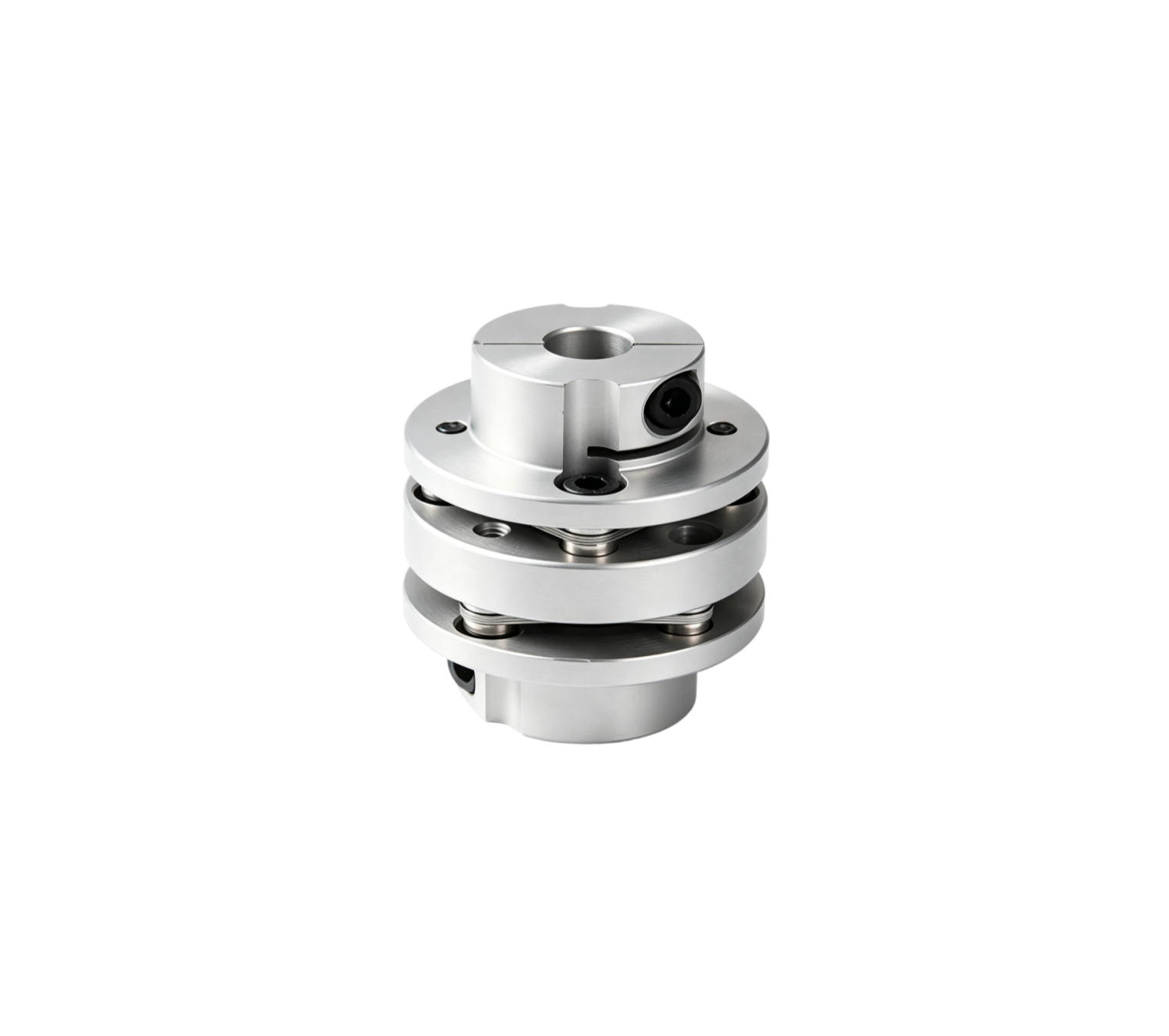

Coupling RD2-AD
Specification parameters
| Step - type Double Diaphragm Clamp Coupling | |||||
| Model | Flange OD (mm) | Shaft Dia Range (mm) | Total Length (mm) | Max Torque (N·m) | Max Speed (min⁻¹) |
| RD2 - 34AD | 34 | 5～10 | 37.8 | 4 | 18000 |
| RD2 - 39AD | 39 | 7～13 | 48 | 6 | 16000 |
| RD2 - 44AD | 44 | 8～15 | 48 | 10 | 14000 |
| RD2 - 56AD | 56 | 10～20 | 59.8 | 25 | 11000 |
| RD2 - 68AD | 68 | 12～25 | 73.3 | 60 | 9000 |
| RD2 - 82AD | 82 | 20～30 | 98 | 100 | 7000 |
