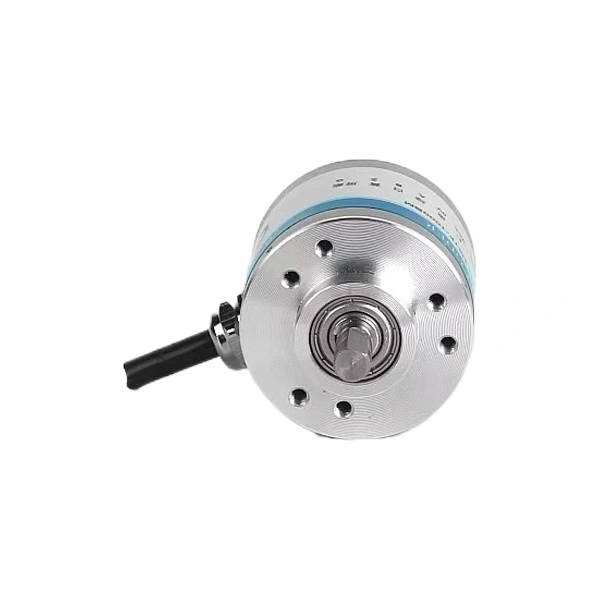

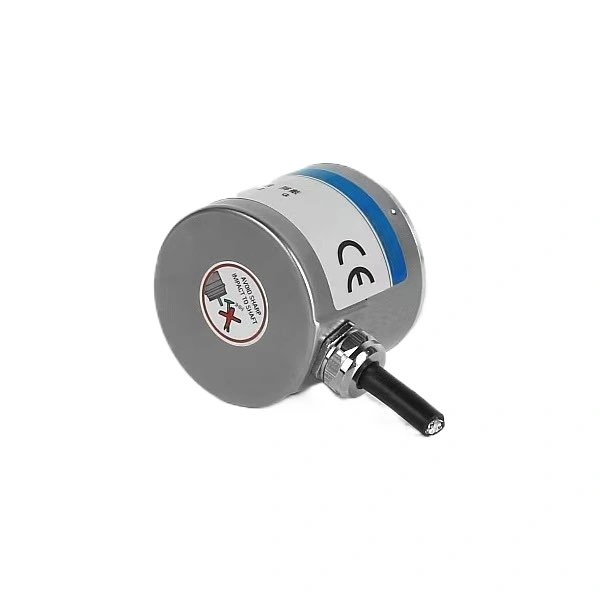

RCC38S
Solid Shaft Encoder
RCC38S6 is widely used in a variety of machinery industrial control, especially in the printing and packaging industry control applications.
The resolution can reach 80,000, taking into account the modern light industry requirements of small size, light weight and high precision.By changing the shaft length, it can be adapted to more application environments, and it is a cost-effective and preferred product.
Specification parameters
| Model | RCC38S6; DCC38S6 |
| Product Type | Solid-shaft Incremental Encoder |
| RCC: Common / DCC: Reinforced | |
| Outer Diameter | 38mm |
| Shaft Diameter | 6mm（Solid Shaft） |
| Resolution | 30, 60, 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 30N/20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | RCC: IP54 / DCC: IP65 |
