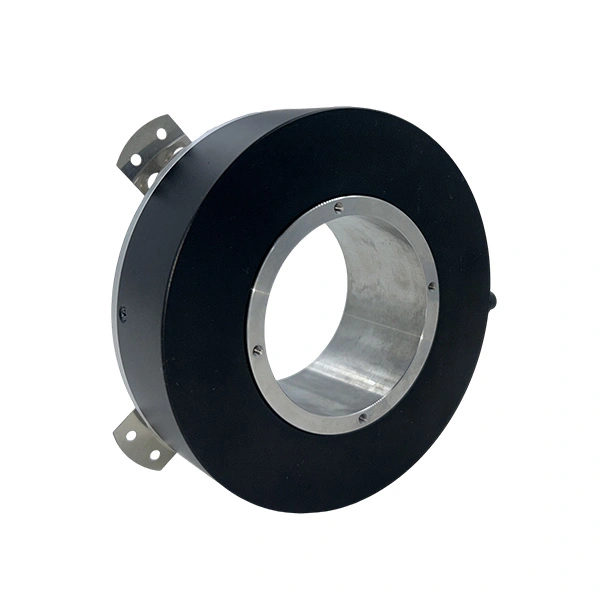

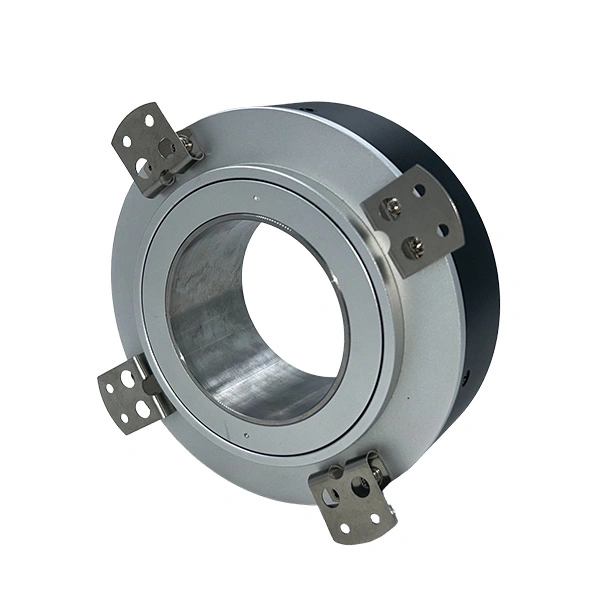

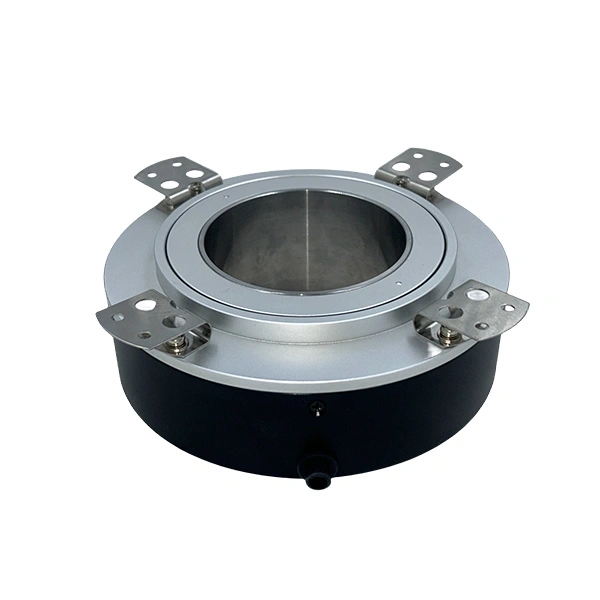

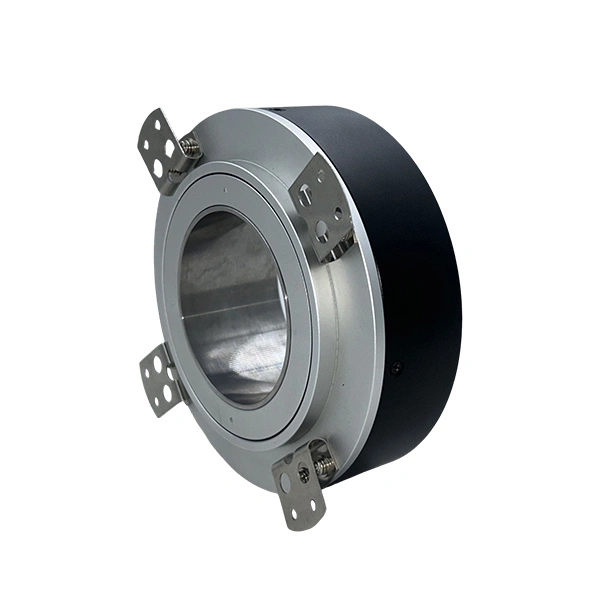

RAA130B60
Hollow Shaft Encoder
Specification parameters
| Basic Information | Model | RAA130B60 |
| Product Type | Photoelectric Single - turn Encoder | |
| Mechanical Parameters | Outer Diameter | 130mm |
| Shaft Diameter | 60mm （Hollow Shaft） | |
| Maximum Speed | 3000 r/min | |
| Shaft Load | Radial (≤40N) ; Axial (≤20N) | |
| Electrical Parameters | Resolution | 16-21 bit Single - turn |
| Supply Voltage | DC5V / DC10-30V | |
| Output Code | Binary Code / Gray Code | |
| Environmental Parameters | Operating Temperature | -40~65℃ |
| Protection Rating | IP54 | |
| Asynchronous Serial | Communication Protocol | RS422 / RS485 / RS232 |
| Communication Interface | Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS | |
| Baud Rate | 115200 / 57600 / 38400 / 19200 / 9600 / 4800 | |
| Update Rate (Hz) | 2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20 | |
| Synchronous Serial | Communication Protocol | SSI / CANopen / BiSS - C |
