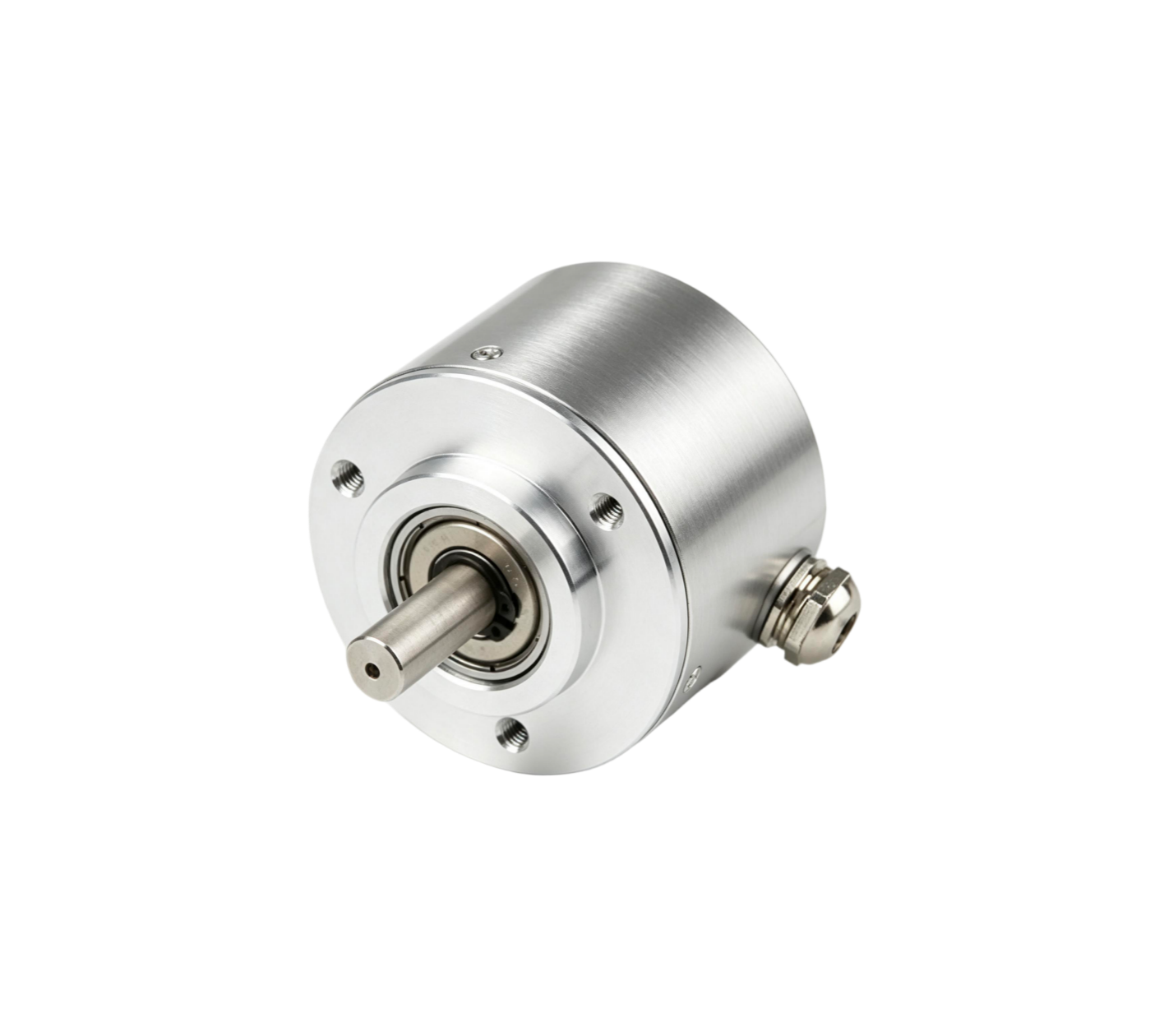

RCC40S
Solid Shaft Encoder
RCC40S6 is widely used in various mechanical industrial control,especially in the printing and packaging industry.
Resolution up to 5000,taking into account the small size, light weight and high precision ofmodern industrial requirements. Through the axial length changes,more applications can be adapted to the environment, is the preferred higher quality and low cost products
Specification parameters
| Model | RCC40S6 |
| Product Type | Solid-shaft Incremental Encoder |
| Outer Diameter | 40mm |
| Shaft Diameter | 6mm（Solid Shaft） |
| Resolution | 30, 60, 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 30N/20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP54 |
