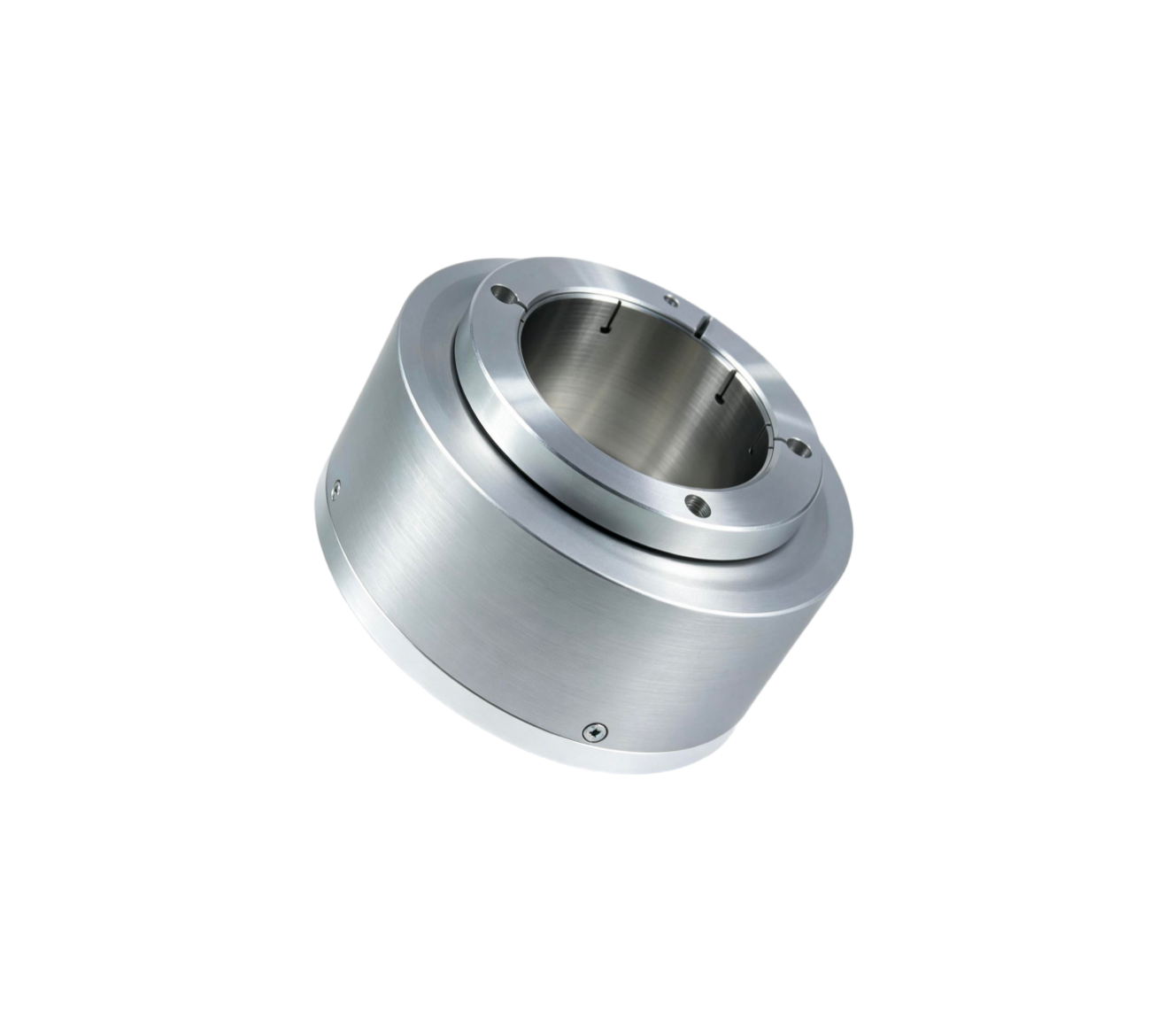

REC118B60
Full Hollow Shaft Incremental Encoder
Specification parameters
| Model | REC118B60 |
| Product Type | Clamp Hollow Shaft Rotary Incremental Encoder |
| Outer Diameter | 118mm |
| Shaft Diameter | 45-60mm |
| Resolution | 120, 200, 360, 500, 512, 600, 720, 1000, 1024, 1200, 2048, 2500, 4096, 5000, 7200 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 4000r/min |
| Maximum Radial/Axial Load | 40N / 20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP52 |
