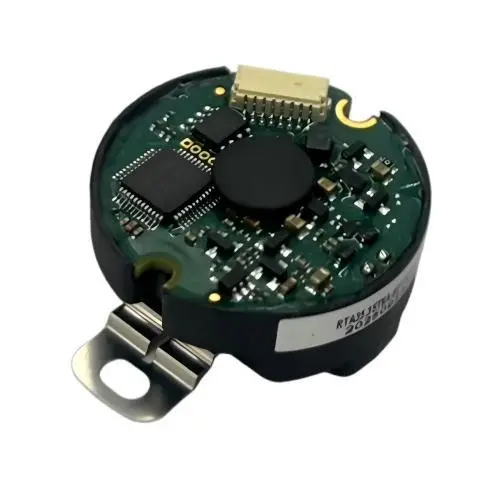

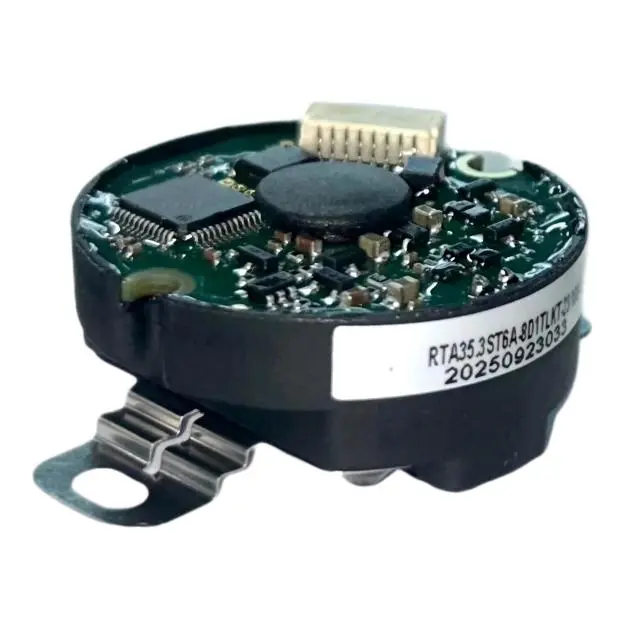

Intergrated RAA35S
Absolute Optical Encoder
Integrated Transmissive Absolute Photoelectric Encoder With Injection-Molded Housing OD35mm
Specification parameters
| Parameter | Specification |
|---|---|
| Part Number | RAA35ST6-8D1TLKT-17/16B-ARTA35ST6-8D1TLKT-17/16B-A（With temperature sensor） |
| Single turn resolution | 17bit |
| Multi turn resolution | 16bit |
| Communication Interface | RS485 |
| Supply voltage | 5V±0.25 |
| Battery voltage | 3.6V |
| Battery error generating voltage | 2.75V(±0.15v) |
| Battery alarm generating voltage | 3.1V(±0.15V) |
| Baud rate | 2.5MHZ(Max to 4MHZ) |
| Refresh rate | Max to 16K |
| Output code | Binary code |
| Fall time/Rise time | 100ms |
| Operating Temp. | -10℃~90℃ |
| Operating Humidity | 90%RH bellow（No condensation） |
| Storage Temp. | -20℃~100℃ |
| Storage humidity | 95%RH bellow（No condensation） |
| Shock | 980m/s²,11ms；3 times for each direction, total 18 times |
| Vibration | 10 to 55Hz，amplitude 1.5mm；55 to 2000Hz，98m/s²；2 hours for each axis, total 6 hours |
| Rotational speed | ≤6000rpm |
| Protection class | IP54 |
| Current consumption (multiple turns) | 85±5mA |
| Current consumption (single turn) | 75±5mA |
