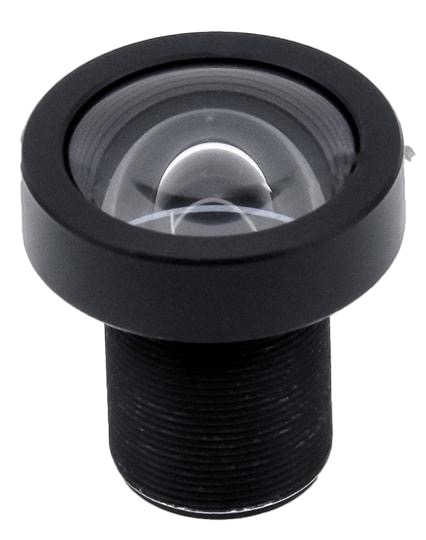

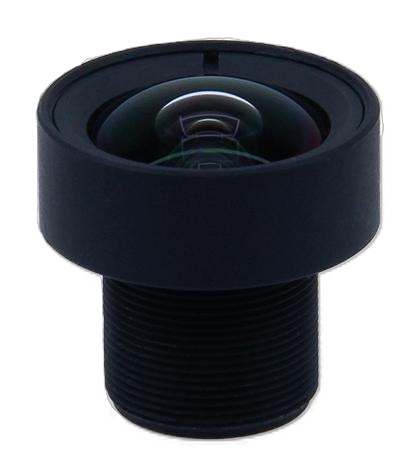

M12 Lens
This lens offers excellent optical performance with high edge brightness. It is suitable for applications in industrial inspection, barcode scanning, surveillance, video conferencing, and action cameras.
Specification parameters
| Model | Focal Length | Sensor size | F/# | FOV | Working Wavelength | Resolution |
| FA0312CS5 | 3.37mm | 1/2” | 2.8 | 86° ×70°（ 1/2") 70° ×50°(1/3") | 0.1m | 5MP |
| FA0618CS5 | 6mm | 1/1.8” | 2.8 | 60.6° ×46.6°（ 1/1.8") 42.4° ×32.4°(1/3") | 0.1m | 5MP |
| FA0818CS5 | 8mm | 1/1.8” | 2.8 | 47° ×35.6°（ 1/1.8") 32.3° ×24.6°(1/3") | 0.12m | 5MP |
| FA1218CS5 | 12mm | 1/1.8” | 2.8 | 32.8° ×24.5°（ 1/1.8") 22.2° × 16.7°(1/3") | 0.1m | 5MP |
| FA1618CS5 | 16mm | 1/1.8” | 2.8 | 24.4° × 18.4°（ 1/1.8") 17.1° × 12.3°(1/3") | 0.1m | 5MP |
| FA2518CS5 | 25mm | 1/1.8” | 2.8 | 15.6° × 11.5°（ 1/1.8") 10.5° ×7.8°(1/3") | 0.2m | 5MP |
