RLM

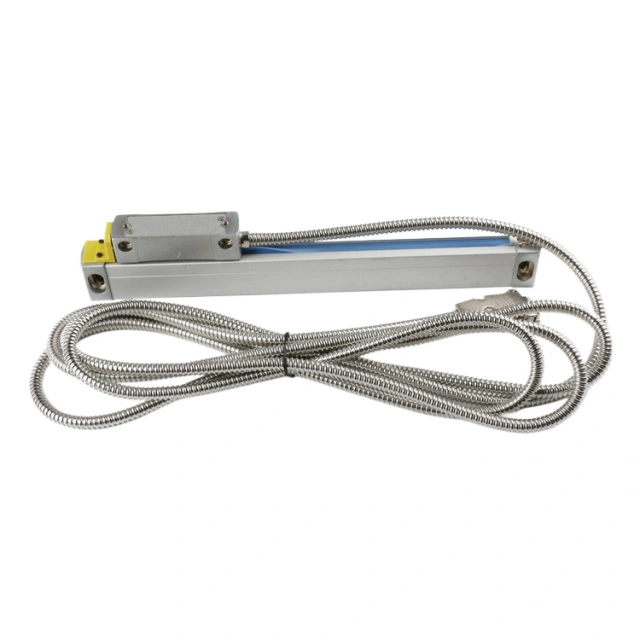

Incremental Linear Grating Scale
Optical linear scales series RLM are accurate and reliable; Measuring range from 1m to 3m.
Widely applied to kinds of machine tools (Metal cutting machines,millers, lathes, grinders, spark erosion machines,optical projectors ).Sealed Sensor ensures the reliable performance and easy installation.High resolutions up to 1um.
Specification parameters
| Model | RLM Incremental Enclosed Linear Grating Ruler |
| Measurement | 0-1000 mm |
| Resolution | 5um / 1um |
| Supply Voltage | 5V; 8-26V |
| Signal Waveform | TTL |
| Output Signal | Voltage output; Line Driver output |
| Reference Mark | Every 100mm |
| Plug | 9Pins Computer; 7 Pins Aviation |
| Operating Temperature | -20～85℃ |
| Protection Class | IP53 |
