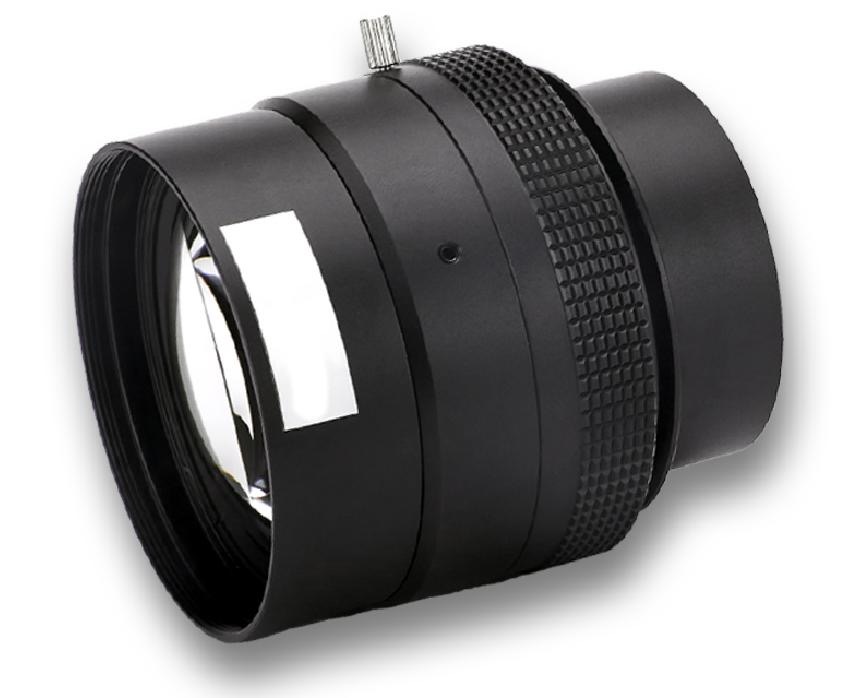

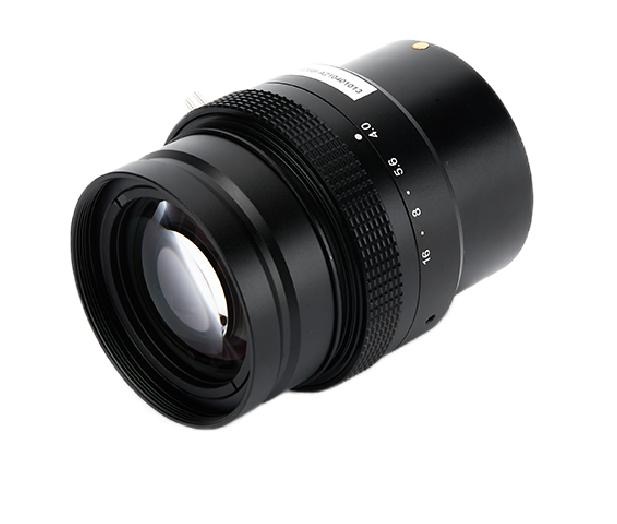

16K Line Scan Lens
Developed specifically for 16K 3.5μ ultra-high-resolution line scan cameras to achieve a resolution of 3.5μ. The lens's actual resolving magnification can reach 160 lp/mm, with a maximum image circle diameter of 66mm. It is compatible with 12K 5μ cameras, featuring optical distortion of less than 1 pixel and a high light transmission design reaching Fno 3.8.
Specification parameters
| Model | Focal Length | Magnification | Sensor size | F/# | Distrotion | Working Wavelength | Mount |
| FL951635VM | 95mm | 0.05X | φ62 | 4.0-16 | 0.01% | 1980.85 | V-Mount(φ56) |
| FL901635VM | 90mm | 0.1X | φ64 | 4.0-16 | 0.01% | 992.4 | V-Mount(φ56) |
| FL1141635VM | 114mm | 0.26X | φ66 | 3.8-16 | 0.01% | 497.85 | V-Mount(φ49) |
| FL1161635VM3 | 116mm | 0.33X | φ66 | 3.8-16 | 0.00% | 412 | V-Mount(φ49) |
| FL1161635VM4 | 116mm | 0.42X | φ66 | 3.8-16 | 0.01% | 339.74 | V-Mount(φ49) |
| FL1161635VM5 | 116mm | 0.5X | φ66 | 3.8-16 | 0.00% | 296.2 | V-Mount(φ49) |
| FL1161635VM6 | 116mm | 0.67X | φ66 | 3.8-16 | 0.10% | 237.4 | V-Mount(φ49) |
| FL1161635VM7 | 116mm | 0.7X | φ66 | 3.8-16 | 0% | 229.4 | V-Mount(φ49) |
| FL1001635VM | 100mm | 0.75X | φ66 | 3.8-16 | 0.00% | 220.8 | V-Mount(φ49) |
