CGNMH

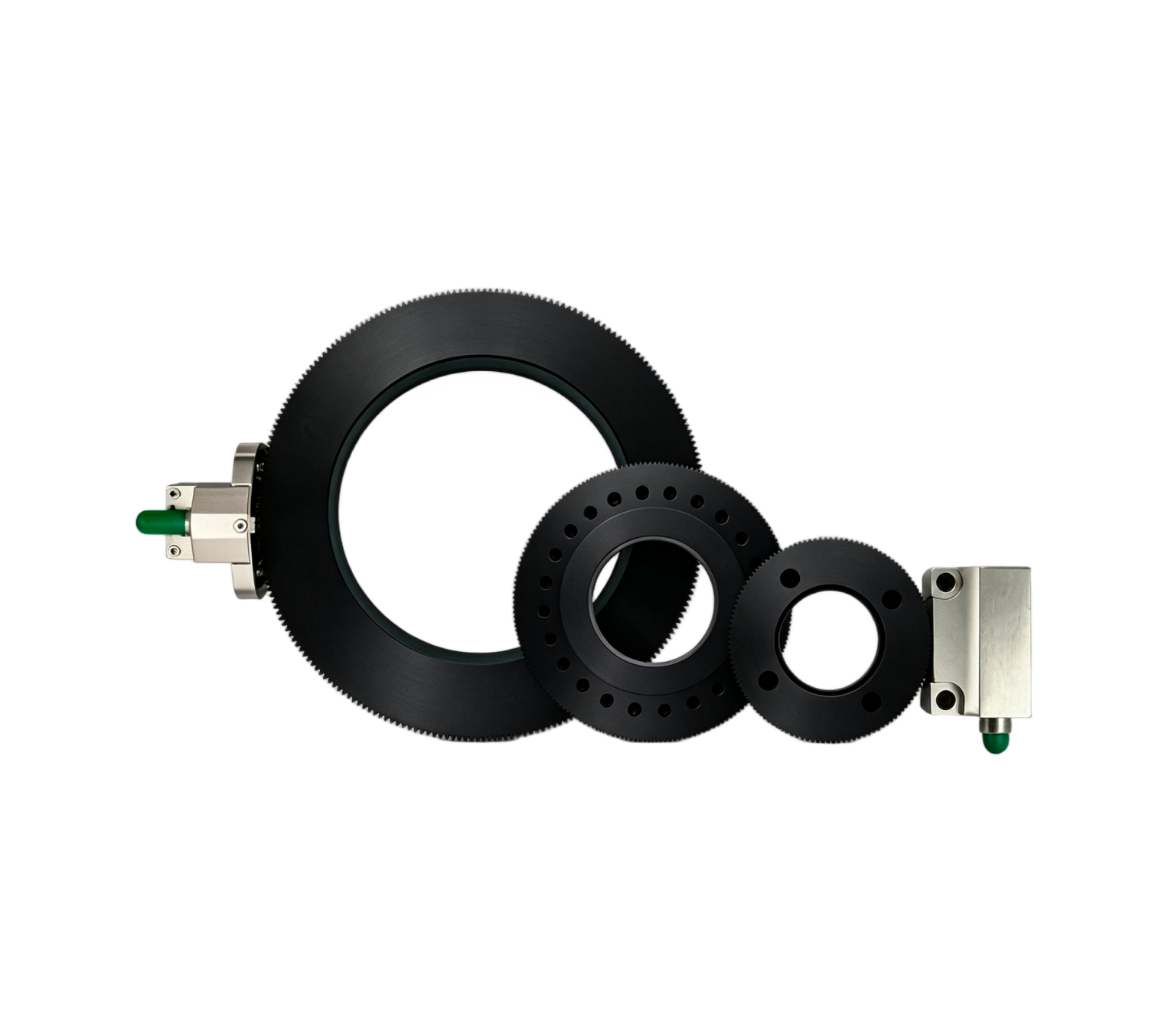

Gear Tooth Encoder
High precision rotary encoders are composed of a robust sensor unit and a high precision target wheel.
Compatible with a variety of controllers.The sensor chip features a post-signal automatic calibration chip.The output signal amplitude can be set to automatic control mode.Suitable for high-speed cutting applications.High-speed stability.
Specification parameters
| Model | CGNMH |
| Readhead | 23 type; 27 type |
| Inner diameter | 10 - 230mm |
| Teeth | no. 64 - 1024 |
| Interpolation factor | 1/2/4/8/10/16/20/25/32/50 |
| Supply Voltage | DC5V |
| Output signal analog | 1 vpp or TTL |
| Max. response frequency | 600KHz |
| Operating temperature | -30~120℃ |
| Protection class | IP68 |
