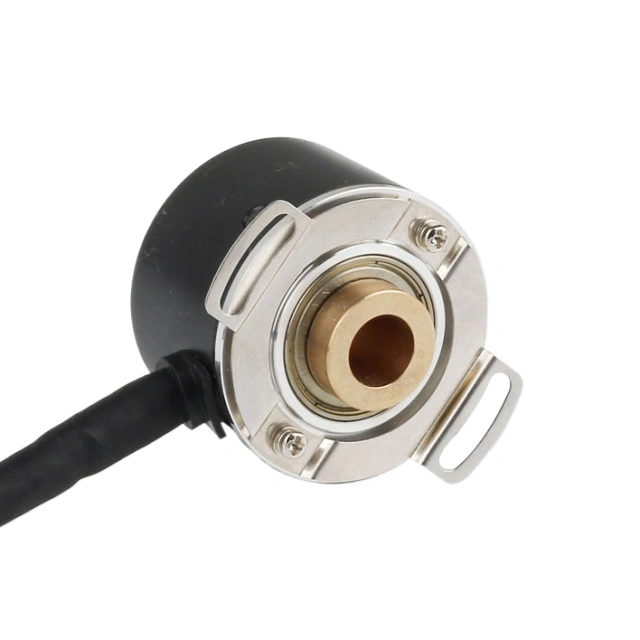

DVC37
Incremental Optical Encoder
Compact, slim design, high-precision,resolutions up 2500ppr.Straight and taper shaft are optional Import optoelectronic components, high anti-interference ability.
Specification parameters
| Model | DVC37V9 |
| Outer Diameter | ∅37mm |
| Shaft Diameter | ∅8mm、∅9mm (Taper and straight types are optional) |
| Supply Voltage | 5V±0.25 |
| Plate Spring | Models A, B, C, D, E available (refer to the catalog) |
| Electrical output type | Line Drive Output |
| Resolution | 2500ppr |
| Output Signals | A: A - phase single - channel output |
| B: Two - channel output with 90° phase difference | |
| M: Zero Position Signal | |
| Pole No | 4 poles； 6 poles ； 8 poles |
| Universal Rotating Speed | 8000rpm |
| Max Rotating Speed | 15000rpm |
| Breaking Strength of Shaft and Bearing | ≥650N |
| Max Response Frequency | 300kHz |
| Operating Temperature | -20°~+85℃ |
| Protection Class | IP50 |
