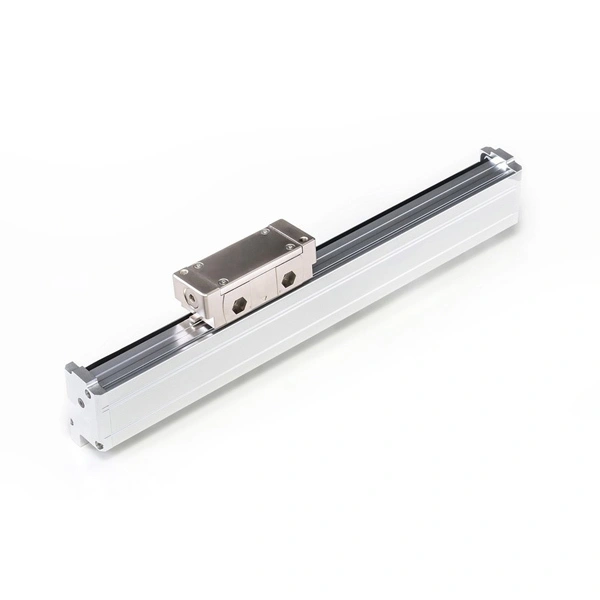

RLA100
Absolute Linear Grating Scale
RLA-100 Series Optical Linear Encoders offer precisemeasurements up to 3040 mm, supporting Biss-C,SSl,Fanuc, and Panasonic protocols for reliable positionfeedback, Achieving a remarkable accuracy of ±3um and state-of-the-art resolution down to 5nm, these encoders are ideal for precision applications infine machinery.
The Absolute Linear Grating Scale RLA-100 Series is a precision Linear Grating Scale designed for accurate position feedback up to 3040 mm. With ±3 µm accuracy and resolutions down to 5 nm, it supports SSI, BiSS-C, Fanuc and Mitsubishi interfaces for reliable measurement in CNC and automation systems.
Specification parameters
| Model | RLA100 Absolute Enclosed Linear Grating Ruler |
| Measurement | 140, 240, 340, 440, 540, 640, 740, 840, 940, 1040, 1140, 1240, 1340, 1440, 1540, 1640, 1740, 1840, 1940, 2040, 2140, 2240, 2340, 2440, 2540, 2640, 2740, 2840, 2940, 3040 (Unit: mm) |
| Accuracy | ±3μm; ±5μm |
| Pitch | 20μm |
| Resolution | 5nm; 10nm; 50nm; 100nm |
| Supply Voltage | 5V±5% |
| Electrical Output Interface | SSI |
| Biss - C | |
| Fanuc | |
| Panasonic | |
| Mitsubishi | |
| DRIVE - CLiQ | |
| Plug | DB9 pin; DB15 pin |
| Operating Temperature | 0～50℃ |
| Protection Class | IP53, with compressed air IP64 |
