Split RAMR47
Photo-Magnetic encoder

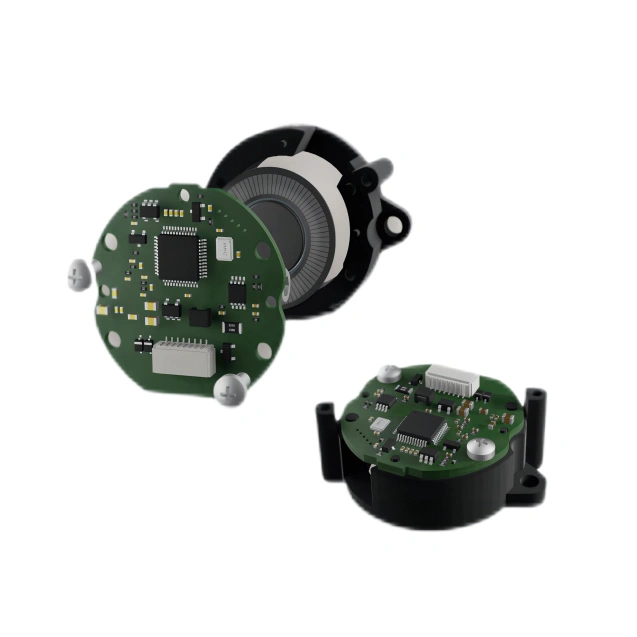

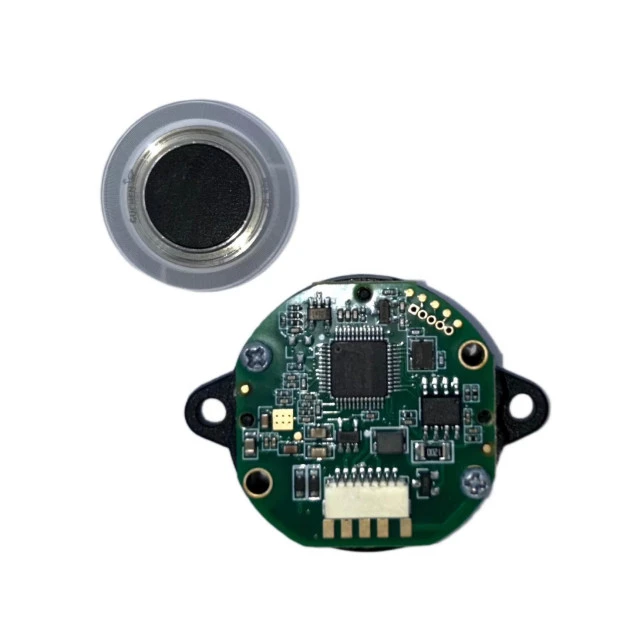

Split Reflective Absolute Photo-Magnetic Encoder OD47mm
Specification parameters
| Model | RAMR47 Absolute Photoelectric Reflective Split-type |
| Outer Diameter | ∅47mm |
| Shaft Diameter | ∅8mm |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Communication Interface | RS485 |
| Baud rate | 2.5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication Code System | Positive Logic Binary Code |
| Resolution-Single-Turn | 17bit (23bit Optional) |
| Resolution-Multi-Turn | 16bit |
| Operating Speed | ≤6000rpm |
