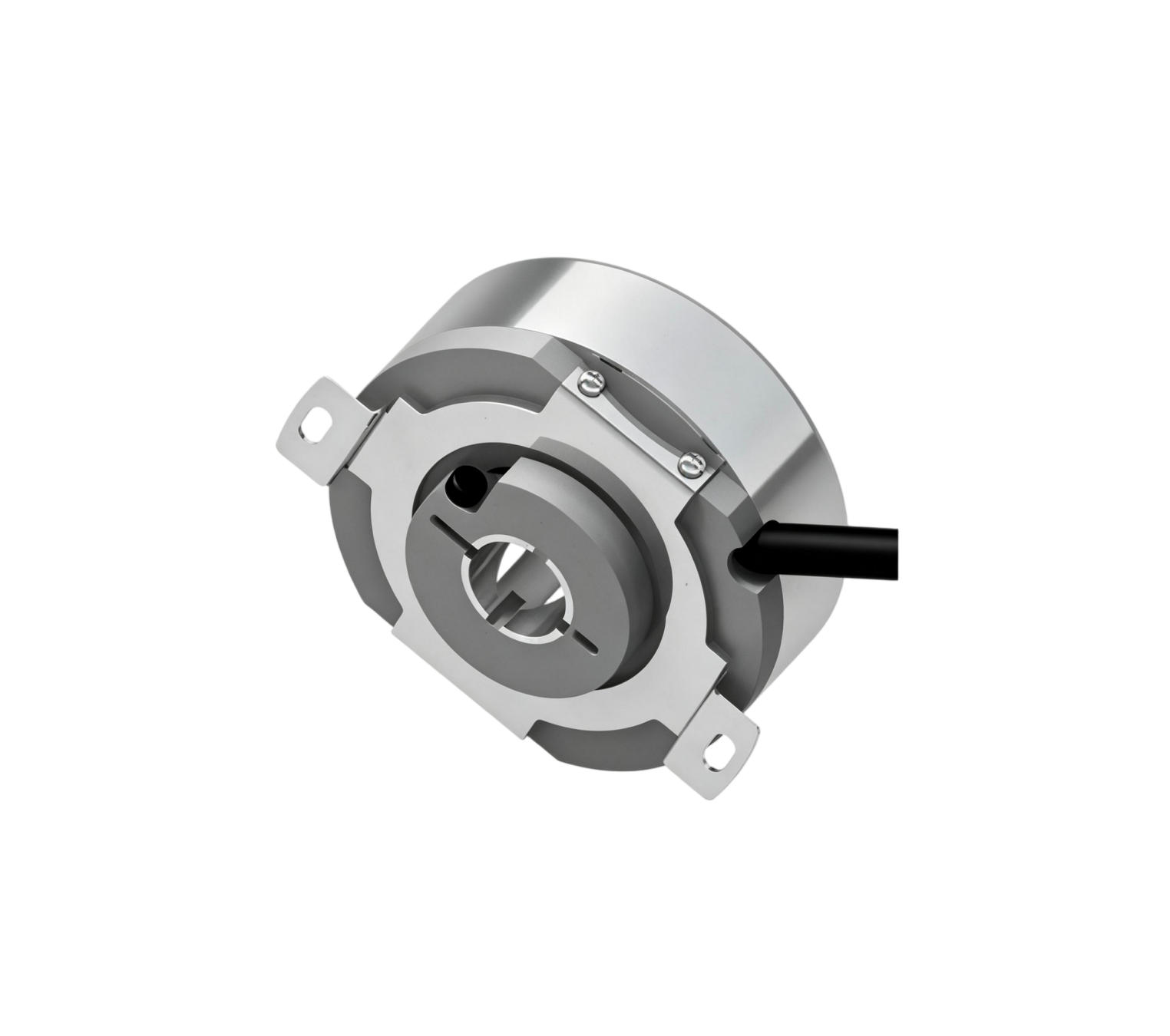

DVC58B13
Incremental Optical Encoder
Uniform mechanical dimensions, various electrical interfaces
• Simple installation , large mechanical tolerances
• Embedded labyrinth seal structure, suitable for high speed
• Ultra-thin size, all through-hole structure
• Independent core driver chip, national production
• Original engraved grating, self-produced
Specification parameters
| Model | DVC58B13 |
| Outer Diameter | ∅58mm |
| Shaft Diameter | ∅13mm |
| Supply Voltage | 5V±0.25 |
| Electrical output type | Line Drive Output |
| Resolution | 2048ppr |
| Output Signals | A: A - phase single - channel output |
| B: Two - channel output with 90° phase difference | |
| M: Zero Position Signal | |
| Pole No | 4 poles |
| Universal Rotating Speed | 6000rpm |
| Max Response Frequency | 300kHz |
| Operating temperature | -40°~+85℃ |
