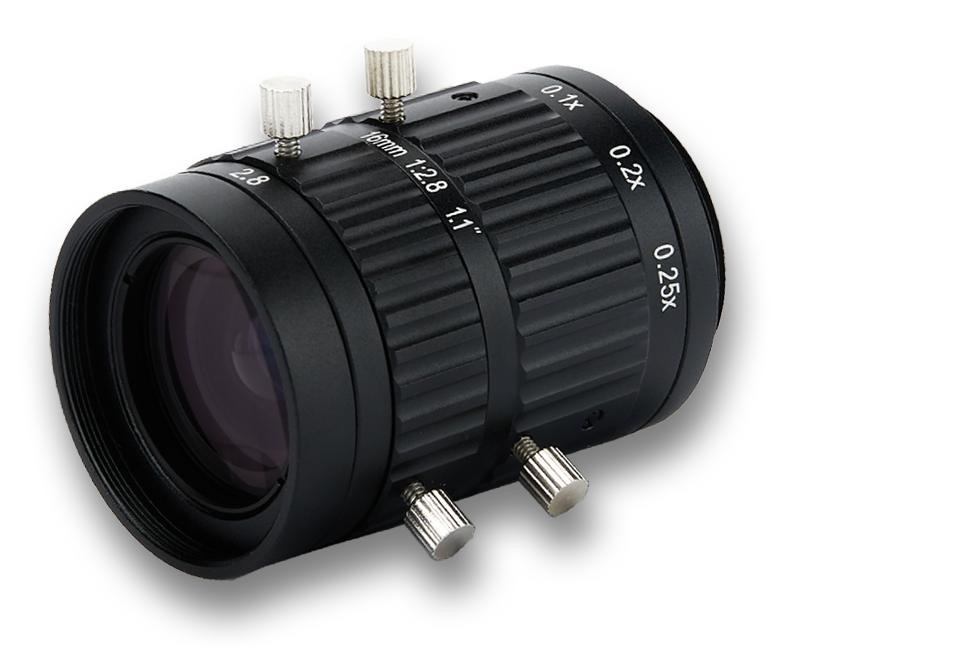

Macro Lens
With a resolution of 12 million high-definition pixels, this macro lens is designed for precise imaging at close distances. It features a large imaging area and can be paired with the IMX253LLR sensor. The zoom magnification range is from 0.03X to 0.8X, with low distortion <0.33%, high contrast, and minimal distortion.
Specification parameters
| Model | Focal Length | Sensor size | F/# | Distrotion | Magnification | Working Wavelength | Mount | Resolution |
| FA1611CW12 | 16mm | 1.1” | 2.8-16 | <0.33% | -0.25x~-0.03x | 52-546 | C-Mount | 12MP |
| FA2511CW12 | 25mm | 1.1” | 2.8-16 | <0.07% | -0.4x~-0.1x | 65-260.4 | C-Mount | 12MP |
| FA3511CW12 | 35mm | 1.1” | 2.8-16 | <0.05% | -0.7x~-0.25x | 59-150 | C-Mount | 12MP |
| FA5011CW12 | 50mm | 1.1” | 2.8-16 | <0.05% | -0.8x~-0.5x | 95.4-132.4 | C-Mount | 12MP |
| FA7511CW12 | 75mm | 1.1” | 3.8-16 | <0.05% | -0.38x~-0.18x | 257-471 | C-Mount | 12MP |
