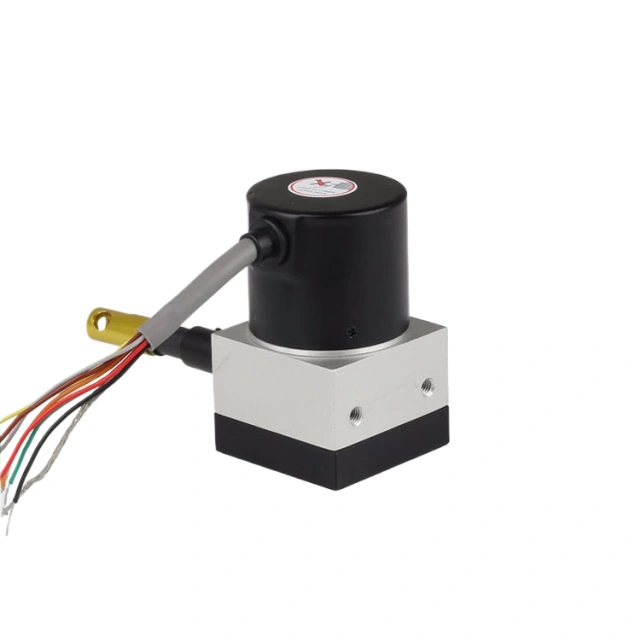

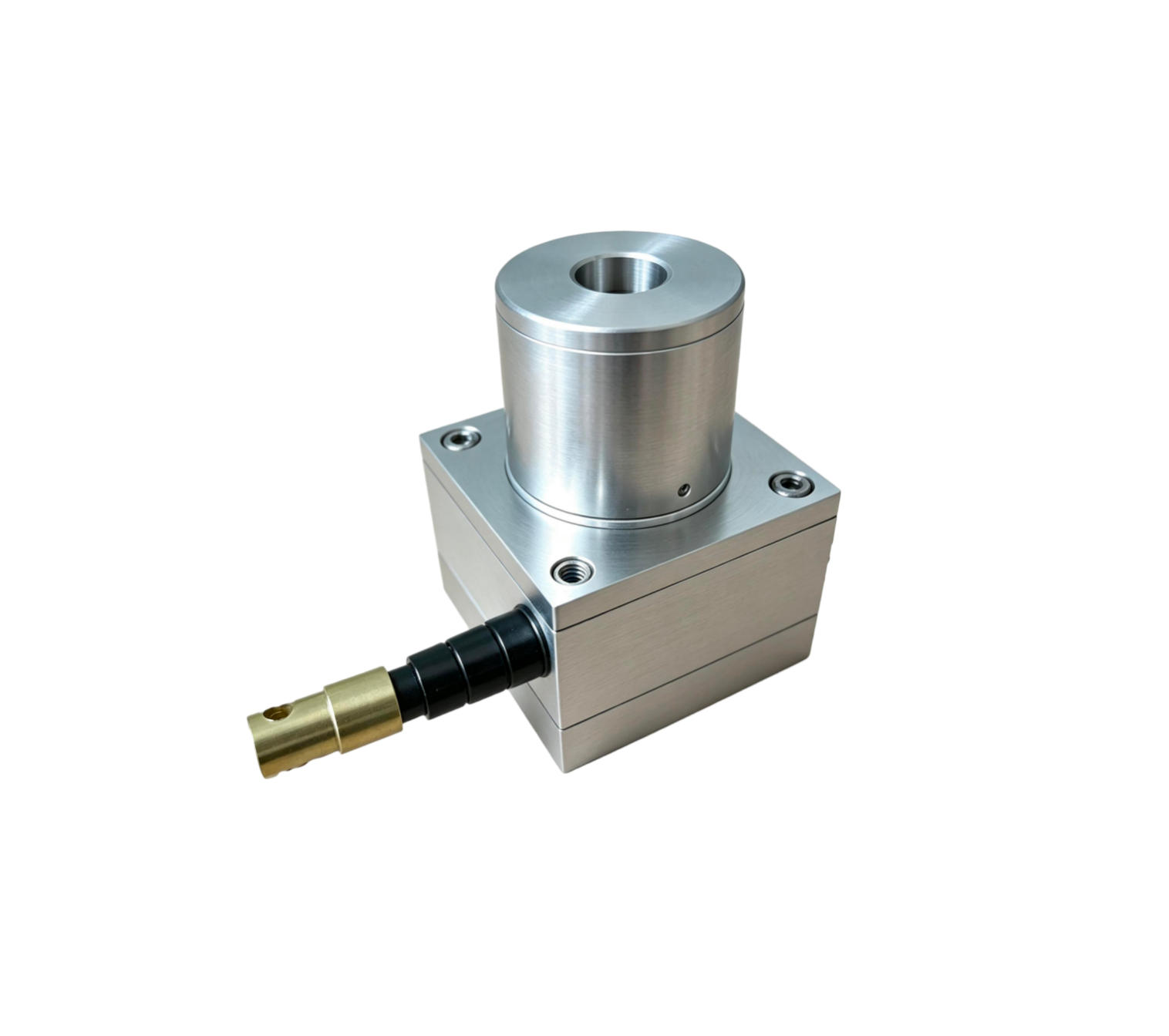

RLP40S
Analog Output
Imported precision potentiometers, Hall encoder and absolute encoder are optional for the analog signal output type.
The output signals:current 4-20 mA, voltage 0-5V , voltage 0-10V and resistance signals. The maximum stroke can reach 500MM. Working temperature : -30 °C-+90 °C.

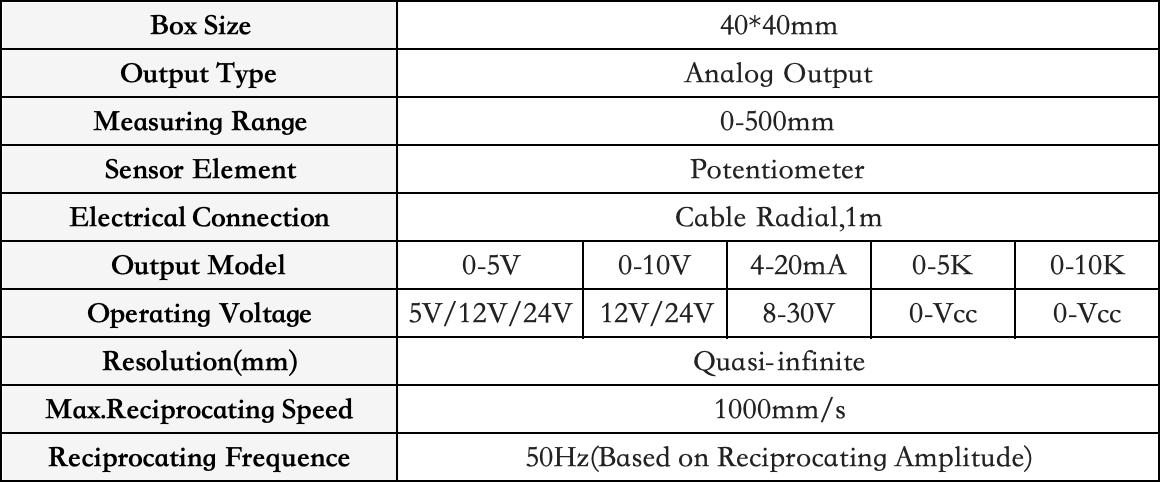

Specification parameters
| Box Size | 40*40mm | ||||
| Output Type | Analog Output | ||||
| Measuring Range | 0-500mm | ||||
| Sensor Element | Potentiometer | ||||
| Electrical Connection | Cable Radial,1m | ||||
| Output Model | 0-5V | 0-10V | 4-20mA | 0-5K | 0-10K |
| Operating Voltage | 5V/12V/24V | 12V/24V | 8-30V | 0-Vcc | 0-Vcc |
| Resolution(mm) | Quasi-infinite | ||||
| Max.Reciprocating Speed | 1000mm/s | ||||
| Reciprocating Frequence | 50Hz(Based on Reciprocating Amplitude) | ||||
