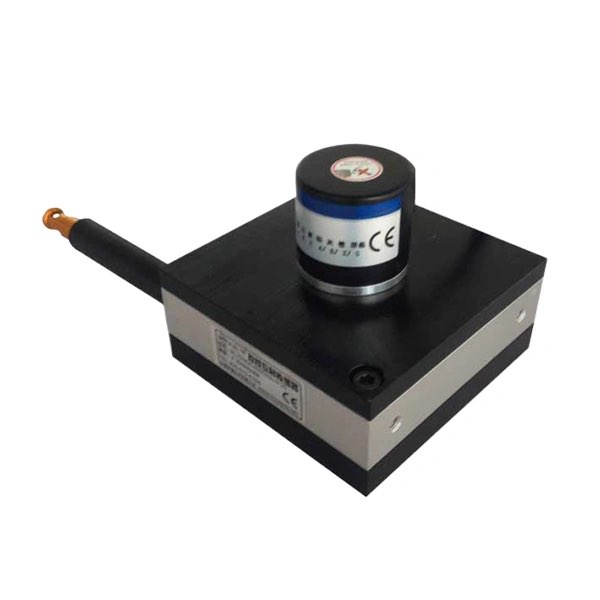

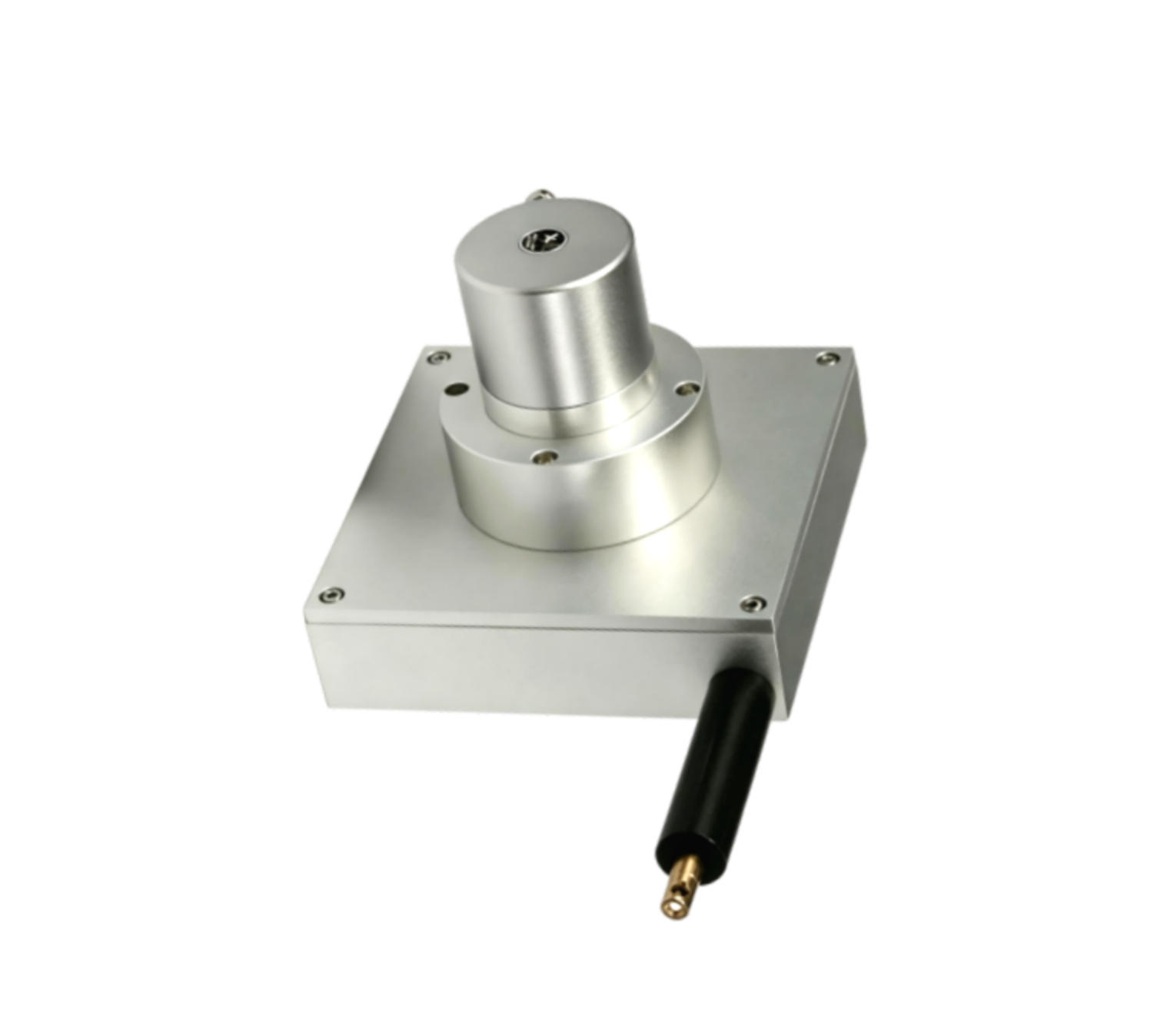

RLP210S
Analog Output
Imported precision potentiometers, Hall encoder and absolute encoder are optional for the analog signal output type.
The output signals: current 4-20 mA, voltage 0-5V , voltage 0-10V and resistance signals. The maximum stroke can reach 20000MM. Working temperature : -30 °C-+90 °C.
Specification parameters
| Box Size | 210*210mm |
| Output Type | Analog Output |
| Measuring Range | 0-20000mm |
| Sensor Element | Potentiometer |
| Electrical Connection | Cable Radial,1m |
| Output Model | 0-5V |
| Operating Voltage(DC) | 5V/12V/24V |
| Resolution(mm) | Quasi-infinite |
| Max.Reciprocating Speed | 1000mm/s |
| Reciprocating Frequence | 50Hz(Based on Reciprocating Amplitude) |
