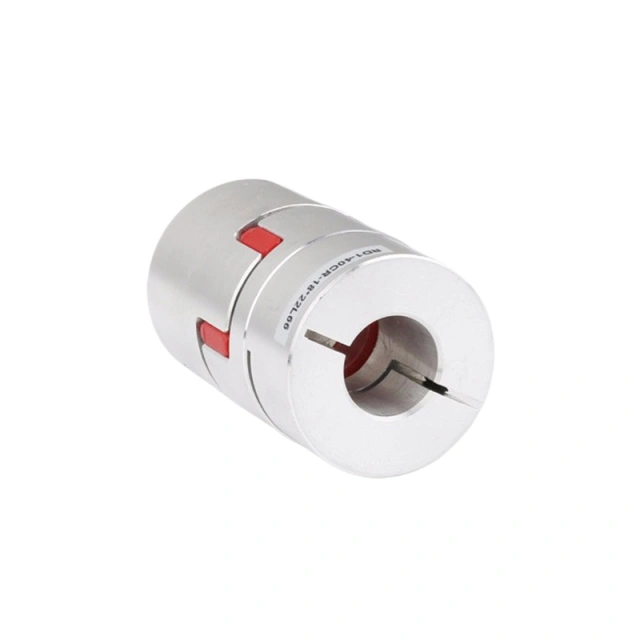

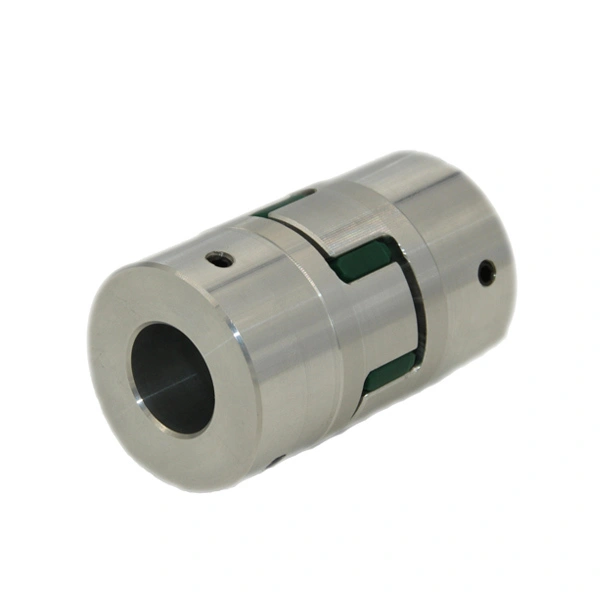

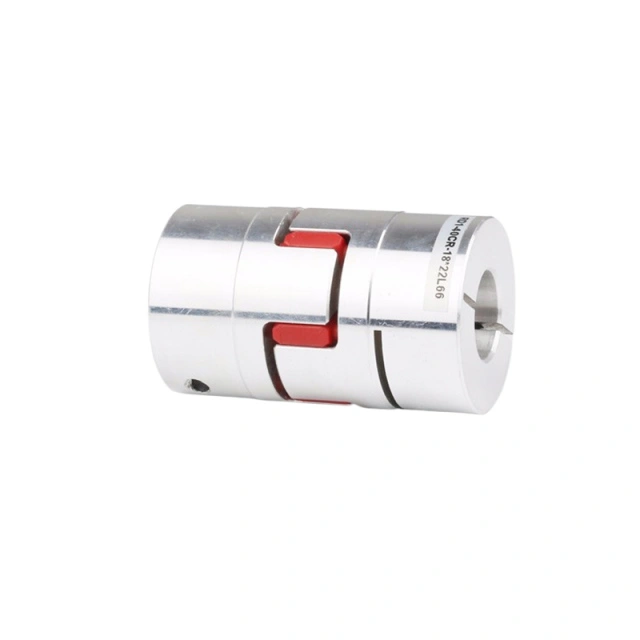

Coupling RD1-S
Imported rubber is used, according to different torque, the rubber material is different.
Specification parameters
| Jaw Set Screw Type Coupling | |||||
| Model | Flange OD (mm) | Shaft Dia Range (mm) | Total Length (mm) | Max Torque (N·m) | Max Speed (min⁻¹) |
| RD1-014SR | 14 | 3～6.5 | 22 | 4 | 34100 |
| RD1-020SR | 20 | 4～9.6 | 30 | 10 | 23800 |
| RD1-030SR | 30 | 6～14 | 35 | 25 | 15900 |
| RD1-040SR | 40 | 8～22 | 66 | 34 | 11900 |
| RD1-055SR | 55 | 10～28 | 78 | 120 | 8700 |
| RD1-065SR | 65 | 14～38 | 90 | 320 | 7400 |
| RD1-080SR | 80 | 19～45 | 114 | 650 | 6000 |
| RD1-095SR | 95 | 19～55 | 126 | 900 | 5000 |
| RD1-105SR | 105 | 19～60 | 140 | 1050 | 4500 |
