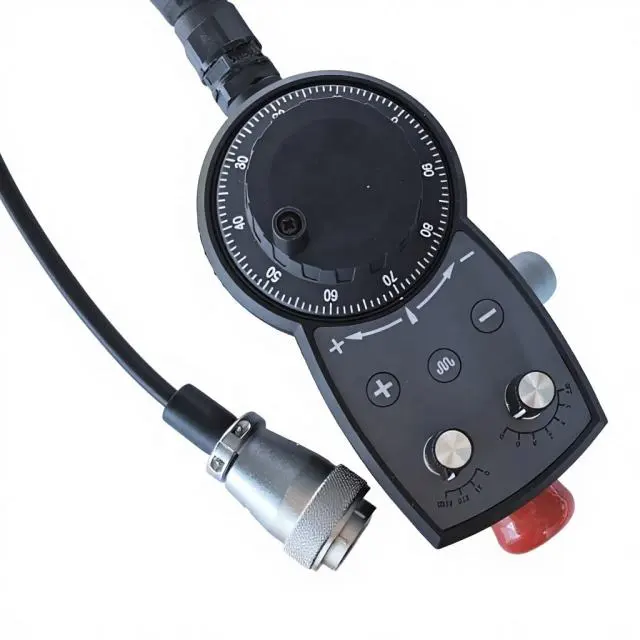

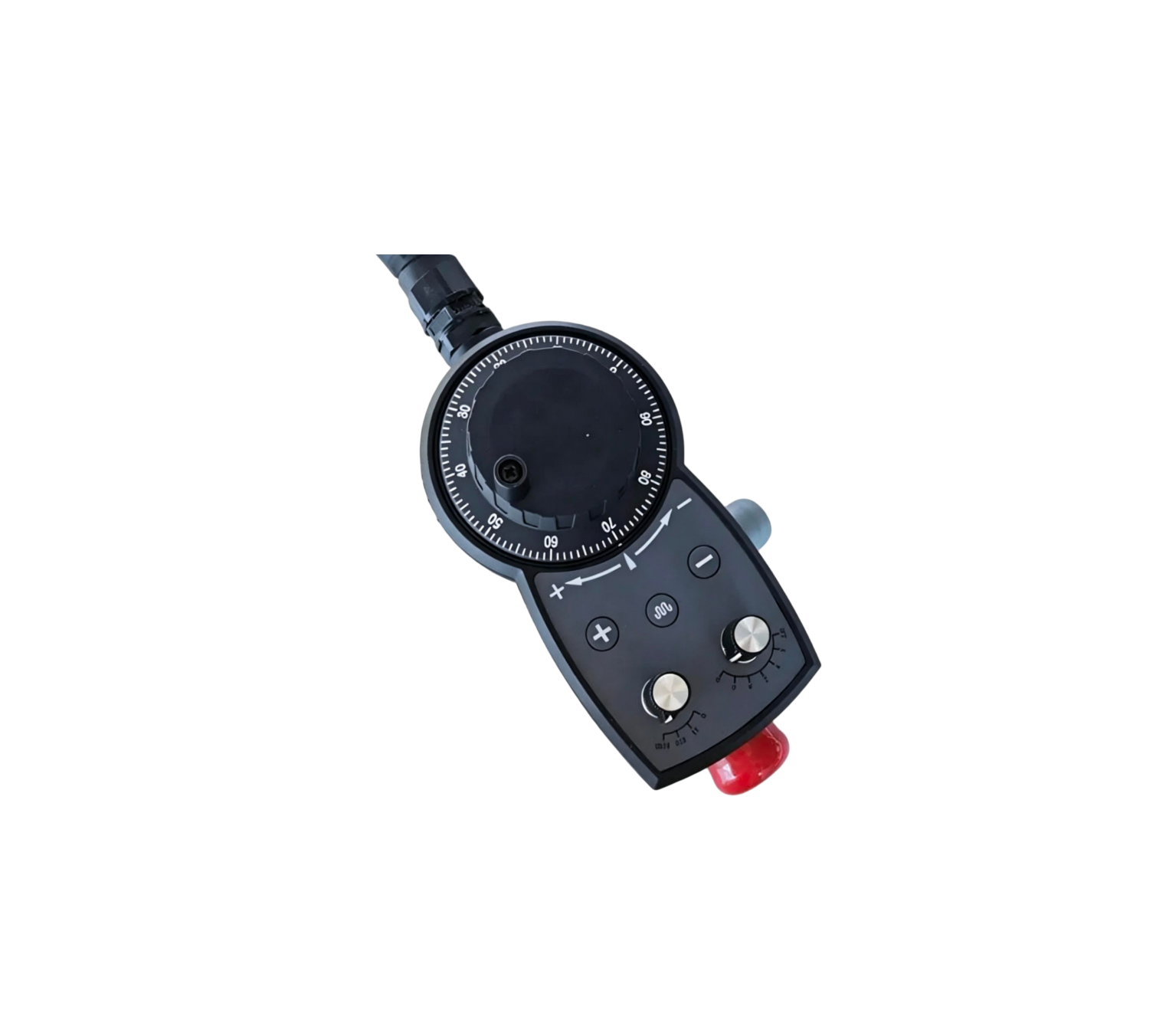

RSG6T
Manual Pulse Generator
With machine tool inching function.All-plastic housing, anti-oil,sealed.
Emergency stop switch and reset switch optional.Housing with hook and pendant carrier.Widely applied in CNC machine tools.
Specification parameters
| Product Type | RSG6T |
| Axis No. | 6 Axis(Optional) |
| Resolution Switch | X1,X10,X100 |
| Emergency Stop | Optional |
| Enable Switch | Single enable switch |
| Double enable switch | |
| With feed no enable switch | |
| With feed & enable switch | |
| With feed & double enable switch | |
| Without feed & double enable switch | |
| Spiral Cable | Standard 3M |
| Supply Voltage | DC5V：DC8 - 26V |
| Output Circuit | Voltage Output |
| Push - pull | |
| Open Collector | |
| Line Driver | |
| Wide Voltage Line Driver | |
| Resolution | 25ppr、100ppr |
| Signal | 90° phase different, A & B signals output |
