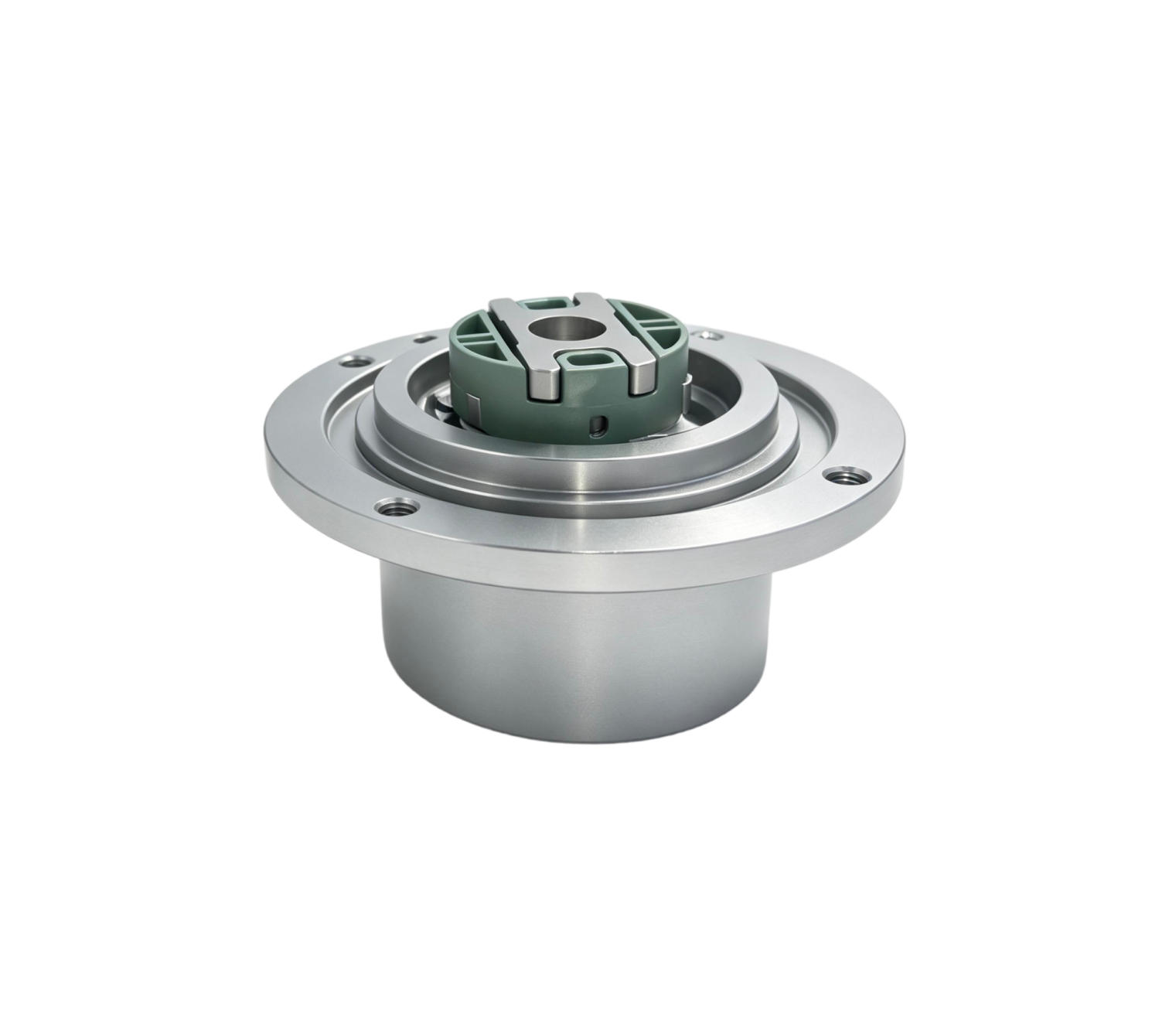

Intergrated RAA50.1C10
Absolute Optical Encoder

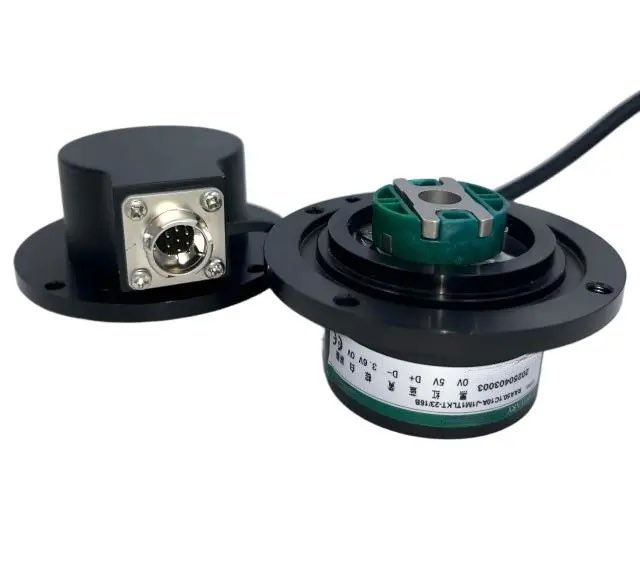

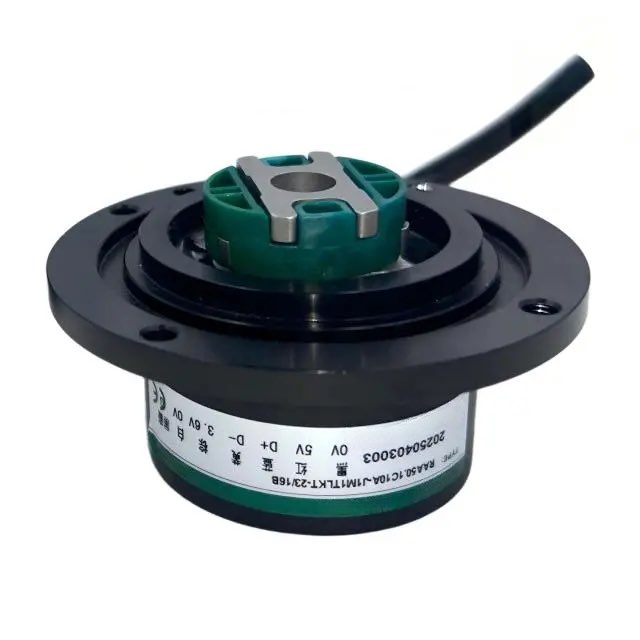

Integrated Transmissive Absolute Photoelectric Encoder OD50mm
Specification parameters
| Model | Basic：RAA50.1C10; With Temp Sensor: RTA50.1C10 |
| Outer Diameter | ∅50mm |
| Shaft Diameter | ∅10 Cross Shaft Coupling |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Plate Spring | Models A available (refer to the catalog) |
| Communication Interface | RS485 (RSS232, SSI, BISS Optional) |
| Baud rate | 2.5MHz ；5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication Code System | Positive Logic Binary Code |
| Resolution-Single-Turn | 23bit (17bit, 25bit, 26bit Optional) |
| Resolution-Multi-Turn | 16bit |
| Accuracy | Default 40″±10；High Accuracy（≤20″） |
| Operating Speed | Default ≤6000rpm; High Speed (6000 - 12000rpm) |
| Operating Temperature | -20°-100° |
| Operating Humidity | ＜90% RH（no condensation） |
| Protection Class | IP65 (motor end cover seal protection） |
