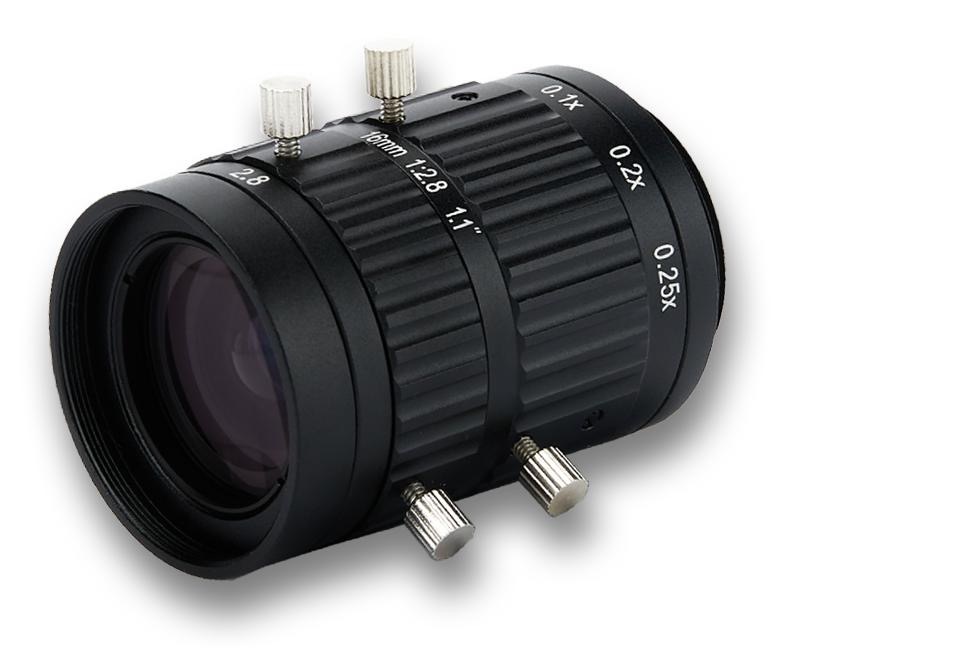

Short-Wave Infrared Fixed-Focus Lens
Wavelength coverage from 900 to 1700 nm, supports various target sizes, and is customizable.
Specification parameters
| FS0823JD-SWIR | 900-1700nm | 2/3" | 8mm | F2.8-22 | M49,P=0.75 | Ø51X48.5mm |
| FS1223JD-SWIR | 900-1700nm | 2/3" | 12mm | F1.8-22 | M49,P=0.75 | Ø51X59.0mm |
| FS1623JD-SWIR | 900-1700nm | 2/3" | 16mm | F1.4 - 22 | M49,P=0.75 | Ø51X62.5mm |
| FS2523JD-SWIR | 900-1700nm | 2/3" | 25mm | F1.4 - 22 | M49,P=0.75 | Ø51xX48.0mm |
| FS3523JD-SWIR | 900-1700nm | 2/3" | 35mm | F1.4 - 22 | M49,P=0.75 | Ø51X62.0mm |
| FS0601JD-SWIR | 900-1700nm | 1" | 6mm | F1.8-22 | / | Ø54x50.3mm |
| FS0801JD-SWIR | 900-1700nm | 1" | 8mm | F1.4-22 | M55,P=0.75 | Ø57x58mm |
| FS1201JD-SWIR | 900-1700nm | 1" | 12.5mm | F1.4-22 | M35.5,P=0.5 | Ø40x52mm |
| FS1601JD-SWIR | 900-1700nm | 1" | 16mm | F1.4-22 | M35.5,P=0.5 | Ø40x42mm |
| FS2501JD-SWIR | 900-1700nm | 1" | 25mm | F1.4-22 | M35.5,P=0.5 | Ø40x42.5mm |
| FS3501JD-SWIR | 900-1700nm | 1" | 35mm | F1.4-22 | M35.5,P=0.5 | Ø40x42.5mm |
| FS2501JDC-SWIR | 900-1700nm | 1" | 25mm | F1.4-Close | M=34,P=0.5 | Ø36.5x36.7mm |
| FS5001JD-SWIR | 900-1700nm | 1" | 50mm | F1.4-Close | M40.5,P=0.5 | Ø46x42.5mm |
| FS7501JD-SWIR | 900-1700nm | 1" | 75mm | F1.4-Close | M46,P=0.75 | Ø48X58.5mm |
| FS1243JD-SWIR | 900-1700nm | 4/3" | 12.5mm | F2-5.6 | M46,P=0.75 | Ø48X67mm |
