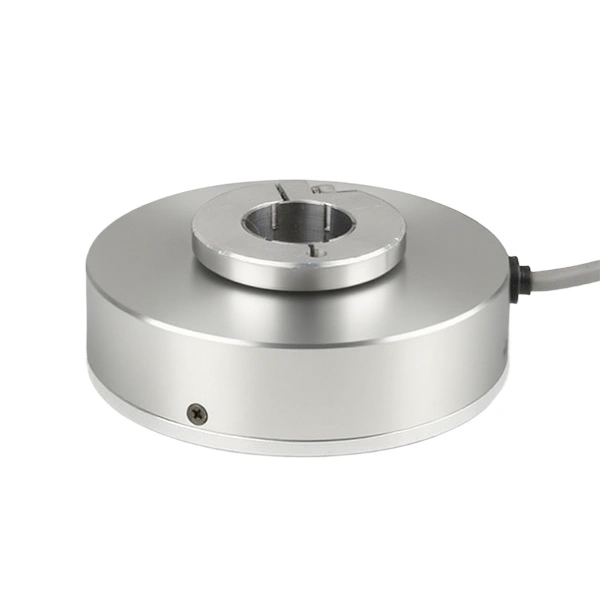

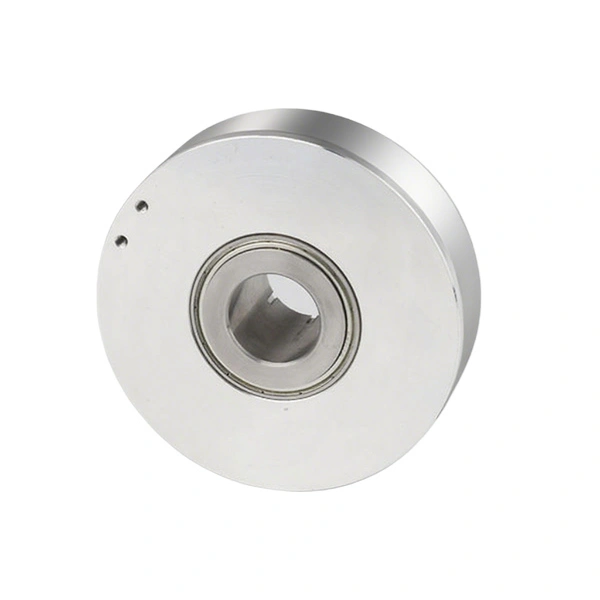

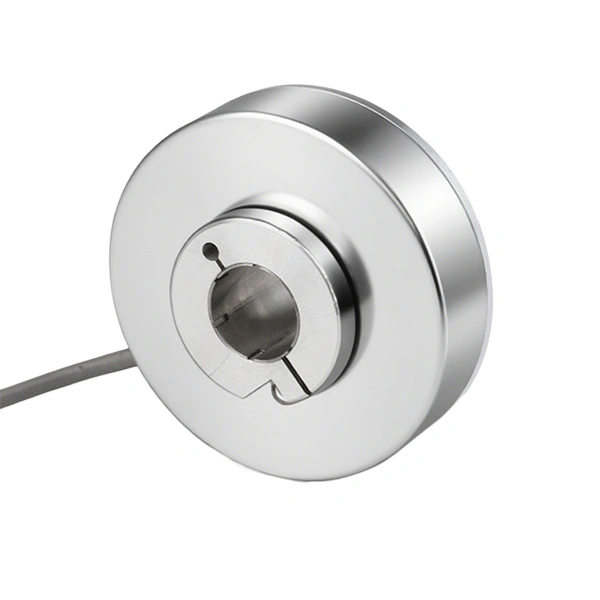

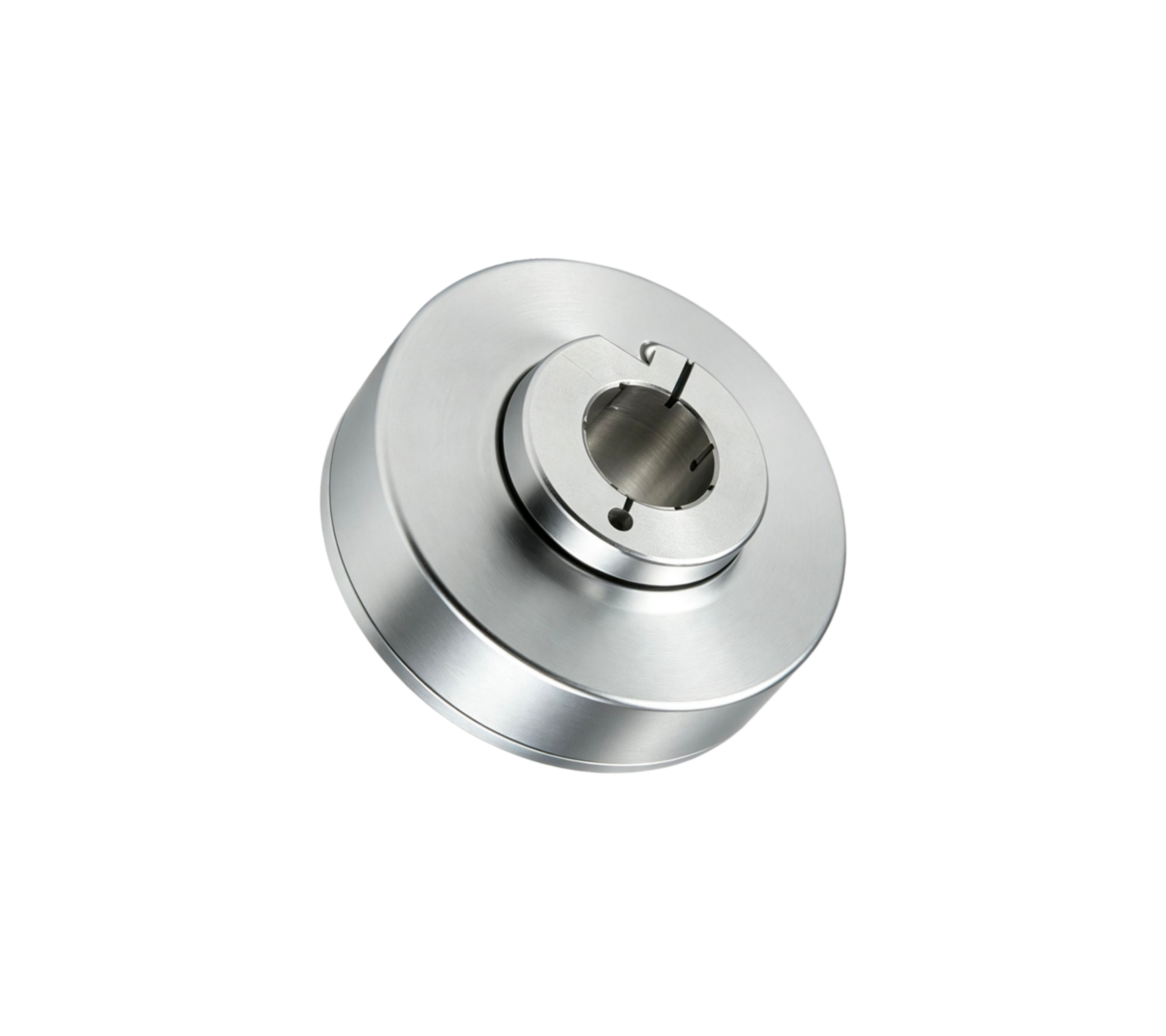

REC100B30
Hollow Shaft Encoder
REC100B30 is ultra-thin design to save space.Multiple mounting brackets are available for easy installation.
The product IS widely used for automatic control, automatic measurement, remote control, computer technology as well as for measuring the angle and the vertical axis on CNC machine tools, especially for the use of the elevator industry.Imorted optoelectronic devices with high reliability, long life, strong anti-interference ability,wide range of operating temperature.
Specification parameters
| Model | REC100B30 |
| Product Type | Clamp Hollow Shaft Rotary Incremental Encoder |
| Outer Diameter | 100mm |
| Shaft Diameter | 20-30mm |
| Resolution | 120, 200, 360, 500, 512, 600, 720, 1000, 1024, 1200, 2048, 2500, 4096, 5000, 7200 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 4000r/min |
| Maximum Radial/Axial Load | 40N / 20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP52 |
