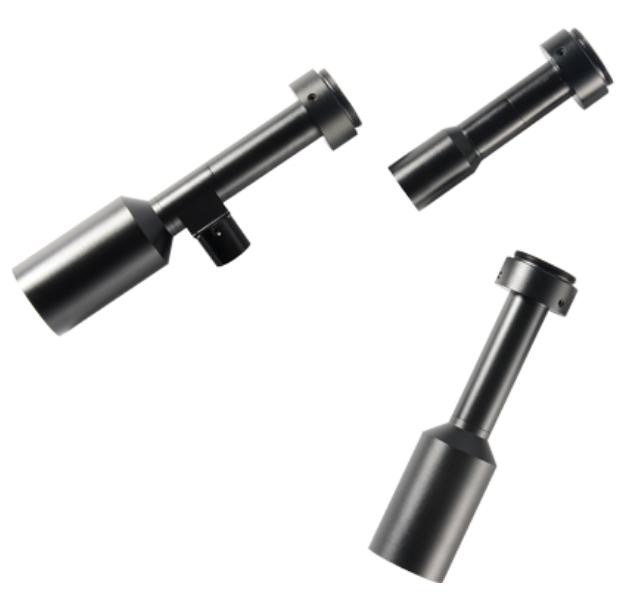

Standard Resolution Telecentric Lens
Adopts object-side telecentric design to ensure measurement accuracy. The shorter Working Wavelength provides convenience for installation in tight spaces. Magnification ranges from 0.3x to 8x, covering a wide range of applications. The entire series includes versions with coaxial illumination, supporting up to 2/3-inch C-mount industrial cameras, suitable for high-precision workpiece positioning and other applications.
Specification parameters
| Model | Optical Configuration | Magnification | Working Wavelength | Object Space FOV | Image Space FOV | DOV | F/# | FOV（H×V）1/3” | FOV（H×V）1/2” |
| FC-T03X65 | Object Telecentric Lenses | 0.3 | 65 | 20 | 6 | 14.8 | F15 | 16X12 | / |
| FC-T03X65D | Object Telecentric Lenses | 0.3 | 65 | 20 | 6 | 14.8 | F15 | 16X12 | / |
| FC-T05X65 | Double Telecentric | 0.5 | 65 | 22 | 11 | 7.2 | F16.7 | 9.6X7.2 | 12.8X9.6 |
| FC-T05X65D | Double Telecentric | 0.5 | 65 | 22 | 11 | 7.3 | F16.5 | 9.6X7.2 | 12.8X9.6 |
| FC-T08X65-Y11 | Object Telecentric Lenses | 0.8 | 65 | 10 | 8 | 2.6 | F16 | 6X4.5 | 8X6 |
| FC-T08X65 | Object Telecentric Lenses | 0.8 | 65 | 13.8 | 11 | 2.5 | F14.8 | 6X4.5 | 8X6 |
| FC-T08X65D | Object Telecentric Lenses | 0.8 | 65 | 13.8 | 11 | 2.5 | F14.8 | 6X4.5 | 8X6 |
| FC-T1X65D-Y11 | Object Telecentric Lenses | 1 | 65 | 8 | 8 | 1.8 | F16.7 | 4.8X3.6 | 6.4X4.8 |
| FC-T1X65-Y11 | Object Telecentric Lenses | 1 | 65 | 8 | 8 | 1.8 | F16.7 | 4.8X3.6 | 6.4X4.8 |
| FC-T1X65 | Object Telecentric Lenses | 1 | 65 | 11 | 11 | 1.8 | F16.6 | 4.8X3.6 | 6.4X4.8 |
| FC-T1X65D | Object Telecentric Lenses | 1 | 65 | 11 | 11 | 1.8 | F16.6 | 4.8X3.6 | 6.4X4.8 |
| FC-T2X65 | Object Telecentric Lenses | 2 | 65 | 4 | 8 | 0.47 | F17.4 | 2.4X1.8 | 3.2X2.4 |
| FC-T2X65D | Object Telecentric Lenses | 2 | 65 | 4 | 8 | 0.47 | F17.4 | 2.4X1.8 | 3.2X2.4 |
| FC-T2X40 | Object Telecentric Lenses | 2 | 40 | 4 | 8 | 0.91 | F33.2 | 2.4X1.8 | 3.2X2.4 |
| FC-T2X40D | Object Telecentric Lenses | 2 | 40 | 4 | 8 | 0.89 | F33.3 | 2.4X1.8 | 3.2X2.4 |
| FC-T3X65 | Object Telecentric Lenses | 3 | 65 | 2.7 | 8 | 0.28 | F24.9 | 1.6X1.2 | 2.13X1.6 |
| FC-T3X65D | Object Telecentric Lenses | 3 | 65 | 2.7 | 8 | 0.27 | F24.9 | 1.6X1.2 | 2.13X1.6 |
| FC-T4X65 | Object Telecentric Lenses | 4 | 65 | 2 | 8 | 0.13 | F26.2 | 1.2X0.9 | 1.6X1.2 |
| FC-T4X65D | Object Telecentric Lenses | 4 | 65 | 2 | 8 | 0.15 | F27.3 | 1.2X0.9 | 1.6X1.2 |
| FC-T6X65 | Object Telecentric Lenses | 6 | 65 | 1.3 | 8 | - | F39.3 | 0.8X0.6 | 1.07X0.8 |
| FC-T6X65D | Object Telecentric Lenses | 6 | 65 | 1.3 | 8 | 0.06 | F39.4 | 0.8X0.6 | 1.07X0.8 |
| FC-T8X65 | Object Telecentric Lenses | 8 | 65 | 1 | 8 | - | F52.4 | 0.6X0.45 | 0.8X0.6 |
| FC-T8X65D | Object Telecentric Lenses | 8 | 65 | 1 | 8 | - | F52.4 | 0.6X0.45 | 0.8X0.6 |
