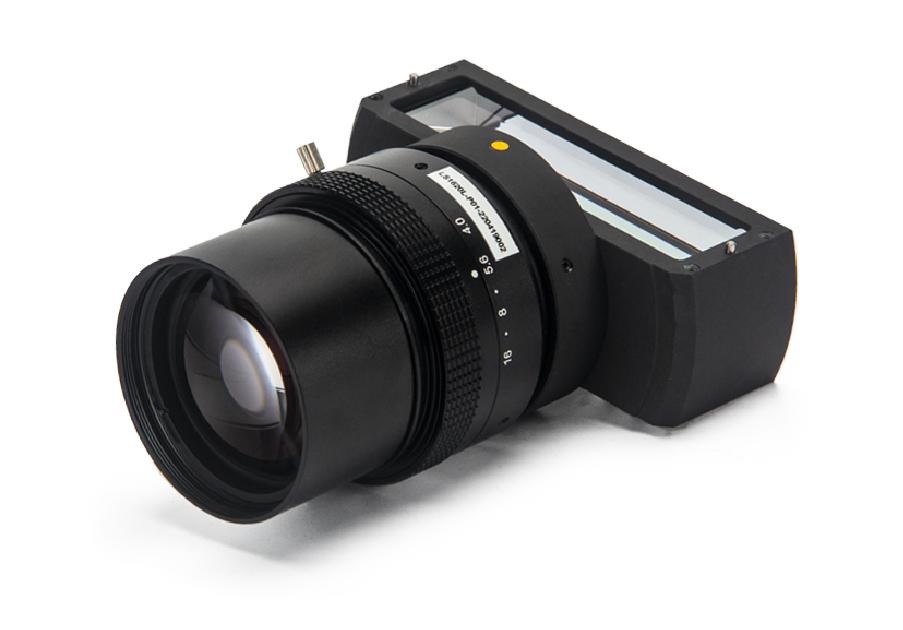

Coaxial Illumination Line Scan Lens
Specifically designed for coaxial illumination light source systems, eliminating resolution loss caused by beam splitter mirrors to meet high-resolution and high-contrast inspection requirements for 16K/5μ. It is also compatible with 16K/3.5μ and 12K/5μ line scan cameras. Comes with a 30*80mm beam splitter, featuring ultra-low optical distortion of less than 0.001% and less than 1 pixel, with a high light transmission design reaching F3.8.
Specification parameters
| Model | Focal Length | Magnification | Sensor size | F/# | Distrotion | Working Wavelength | Mount |
| FL116COVM10 | 116mm | 1X | φ82 | 3.8-16 | 0.00% | 157.39 | V-Mount(φ49) |
| FL116COVM13 | 116mm | 1.33X | φ82 | 4.3-16 | 0.00% | 171.54 | V-Mount(φ56) |
| FL145COVM15 | 145mm | 1.5X | φ82 | 4.3-16 | 0.00% | 127.3 | V-Mount(φ56) |
| FL116COVM17 | 116mm | 1.7X | φ82 | 4.0-16 | 0.00% | 148.83 | V-Mount(φ56) |
| FL120COVM20 | 120mm | 2X | φ82 | 4.0-16 | 0.00% | 135.95 | V-Mount(φ56) |
| FL120COVM30 | 120mm | 3X | φ82 | 4.0-16 | 0.01% | 112.6 | V-Mount(φ56) |
