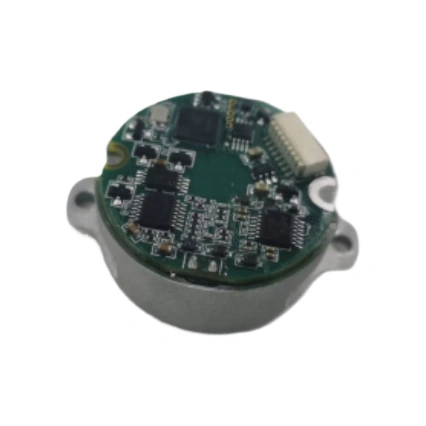

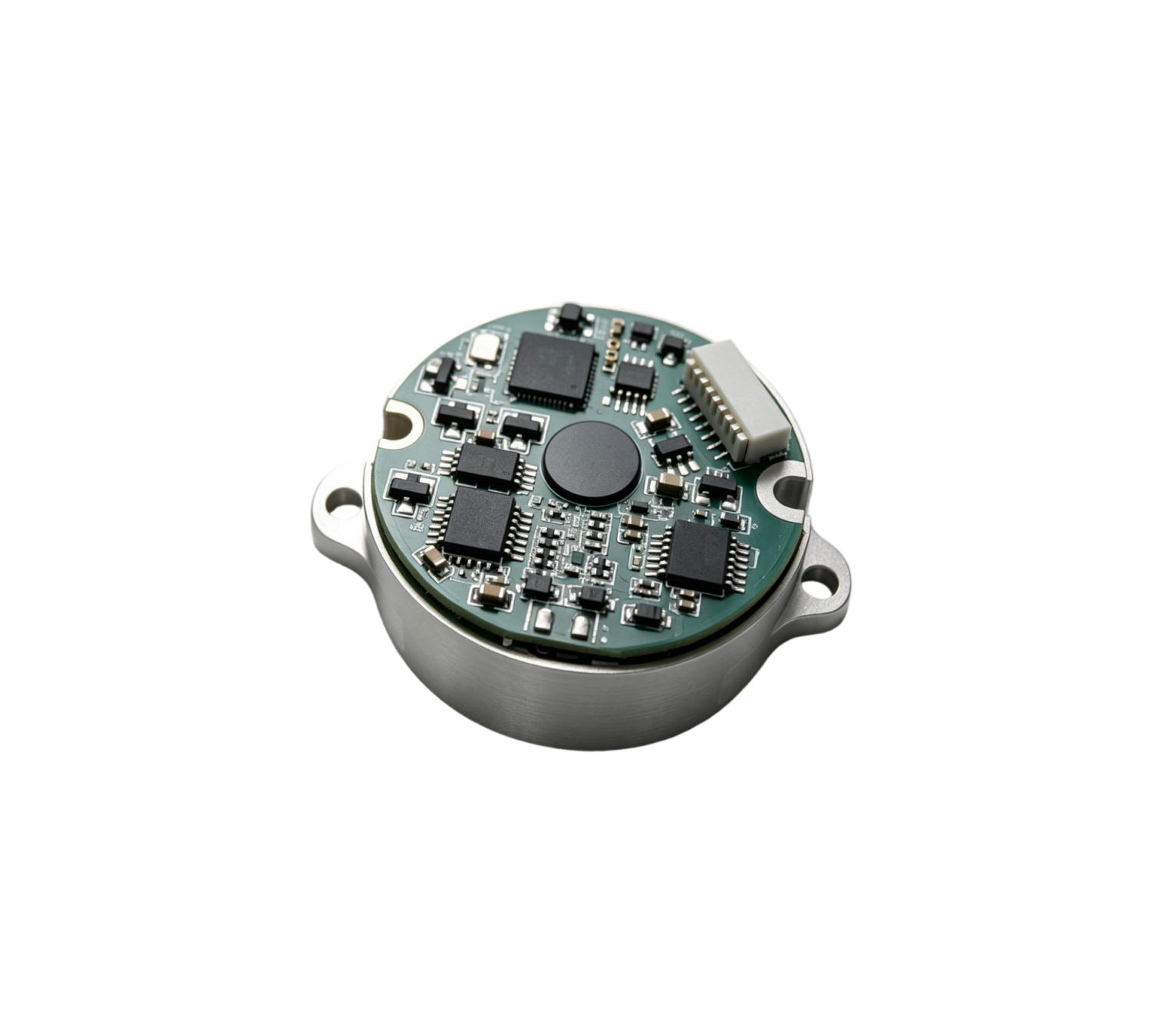

Split SAA35.3
Photoelectric encoder
Split Transmissive Absolute Photoelectric Encoder OD35mm
Specification parameters
| Model | Basic：SAA35T6; With Temp Sensor: STA35T6 |
| Outer Diameter | ∅35mm |
| Shaft Diameter | ∅6mm, ∅8mm |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Communication Interface | RS485 (SSI, BISS Optional) |
| Baud Rate | 2.5MHz ；5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication code System | Positive Logic Binary Code |
| Resolution-Single-Turn | 23bit (17bit, 25bit Optional) |
| Resolution-Multi-Turn | 16bit |
| Operating Temperature | -20°-100° |
| Operating Humidity | ＜90% RH（no condensation） |
| Protection Class | IP54 (motor end cover seal protection） |
