RLA400

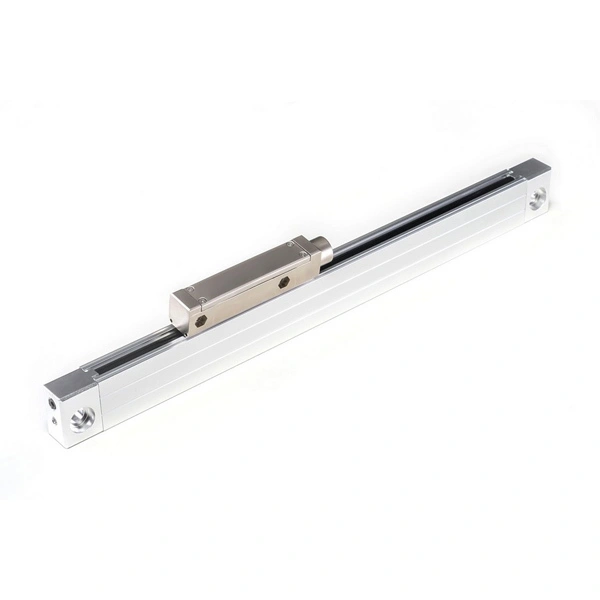

Absolute Linear Grating Scale
The RLA400 series absolute linear scale meets a maximum measuring length of 1240mm.
It supports position value transmission via protocols such as Biss-c (32/26bit), SSl (27/30/32bit), Fanuc, Mitsubishi,Panasonic and DRlVE-CLiO, with an effective resolution of up to 5nm.
Specification parameters
| Model | RLA400 Absolute Enclosed Linear Grating Ruler |
| Measurement | 70, 120, 170, 220, 270, 320, 370, 420, 470, 520, 570, 620, 670, 720, 770, 820, 870, 920, 970, 1020 (Note: ≤620mm recommend auxiliary fixing clamps) |
| Accuracy | ±3μm; ±5μm |
| Pitch | 20μm |
| Resolution | 5nm; 10nm; 50nm; 100nm |
| Supply Voltage | 5V±5% |
| Electrical Output Interface | SSI |
| Biss - C | |
| Fanuc | |
| Panasonic | |
| Plug | DB9 pin; DB15 pin |
| Operating Temperature | 0～50℃ |
| Protection Class | IP53, with compressed air IP64 |
