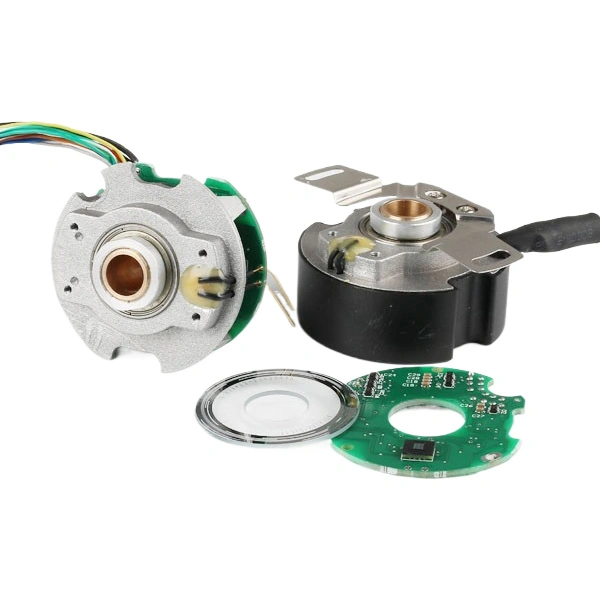

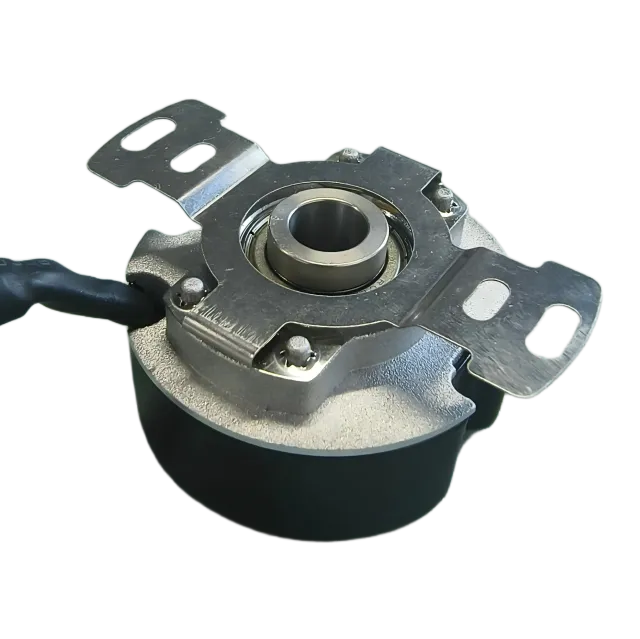

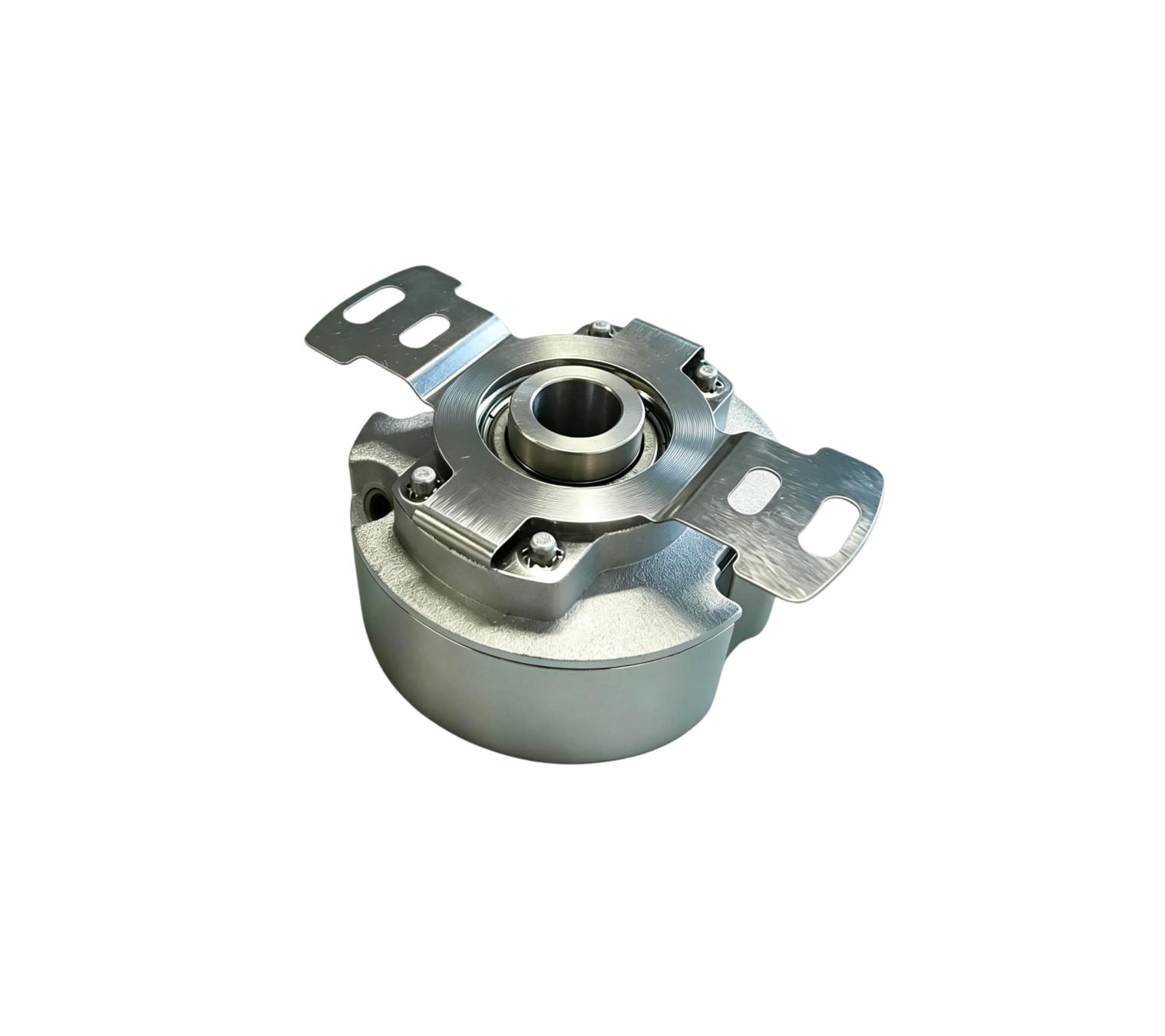

Intergrated NVA48T
Absolute Optical Encoder
Single turn or Multi-turn absolute encoder.
Resolution is 17-23 bits.International BISS-C protocol.Compact, ultra-thin design,high precision.Integrated optoelectronic components.Anti-interference ability.The chip use German IC-hous Asic Integrated circuit design
Specification parameters
| Model | NVA48T9 |
| Outer Diameter | ∅48mm |
| Shaft Diameter | ∅8mm；∅9mm |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Plate Spring | Models A, B, C, D available (refer to the catalog) |
| Communication Interface | RS422 BISS |
| Communication Protocol | Timed Transmission |
| Communication code system | Positive Logic Binary Code |
| Resolution-Single-turn | 17bit |
| Max Response Frequency | 6000rpm |
| Breaking Strength of Shaft and Bearing | ≥650N |
| Max Response Frequency | 300kHz |
| Operating temperature | -20°~+85℃ |
| Protection Class | IP50 |
