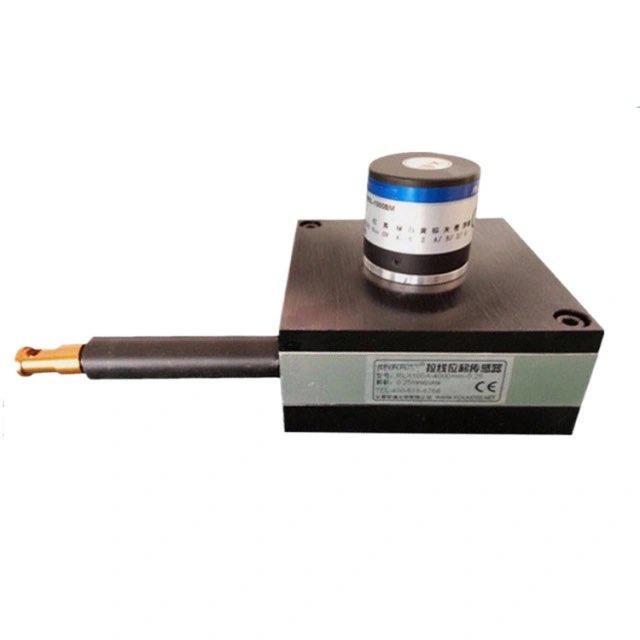

RLP95S
Analog Output
Imported precision potentiometers, Hall encoder and absolute encoder are optional for the analog signal output type.
The output signals:current 4-20 mA, voltage 0-5V , voltage 0-10V and resistance signals. The maximum stroke can reach 4000MM. Working temperature : -30 °C-+90 °C.

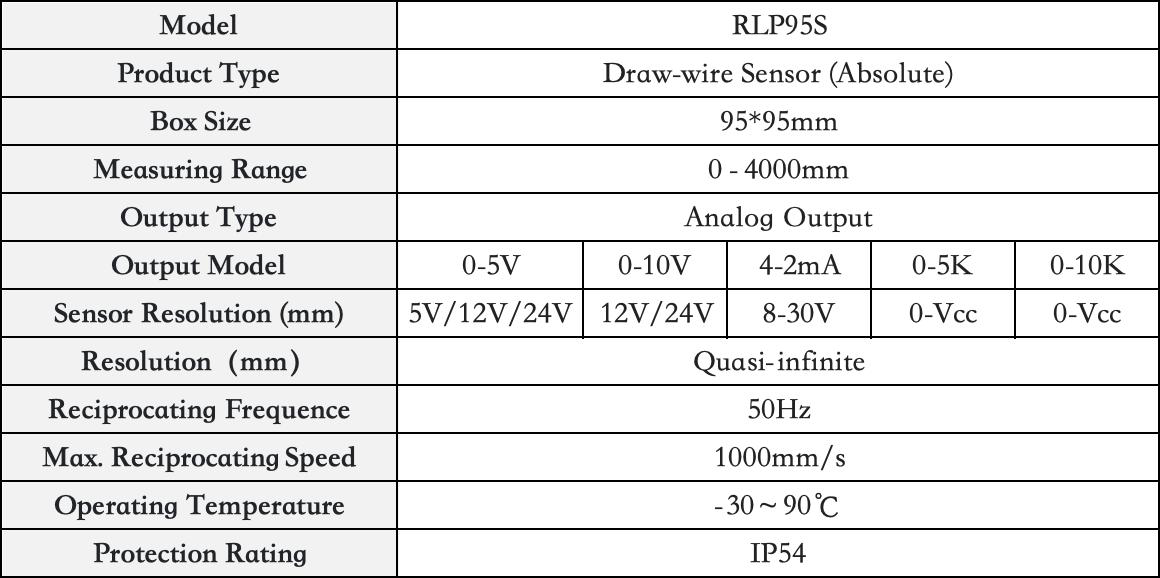

Specification parameters
| Model | RLP95S | ||||
| Product Type | Draw-wire Sensor (Absolute) | ||||
| Box Size | 95*95mm | ||||
| Measuring Range | 0 - 4000mm | ||||
| Output Type | Analog Output | ||||
| Output Model | 0-5V | 0-10V | 4-2mA | 0-5K | 0-10K |
| Sensor Resolution (mm) | 5V/12V/24V | 12V/24V | 8-30V | 0-Vcc | 0-Vcc |
| Resolution（mm） | Quasi-infinite | ||||
| Reciprocating Frequence | 50Hz | ||||
| Max. Reciprocating Speed | 1000mm/s | ||||
| Operating Temperature | -30～90℃ | ||||
