RSE

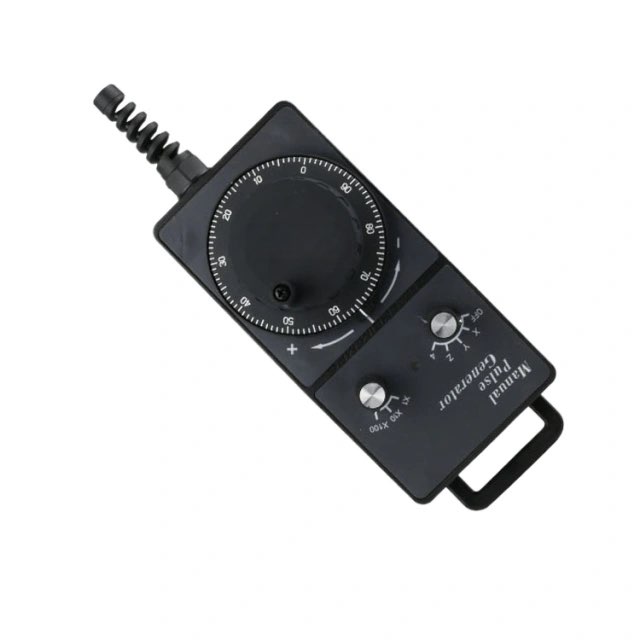

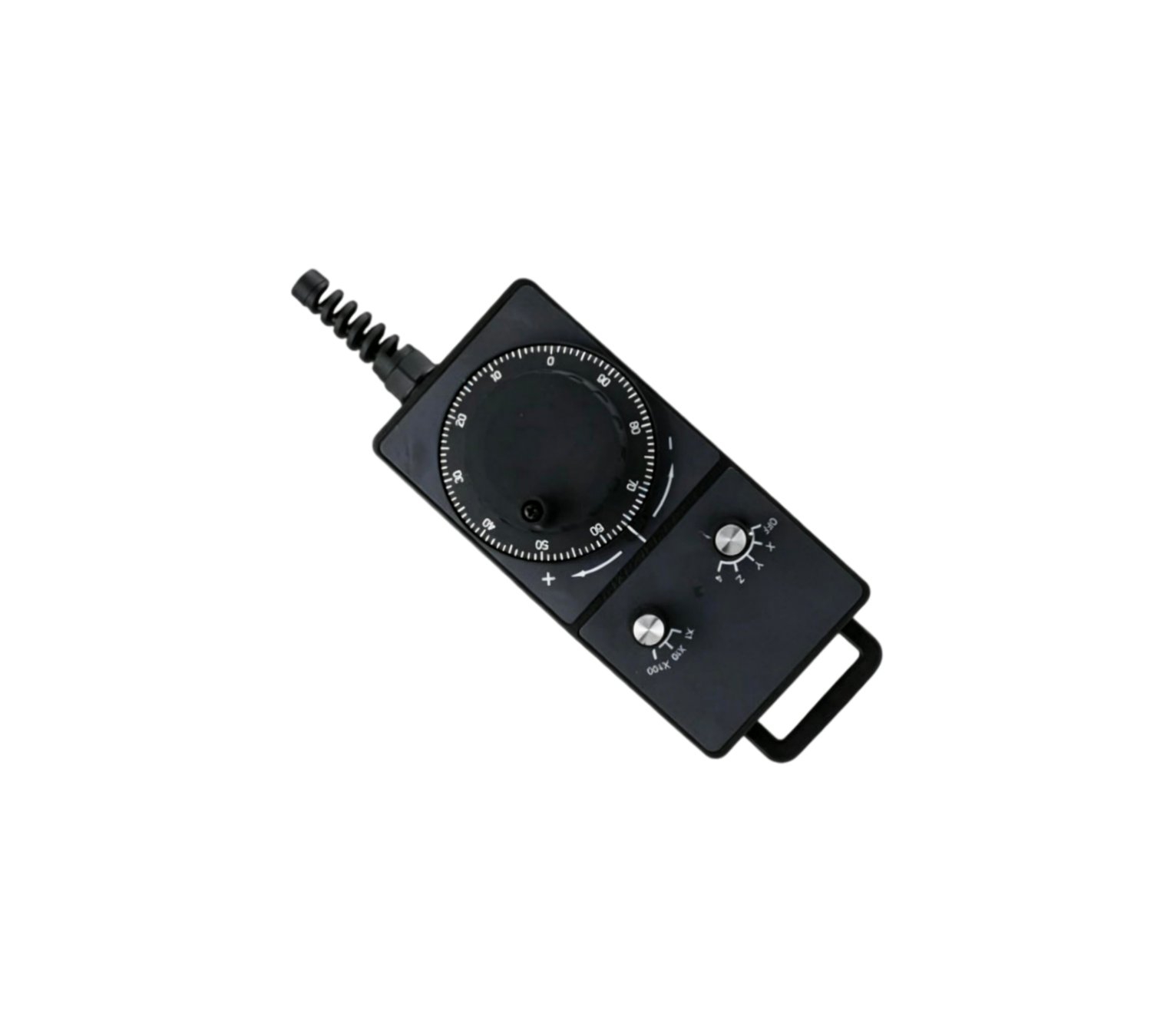

Manual Pulse Generator
Compact design, easy to move.All-plastic housing, anti-oil,sealed.Widely used in CNC machine tools.
The Manual Pulse Generator is a precision hand‑held device that generates electrical pulses for manual control of CNC machines and automation systems. Featuring a rotating knob and axis selector, it enables accurate position adjustments, step trimming, and work origin setup, with selectable resolutions and robust anti‑interference housing for reliable performance in industrial environments.
Specification parameters
| Product Type | RSE |
| Axis No. | 4 Axis |
| Resolution Switch | Optional |
| Enable Switch | Optional （Single enable switch） |
| Spiral Cable | Standard 3M |
| Supply Voltage | DC5V：DC8 - 26V |
| Output Circuit | Voltage Output |
| Push - pull | |
| Open Collector | |
| Line Driver | |
| Wide Voltage Line Driver | |
| Resolution | 25ppr、100ppr |
| Signal | 90° phase different, A & B signals output |
