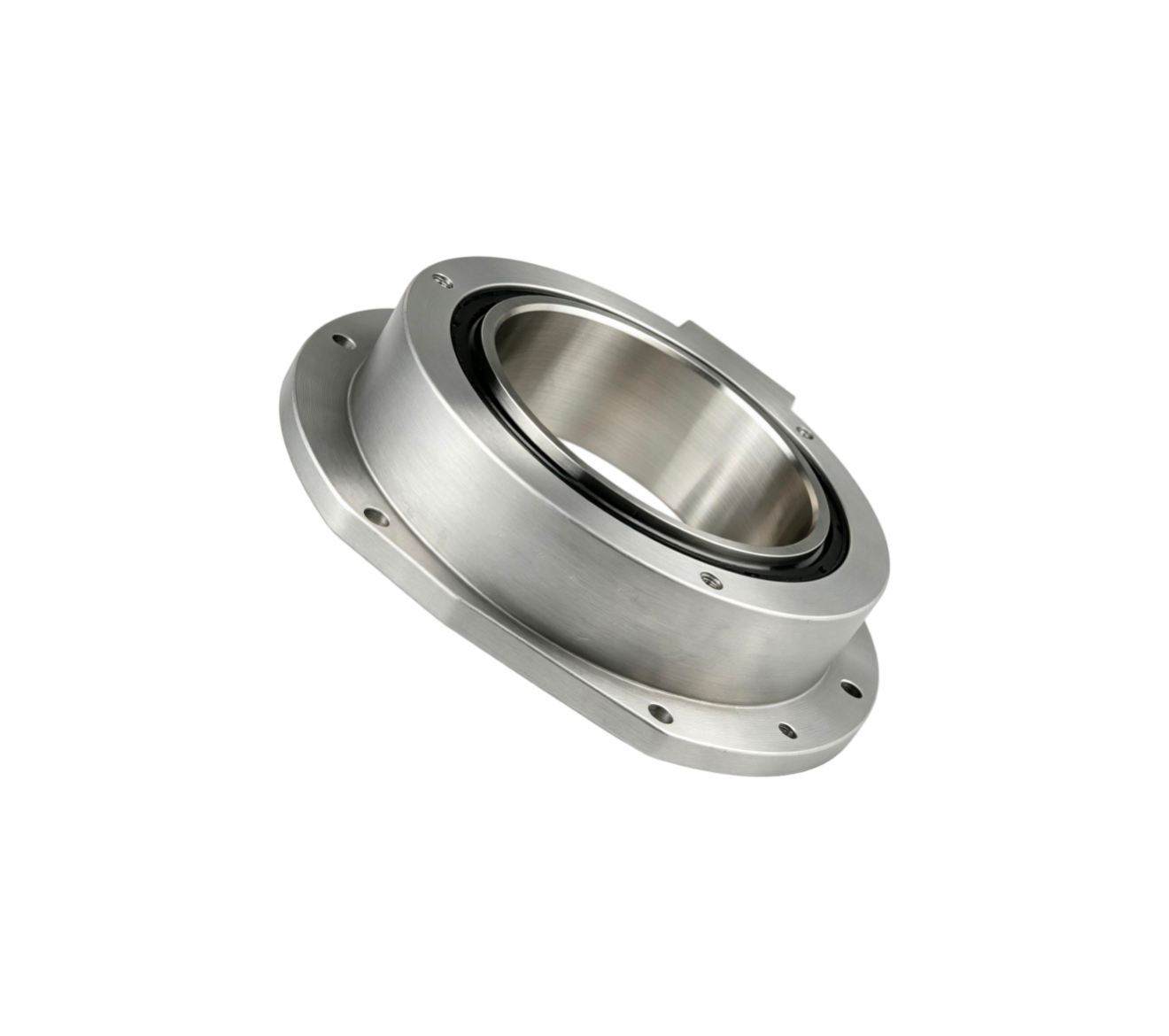

STS256T130
Large Hollow Shaft Optical Encoder
Our integrated photoelectric large hollow shaft spindle encoder is tailored for heavy-duty industrial motion control.
Boasting a 130mm inner bore for seamless large-diameter spindle integration, 2048ppr. With stable signal transmission and anti-interference performance, it delivers reliable position and speed feedback for CNC and automated production lines.
Specification parameters
| Model | STS256T130 |
| Product Type | Bearless spindle encode |
| Outer Diameter | 256mm |
| Shaft Diameter | 130mm |
| Resolution | 2048ppr |
| Supply Voltage | DC5V |
| Output Form | Line Drive Output (AM26C31I) |
| Output Signal | 90° Phase - shifted A & B Signals |
| Frequency Response | 100 kHz |
| Maximum Speed | 5000r/min |
| Maximum Radial/Axial Load | 100N / 50N |
| Operating Temperature | -40～80℃ |
| Protection Rating | IP64 |
