RPH66S10

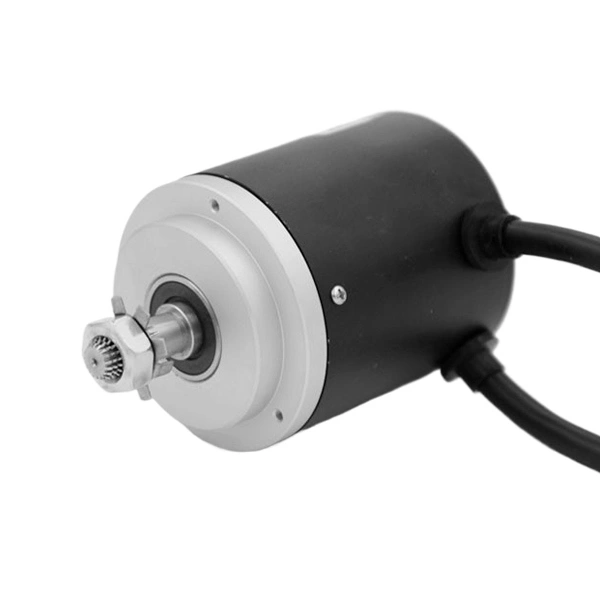

Textile Machine Encoder
This product is a compound encoder. it outputs two signals of A and B channels with a 90° phase difference, and its output absolute code is 8-bit binary Gray code.
It is widely used in systems such as automatic measurement and automatic control, and is especially suitable for textile machinery.The optoelectronic devices have high reliability,long service life, strong anti-interference ability, and a wide operating temperature range.
Specification parameters
| Model | RPH66S10 |
| Product Type | Composite encoder |
| Outer Diameter | 66mm |
| Shaft Diameter | 10mm |
| Resolution | 8bit |
| Supply Voltage | Incremental: 5V; Absolute: 24V |
| Output Form | Incremental: A/B/Z Square Wave; Absolute: 8 - bit Gray Cod |
| Output Code System | Binary Gray code |
| Response frequency | 0-25KHz |
| Maximum Speed | 1000 r/min |
| Operating Temperature | -25~85℃ |
| Radial parameter | 2×10⁻³ N·m |
| Output Signals | Incremental code: A, B signals with 90° phase difference, including Z signal; Absolute code: 8-bit binary Gray code |
