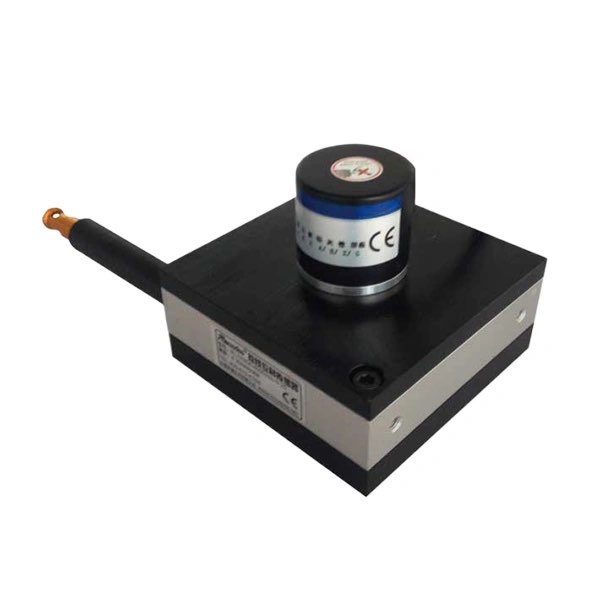

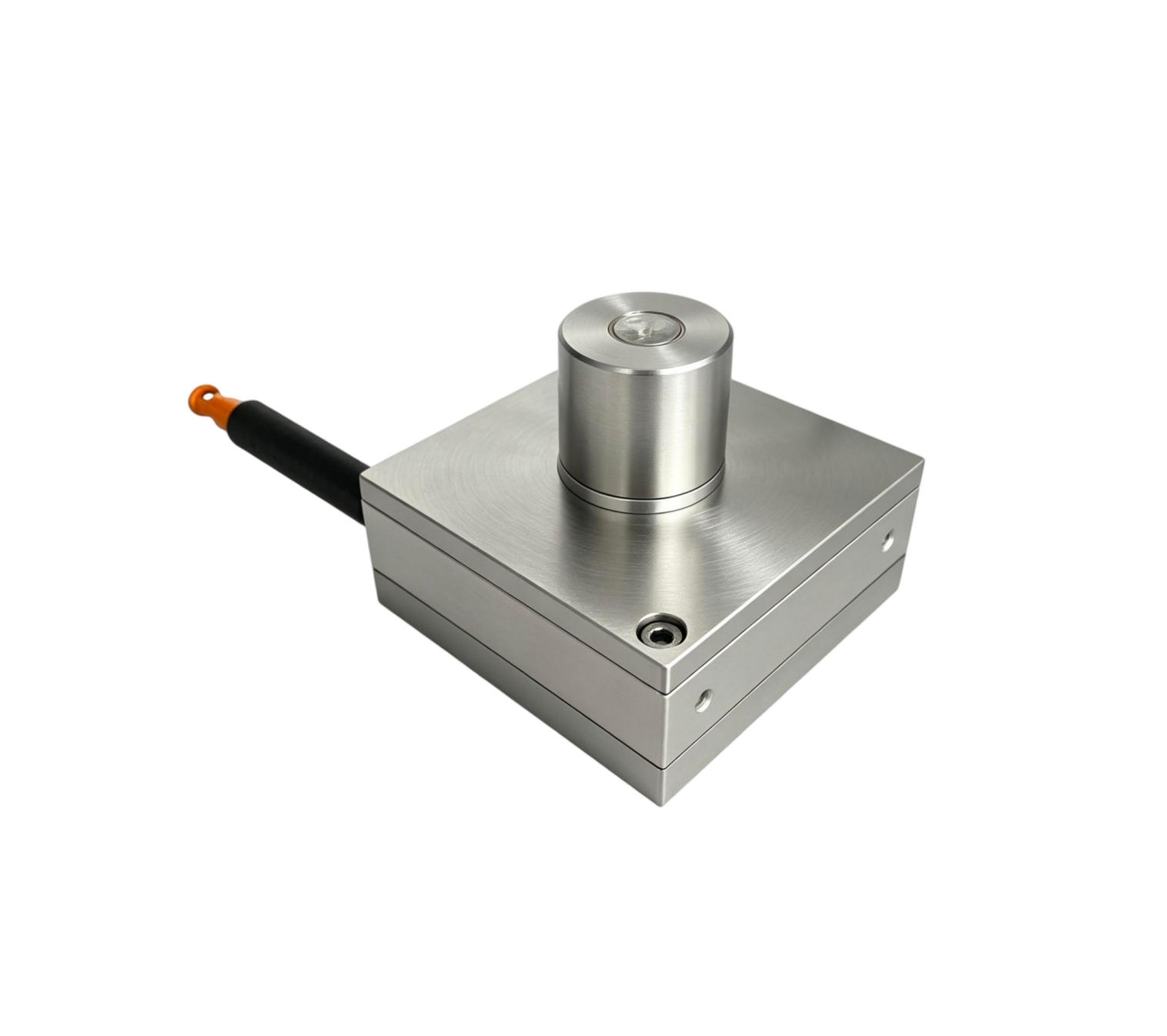

RLC95D
Digital Output
Incremental encoder and absolute encoder are optional for the digital signal output type. Output signals are square wave ABZ signals or Gray code signals.
Measurement range is up to 4000mm. Linear accuracy: 0.05% FS. Resolution based on the different configuration can reach 0.001mm / pulse in maximum. Working temperature: -30 ° C-+90 ° C.

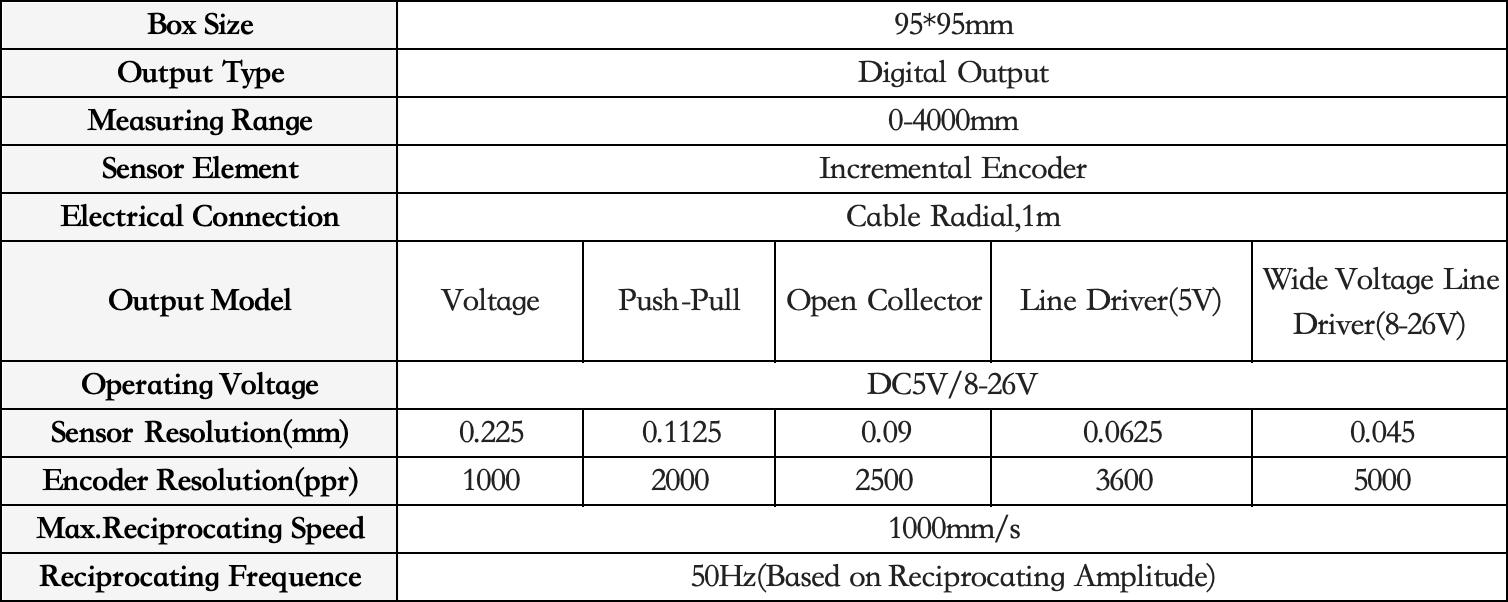

Specification parameters
| Box Size | 95*95mm | ||||
| Output Type | Digital Output | ||||
| Measuring Range | 0-4000mm | ||||
| Sensor Element | Incremental Encoder | ||||
| Electrical Connection | Cable Radial,1m | ||||
| Output Model | Voltage | Push-Pull | Open Collector | Line Driver(5V) | Wide Voltage Line Driver(8-26V) |
| Operating Voltage | DC5V/8-26V | ||||
| Sensor Resolution(mm) | 0.225 | 0.1125 | 0.09 | 0.0625 | 0.045 |
| Encoder Resolution(ppr) | 1000 | 2000 | 2500 | 3600 | 5000 |
| Max.Reciprocating Speed | 1000mm/s | ||||
| Reciprocating Frequence | 50Hz(Based on Reciprocating Amplitude) | ||||
