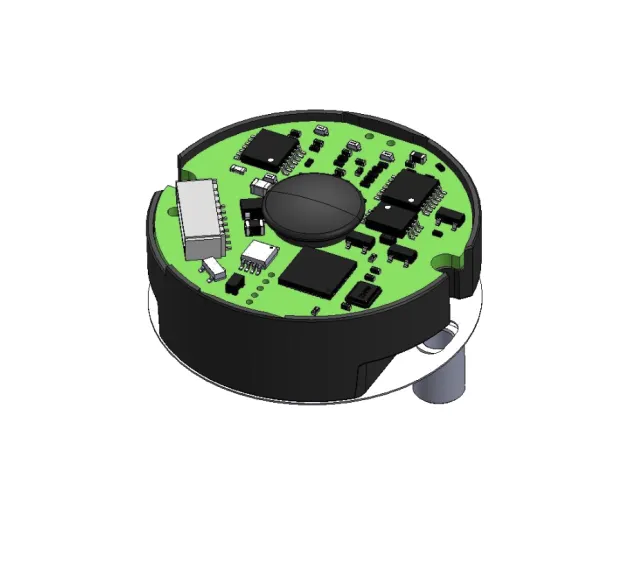

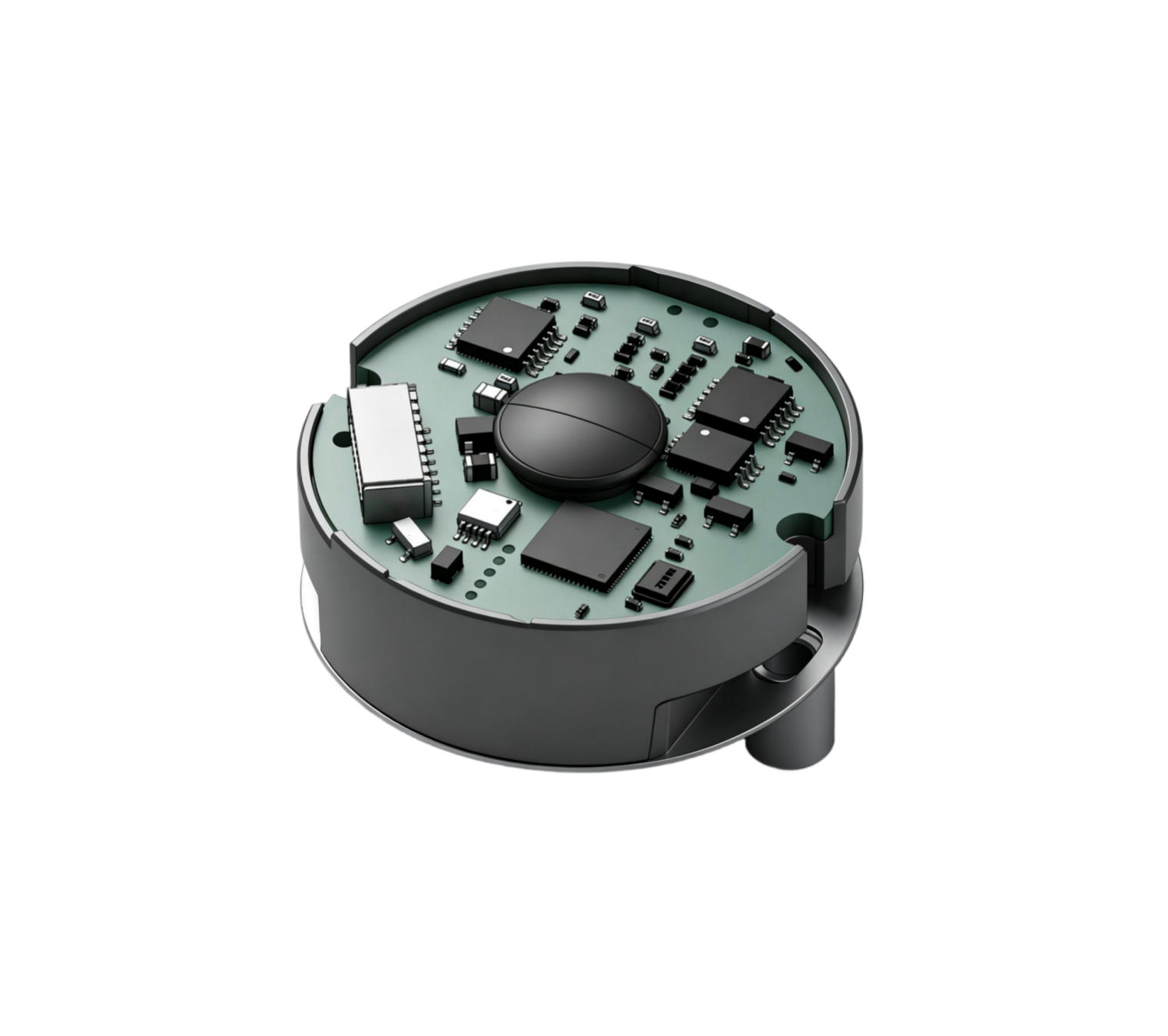

DVC35
Incremental Optical Encoder
Incremental Optical Encoder OD35mm
Specification parameters
| Model | DVC35T6 |
| Outer Diameter | ∅35mm |
| Shaft Diameter | ∅6mm |
| Supply Voltage | 5V±0.25 |
| Electrical Output type | Sine-Cosine Output |
| Resolution | 1024ppr；2048ppr |
| Output Signals | A: A - phase single - channel output |
| B: Two - channel output with 90° phase difference | |
| M: Zero Position Signal | |
| Universal Rotating Speed | 8000rpm |
| Breaking Strength of Shaft and Bearing | ≥650N |
