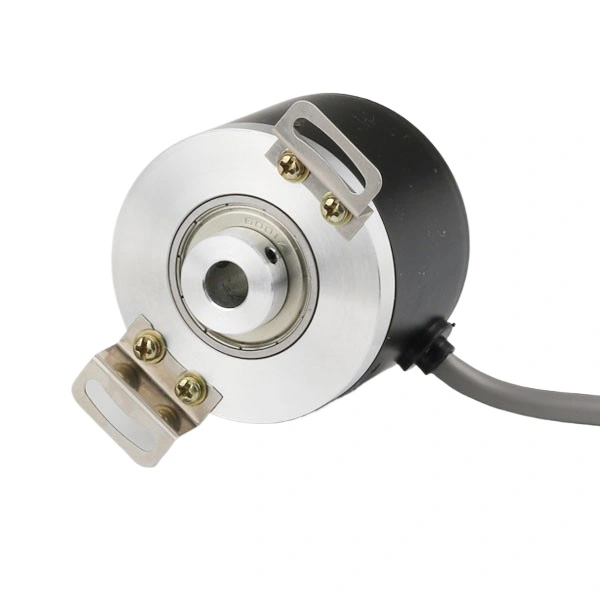

RCC50T
Hollow Shaft Encoder
RCC50T is widely used in automatic control, automatic measurement, remote control,computer technology.
Resolution up to 6000ppr, others on request.Optoelectronic devices with high reliability, long life, strong anti-interference ability, wide range of operating temperature.
Specification parameters
| Model | RCC50T10 |
| Product Type | Hollow Through Shaft Rotary Incremental Encoder |
| Outer Diameter | 50mm |
| Shaft Diameter | 10mm |
| Resolution | 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000, 6000 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 50N/30N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP54 |
