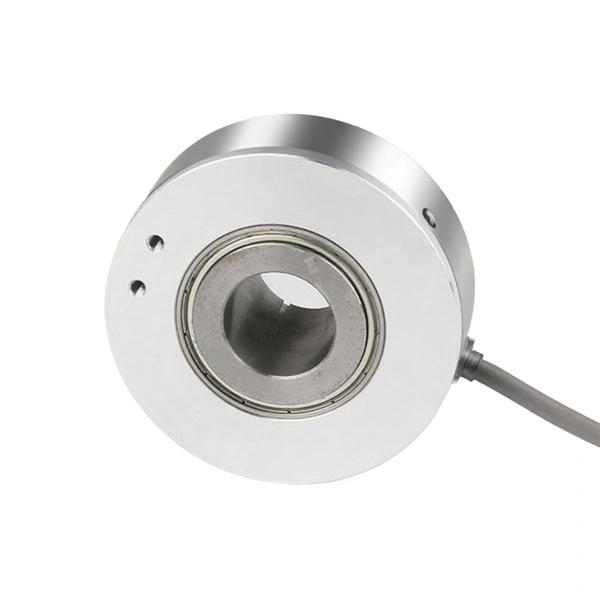

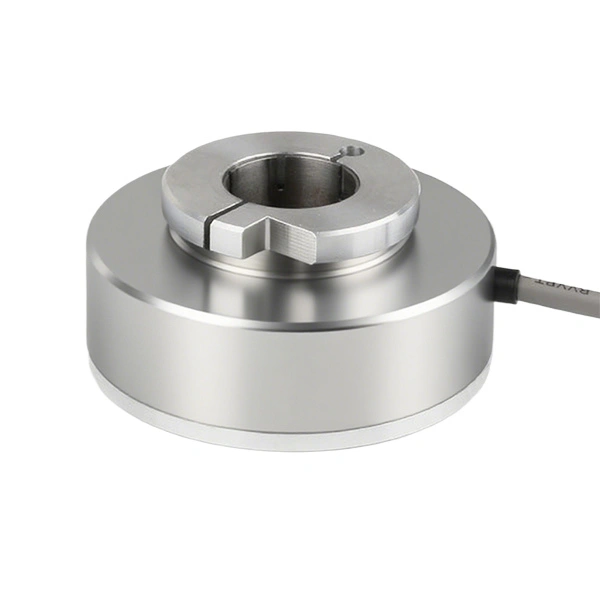

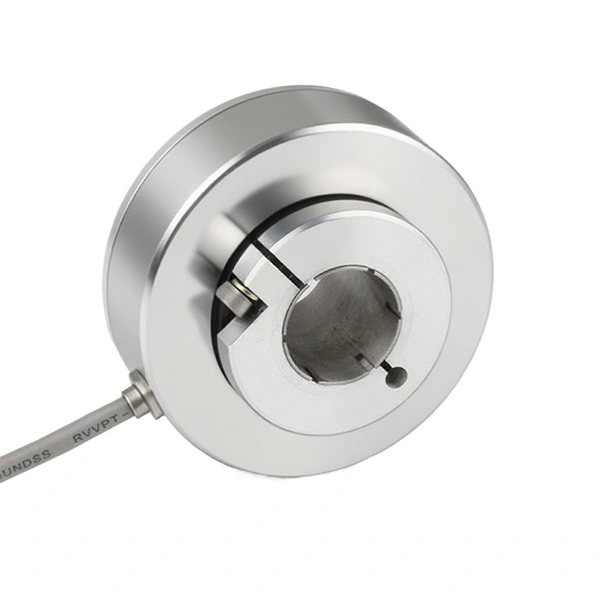

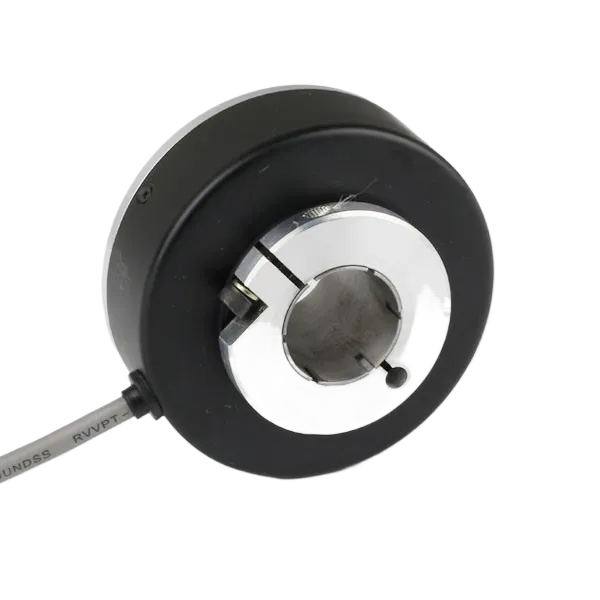

REC80B
Hollow Shaft Encoder
REC80B is ultra-thin design to save space.Multiple mounting brackets are available for easy installation.
Wide through hollow shaft from 18mm to 30mm. Widely used for elevators, light industrial machinery, displacement and speed measurement.Imorted optoelectronic devices with high reliability, long life, strong anti-interference ability, wide range of operating temperature.
Specification parameters
| Model | REC80B30; DEC80B30 |
| Product Type | Clamp Hollow Shaft Rotary Incremental Encoder |
| R: Common / D: Reinforced | |
| Outer Diameter | 80mm |
| Shaft Diameter | 18-30mm |
| Resolution | 100, 300, 500, 512, 600, 1000, 1024, 2000, 2500, 3000, 4096, 10800 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - Shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 4000r/min |
| Maximum Radial/Axial Load | 40N / 20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP52 |
