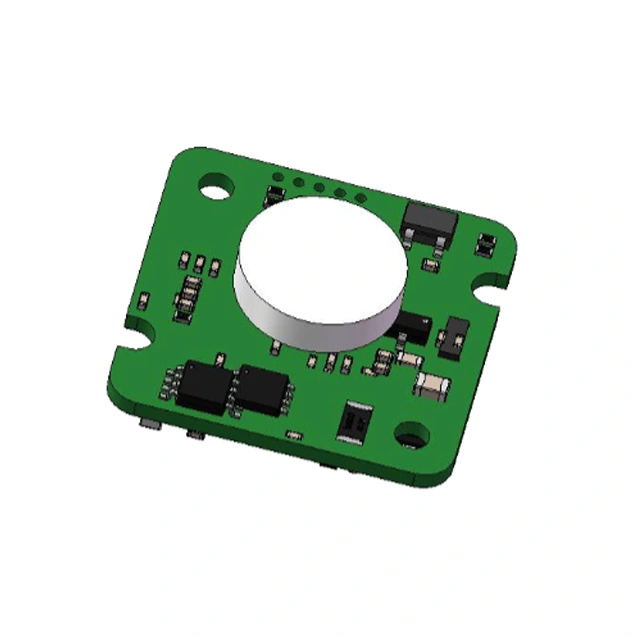

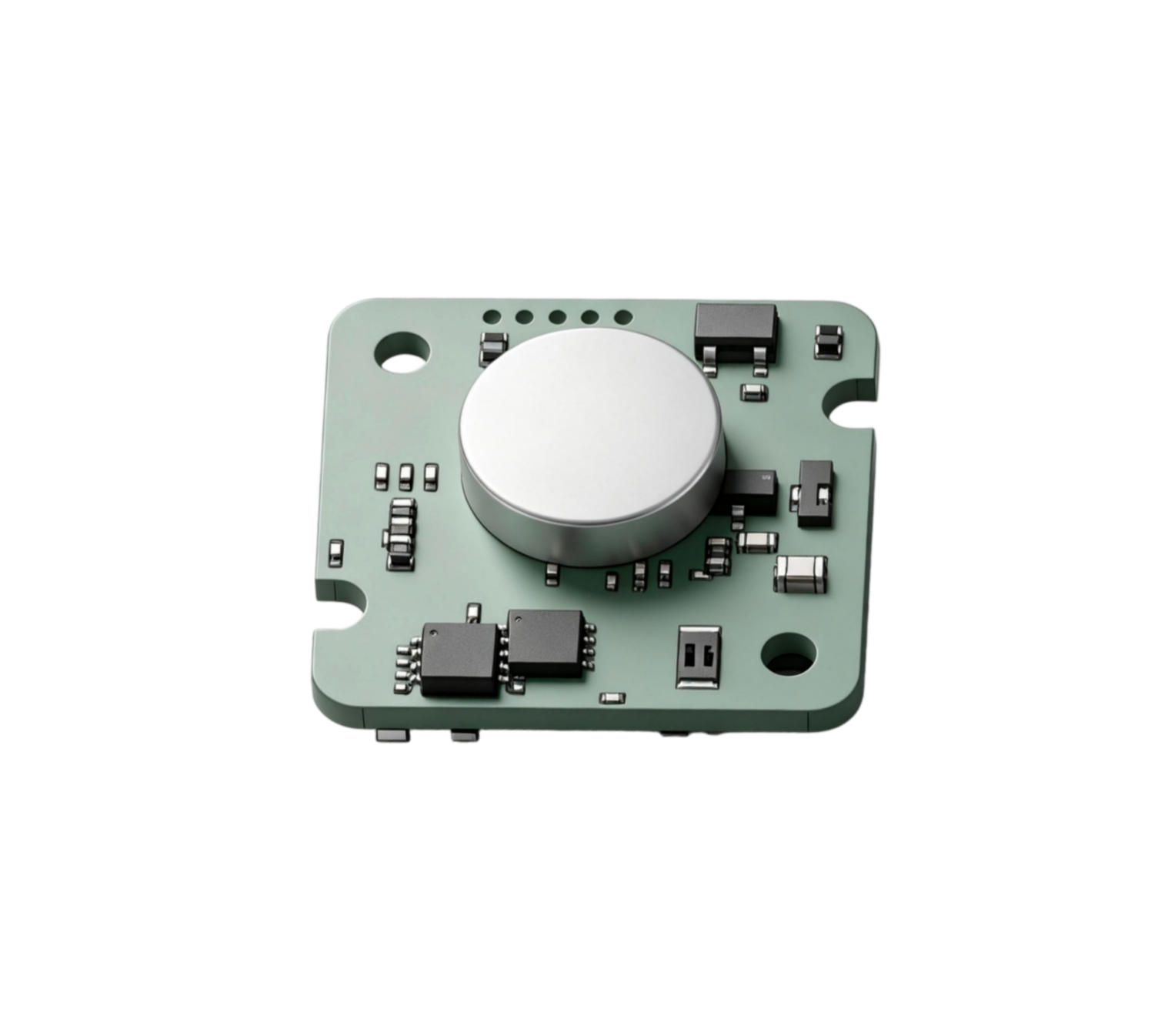

Split SAM20
Magnetic encoder
Split Absolute Magnetoelectric Encoder
Specification parameters
| Model | SAM20 Absolute Value Magnetic-Electric Split-type |
| Dimensions | 20.9mm*20.9mm |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Communication Interface | RS485 |
| Baud rate | 2.5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication code system | Positive Logic Binary Code |
| Resolution-Single-turn | 17bit/23bit |
| Resolution-Multi-turn | 16bit |
| Operating Speed | ≤6000rpm |
