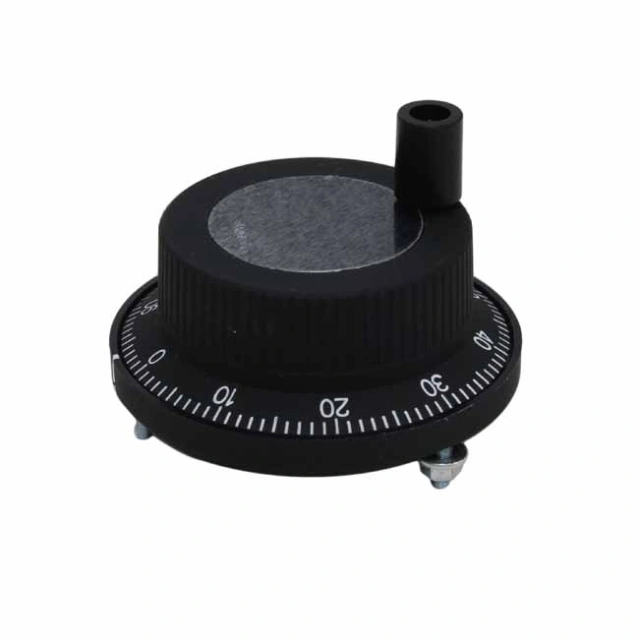

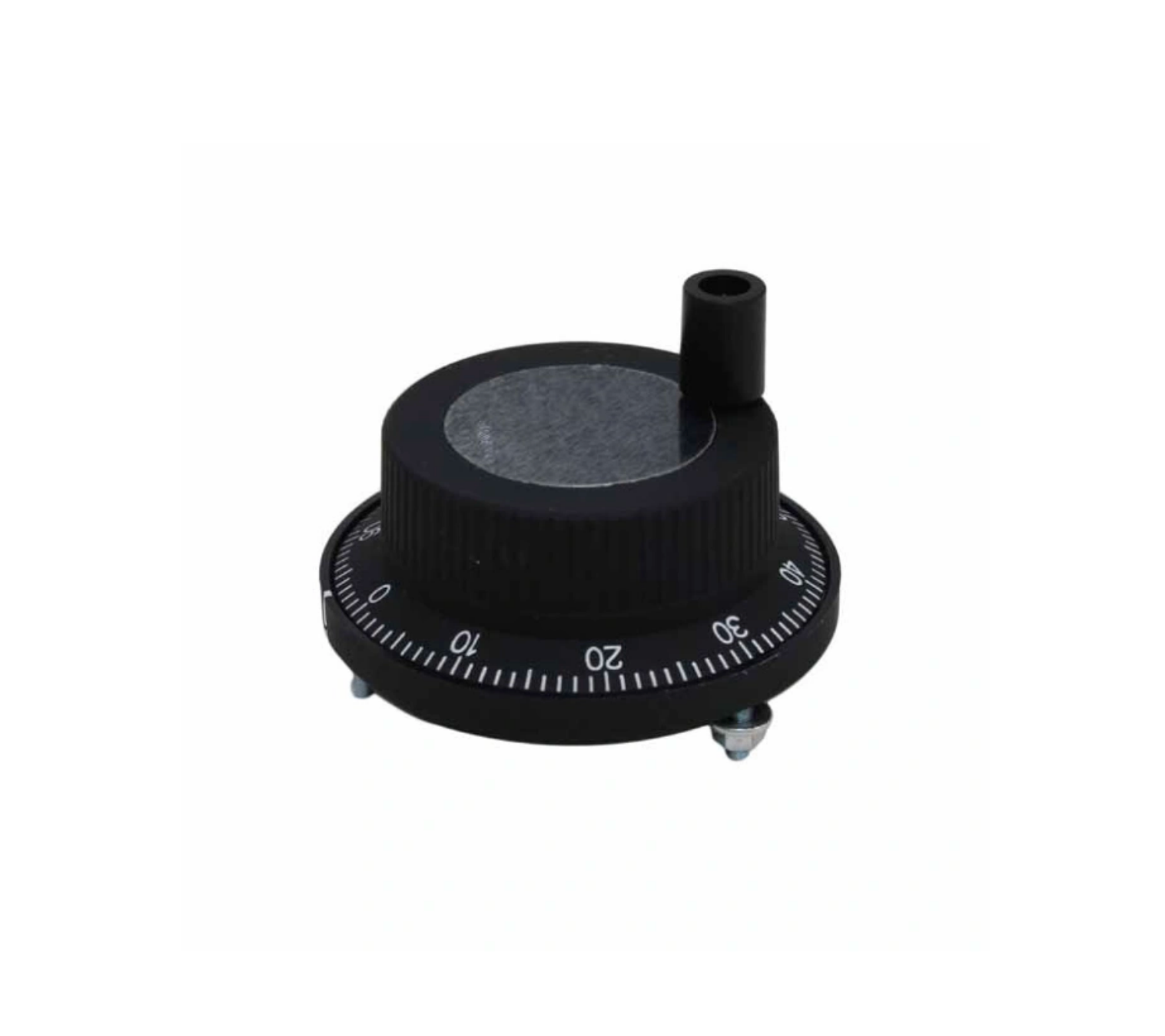

HWL60C
Hand Wheel
All-metal housing design, durable, high reliability.
The Hand Pulse Generator is an optical rotary encoder designed for the manual input of pulses for CNC machine tools, and is mainly used in CNC machine tools for the setting of the home position of taught CNC machines, the fine-tuning of stepping in manual mode, and the insertion of interruptions in the machining process.
Specification parameters
| Product Type | HWL60C |
| Model | HWL60B Silver Metal |
| HWL60C Black Plastic | |
| HWL60D Black Metal | |
| Supply Voltage | DC5V：DC8 - 26V |
| Output Circuit | Voltage Output |
| Push - pull | |
| Open Collector | |
| Line Driver | |
| Wide Voltage Line Driver | |
| Resolution | 25ppr、100ppr |
| Signal | 90° phase different, A & B signals output |
