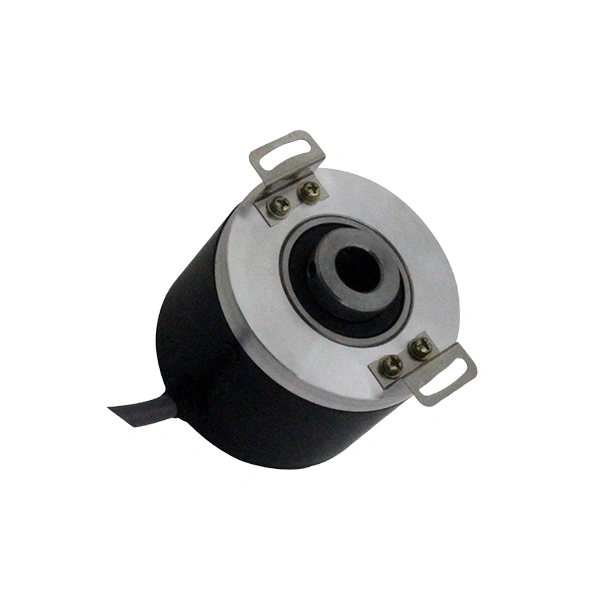

RCC58H
Blind Hole Encoder
RCC58H is widely applied to kinds of machinery and photoelectric light industry control industry.
Multiple output signals are available, resolution up to 6000ppr,others on request.Optoelectronic devices with high reliability, long life, strong anti-interference ability, wide range of operating temperature.
Specification parameters
| Model | RCC58H6 |
| Product Type | Semi - hollow Shaft Incremental Encoder |
| Outer Diameter | 58mm |
| Shaft Diameter | 6mm; 8mm; 10mm; 12mm; 14mm; 15mm |
| Resolution | 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000, 6000 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Line Driver Output | |
| Wide - voltage Line Driver Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 30N/20N |
| Operating Temperature | -20～85℃ |
| Protection Rating | IP54 |
