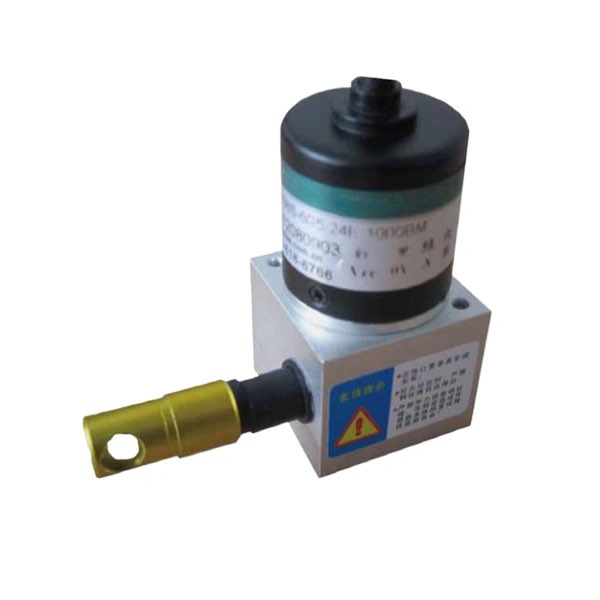

RLC28D
Digital Output
Incremental encoder and absolute encoder are optional for the digital signal output type. Output signals are square wave ABZ signals or Gray code signals.
Measurement range is up to 400mm. Linear accuracy: 0.05% FS. Resolution based on the different configuration can reach 0.001mm pulse in maximum. Working temperature: -30 ° C-+90 ° C.

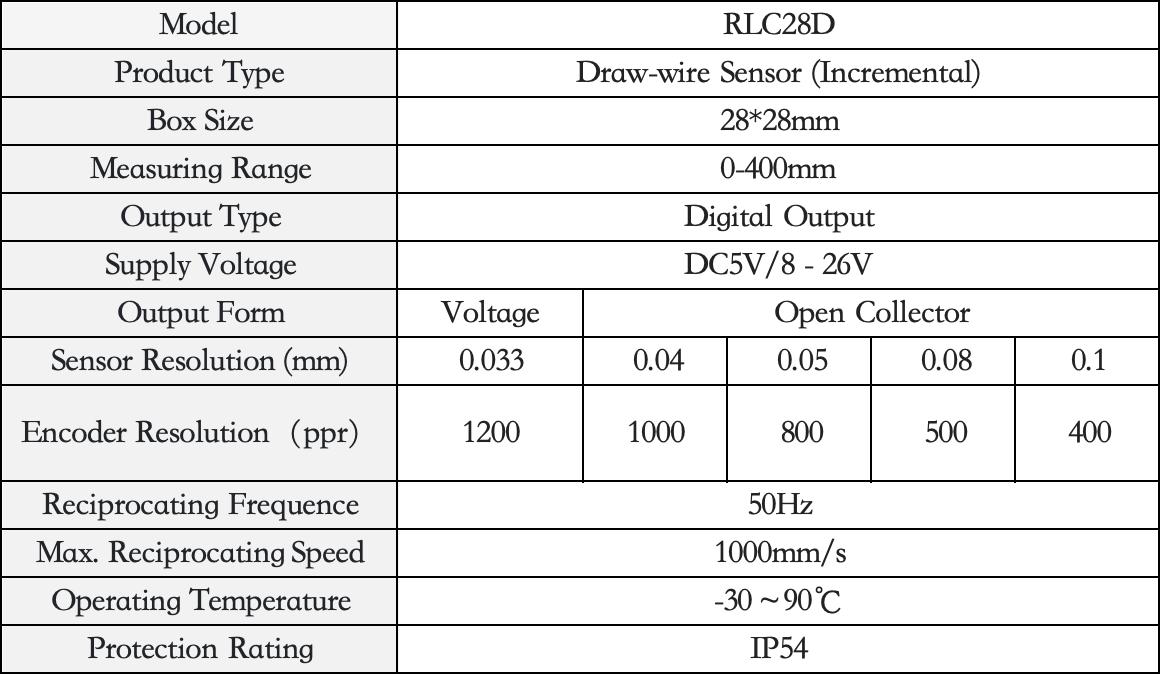

Specification parameters
| Model | RLC28D | ||||
| Product Type | Draw-wire Sensor (Incremental) | ||||
| Box Size | 28*28mm | ||||
| Measuring Range | 0-400mm | ||||
| Output Type | Digital Output | ||||
| Supply Voltage | DC5V/8 - 26V | ||||
| Output Form | Voltage | Open Collector | |||
| Sensor Resolution (mm) | 0.033 | 0.04 | 0.05 | 0.08 | 0.1 |
| Encoder Resolution（ppr） | 1200 | 1000 | 800 | 500 | 400 |
| Reciprocating Frequence | 50Hz | ||||
| Max. Reciprocating Speed | 1000mm/s | ||||
| Operating Temperature | -30～90℃ | ||||
| Protection Rating | IP54 | ||||
