RSC

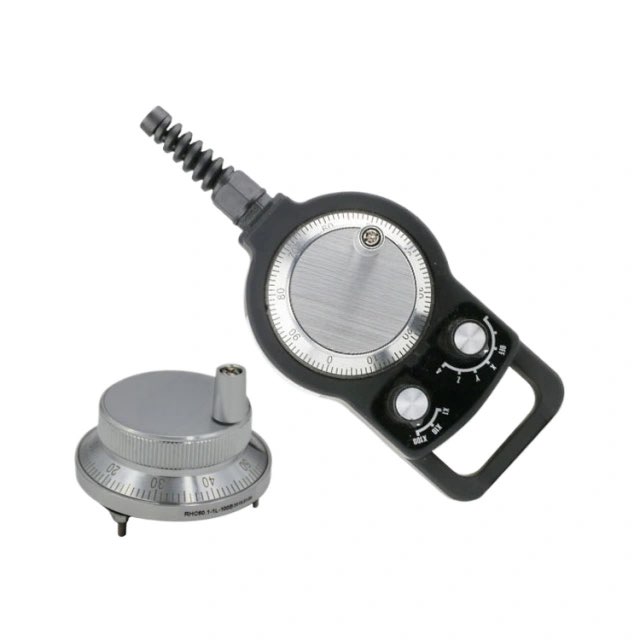

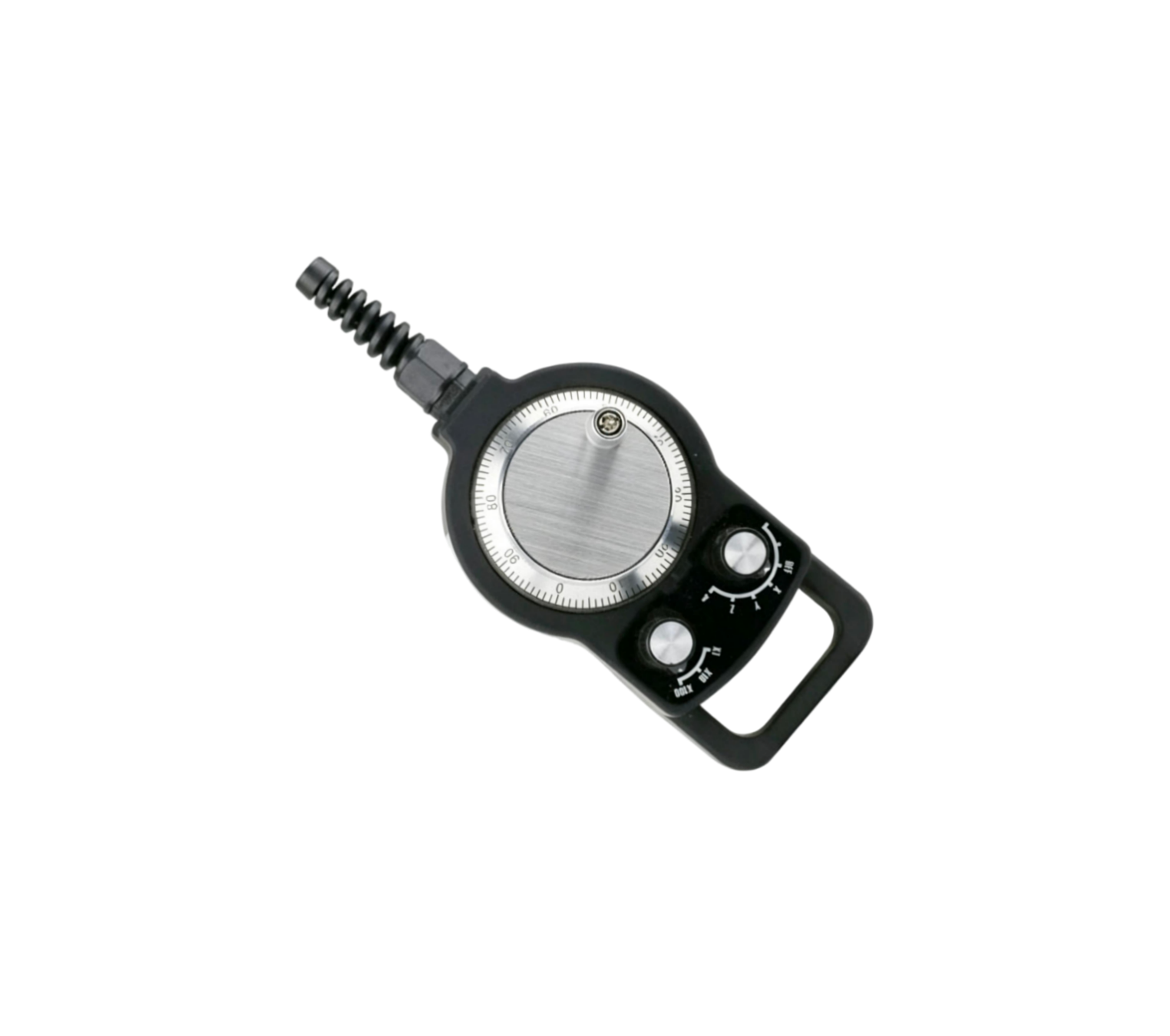

Manual Pulse Generator
Compact design, easy to move.All-plastic housing, anti-oil,sealed.
Housing with hook and magnet.Standard spiral cable 3M.Widely used in CNC machine tools.
Specification parameters
| Product Type | RSC |
| Axis No. | 4 Axis |
| Resolution Switch | Optional |
| Spiral Cable | Standard 3M |
| Supply Voltage | DC5V：DC8 - 26V |
| Output Circuit | Voltage Output |
| Push - pull | |
| Open Collector | |
| Line Driver | |
| Wide Voltage Line Driver | |
| Resolution | 25ppr、100ppr |
| Signal | 90° phase different, A & B signals output |
