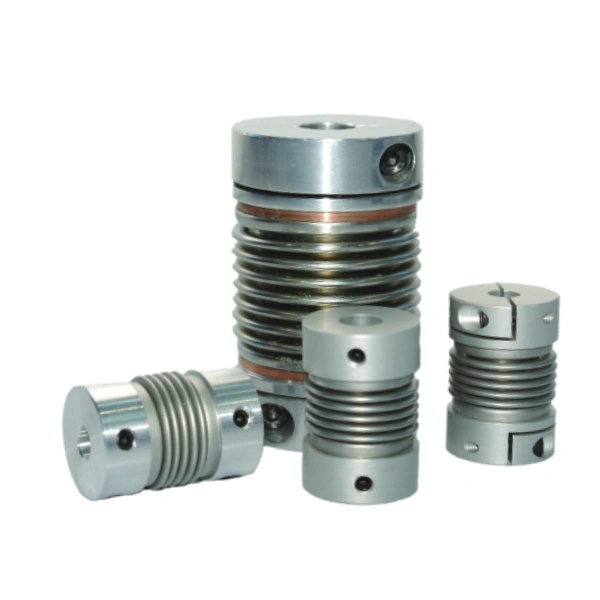

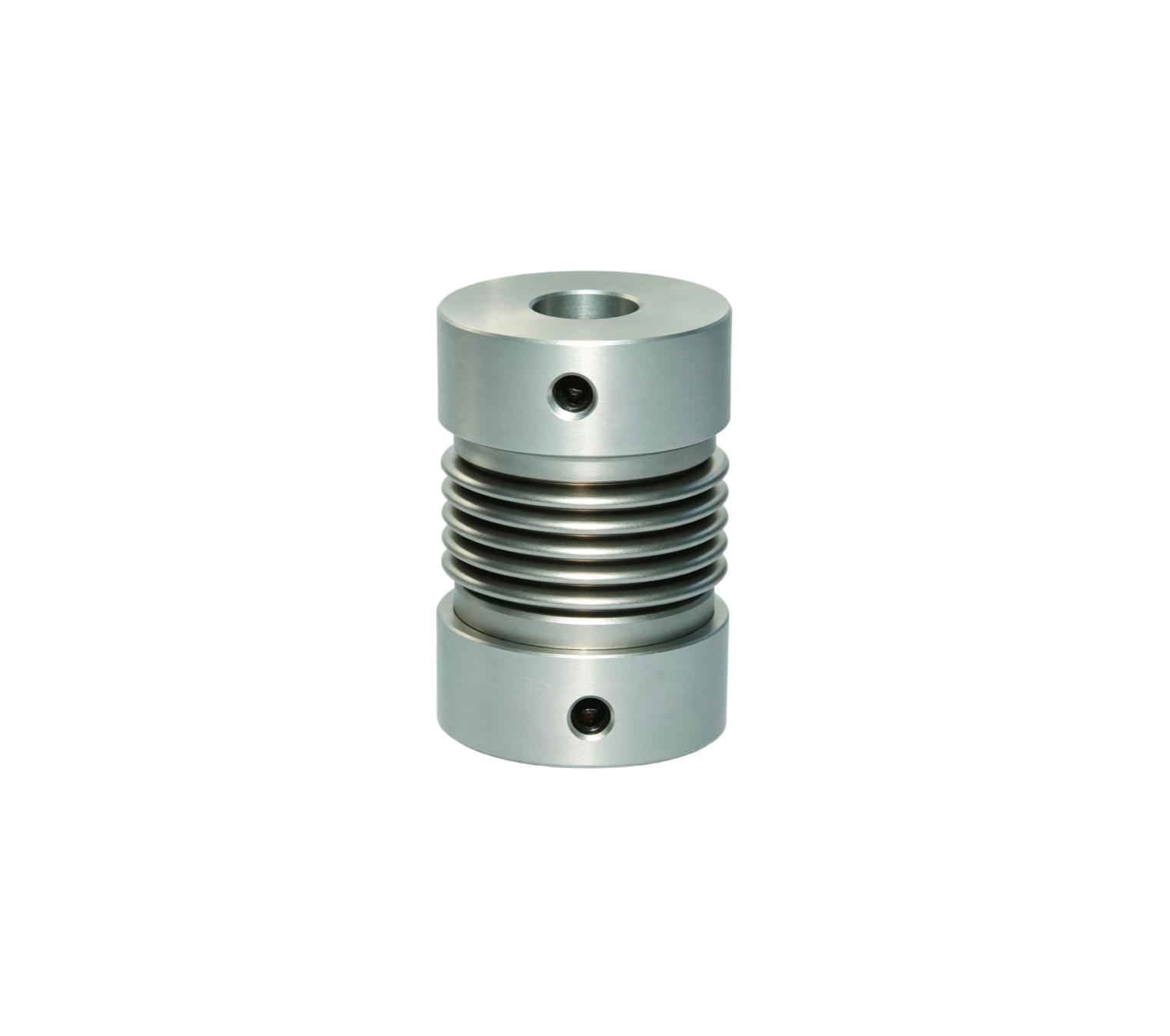

Coupling RD3-A
High precision incremental encoder with customizable design, reliable signal output, durable performance, and flexible solutions for industrial automation, CNC machines, and motion control applications.
Specification parameters
| Single-wall Bellows Coupling | |||||
| Model | Flange OD (mm) | Shaft Dia Range (mm) | Total Length (mm) | Max Torque (N·m) | Max Speed (min⁻¹) |
| RD3 - 16AS | 16 | 4～8 | 26.5 | 2 | 39000 |
| RD3 - 20AS | 20 | 5～10 | 32 | 3 | 31000 |
| RD3 - 25AS | 25 | 6～12 | 36.5 | 4 | 25000 |
| RD3 - 32AS | 32 | 6～14 | 42 | 6 | 19000 |
| RD3 - 12AC | 12 | 4～5 | 23.5 | 1 | 52000 |
| RD3 - 16AC | 16 | 5～6 | 26.5 | 2 | 39000 |
| RD3 - 20AC | 20 | 6～8 | 32 | 3 | 31000 |
| RD3 - 25AC | 25 | 8～10 | 36.5 | 4 | 25000 |
| RD3 - 32AC | 32 | 8～14 | 42 | 6 | 19000 |
