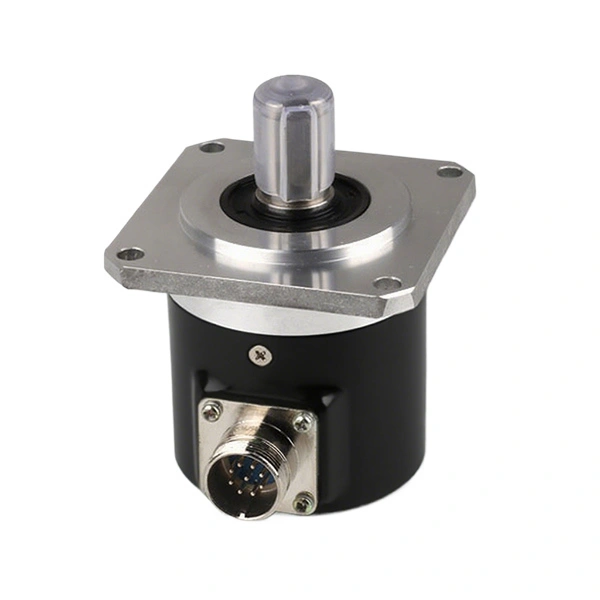

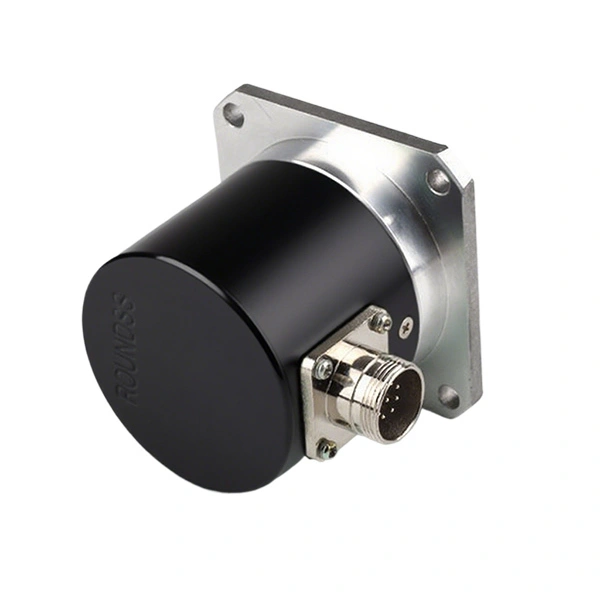

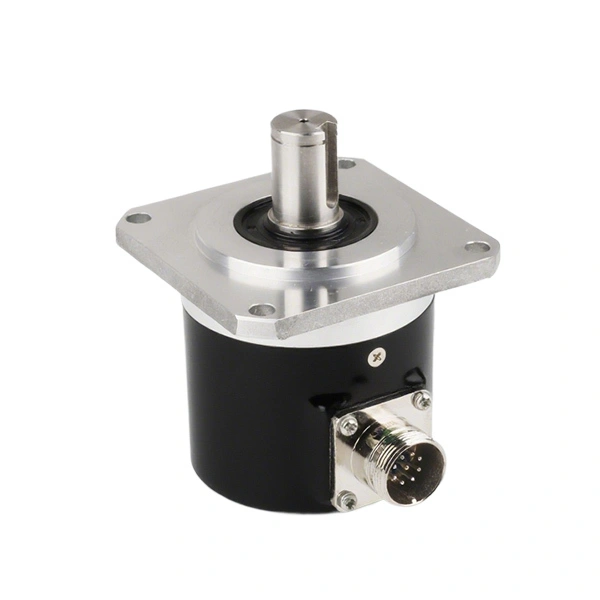

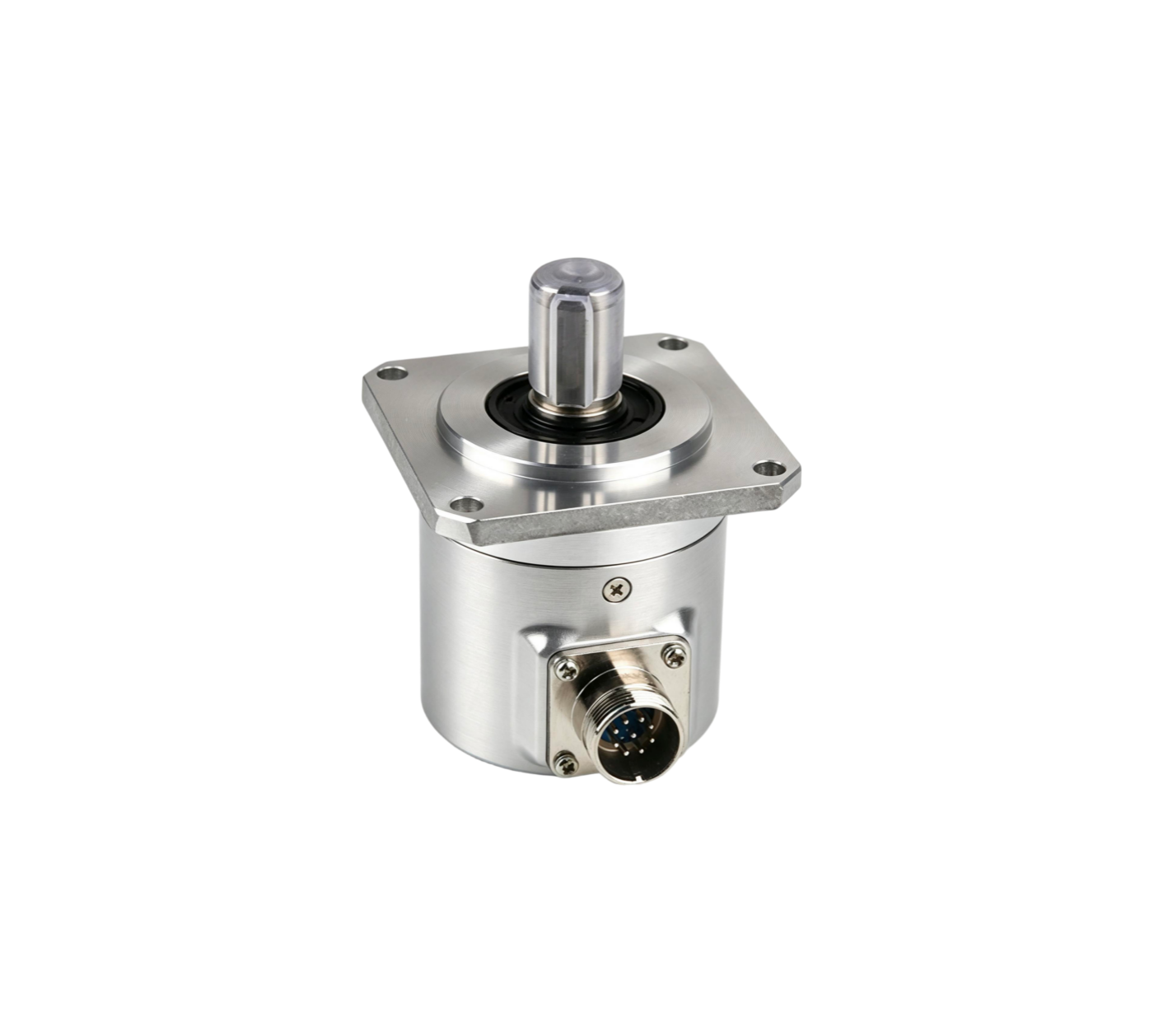

RTC58S15
Solid Shaft Encoder
RTC58S15 is widely applied to kinds of machinery and photoelectric light industry control industry.
Multiple output signals are available, resolution up to 6000ppr,others on request.Optoelectronic devices with high reliability, long life, strong anti-interference ability, wide range of operating temperature.
Specification parameters
| Product Type | Solid-shaft Incremental Encoder |
| RTC: Mainly for machine tool spindle series | |
| DTC: Reinforced | |
| Outer Diameter | 58mm |
| Shaft Diameter | 15mm（Solid Shaft） |
| Resolution | 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 4000, 5000, 6000 (Customizable) |
| Supply Voltage | DC5V; DC8-26V;DC10-30V; DC12V |
| Output Form | Voltage Output |
| Complementary Output | |
| Open - collector Output | |
| Long - line Drive Output | |
| Wide - voltage Long - line Output | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 40N/30N |
| Operating Temperature | -20～85℃ |
