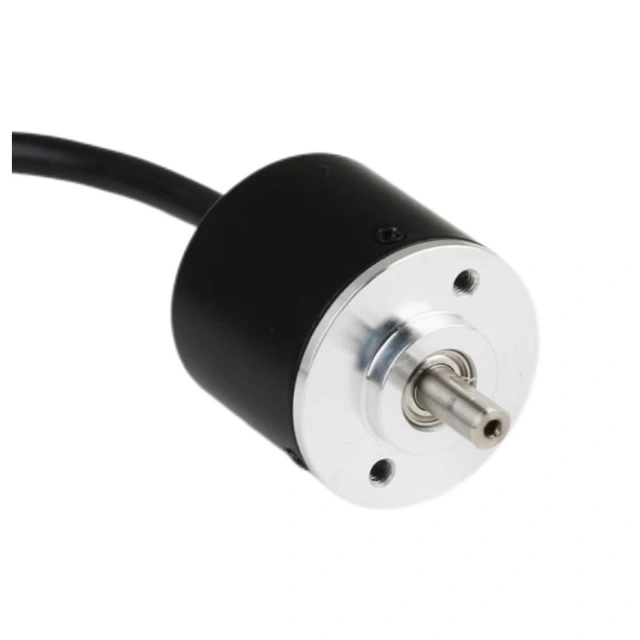

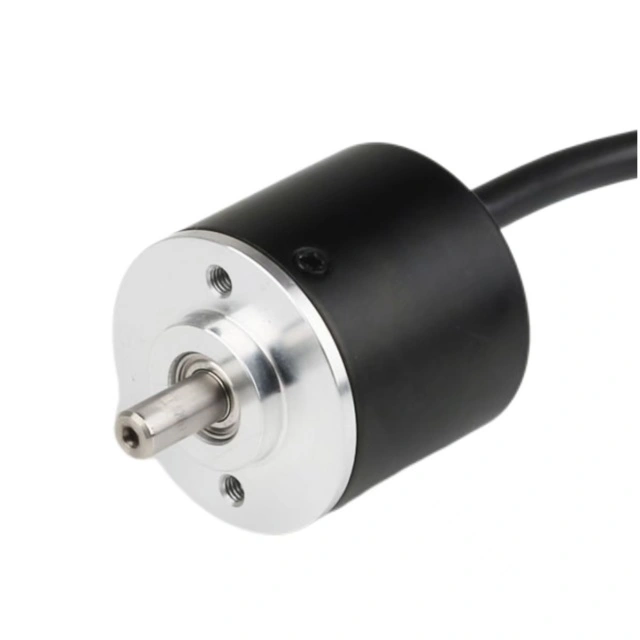

RCC30S
Solid Shaft Encoder
The RCC30S is widely used in automatic control, automatic measurement
• As a sensor for measuring corner and speed.
• Small size, light weight, excellent performance, suitable for narrow space applications.
• Compact size and resolution up to 1200 pulses.
Specification parameters
| Model | RCC30S4; DCC30S4 |
| Product Type | Solid-shaft Incremental Encoder |
| RCC: Common / DCC: Reinforced | |
| Outer Diameter | 30mm |
| Shaft Diameter | 4mm（Solid Shaft） |
| Resolution | 20, 36, 60, 100, 200, 300, 360, 400, 500, 600, 800, 1000, 1024, 1200 (Customizable) |
| Supply Voltage | DC5V; DC8-26V |
| Output Form | Voltage Output |
| Open Collector | |
| Output Signal | Output of Phase A (one - way) |
| 90° Phase - shifted A & B Signals | |
| Z signal | |
| Maximum Speed | 6000r/min |
| Maximum Radial/Axial Load | 15N/10N |
| Operating Temperature | -20～85℃ |
| Protection Rating | RCC: IP54 / DCC: IP65 |
