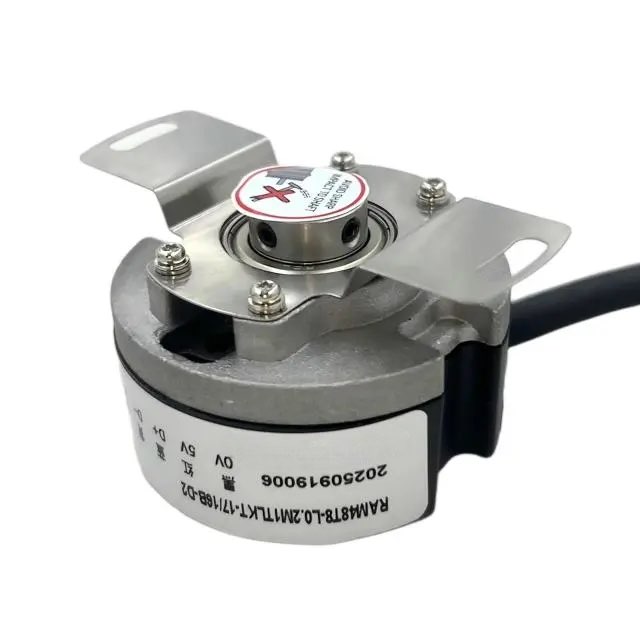

Intergrated RAM48
Absolute Magnetic Encoder
Integrated Absolute Magnetoelectric Encoder OD48mm
Specification parameters
| Model | RAM48 Absolute Magnetic-Electric Integrated Encoder |
| Outer Diameter | ∅48mm |
| Shaft Diameter | ∅6mm；∅8mm |
| Supply Voltage | 5V±0.25 |
| Battery Voltage | 3.6V |
| Plate Spring | Models A, B, C, D available (refer to the catalog) |
| Communication Interface | RS485 |
| Baud Rate | 2.5MHz (Optional for Mass Production) |
| Update Rate | 16K |
| Communication Protocol | Timed Transmission |
| Communication Code System | Positive Logic Binary Code |
| Resolution-Single-Turn | 17bit |
| Resolution-Multi-Turn | 16bit |
| Operating Speed | Default: 6000rpm; High Speed (8000rpm) |
